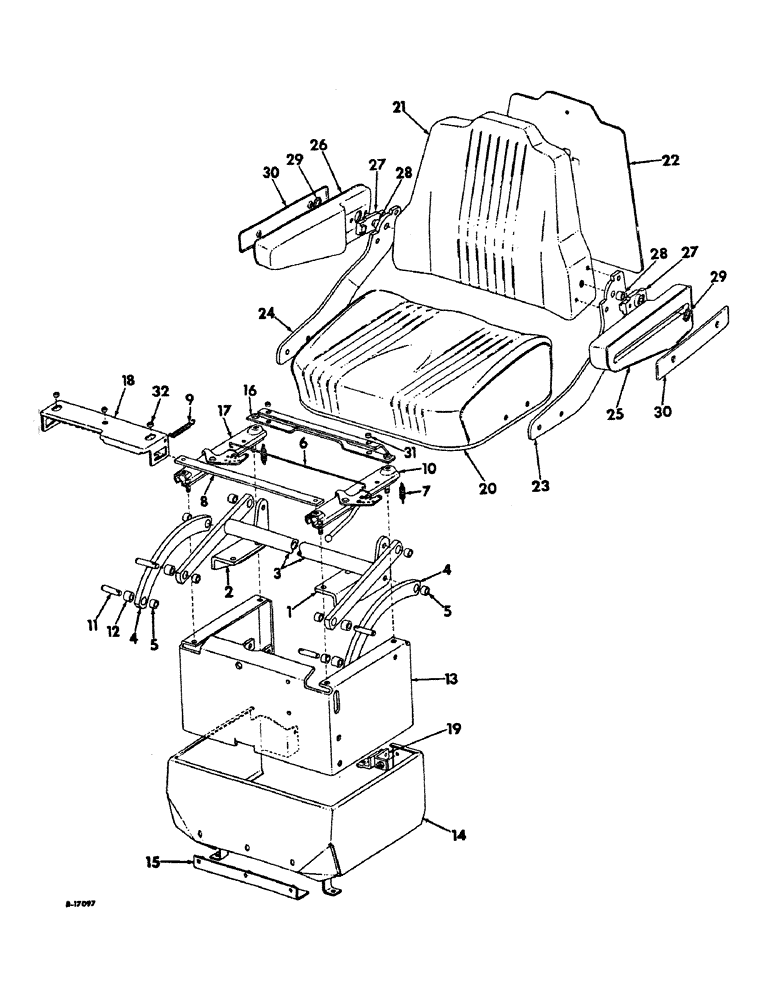

Запчасти Case IH 21456 (13-12) - SUPERSTRUCTURE, HYDRAULIC SEAT ATTACHMENT (05) - SUPERSTRUCTURE

399209R94

SEAT ASSY, includes ref nos 6 thru 10, 16, 17, 18, 20 thru 32 & attaching hardware

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

399102R1

SUPPORT

ASSY, seat suspension LH, order seat suspension assy 535200R92, Farmall tractors, Serial Range: -13436

1шт.

1

399102R1

SUPPORT

ASSY, seat suspension LH, order seat suspension assy 535200R92, International tractors, Serial Range: -10209

1шт.

1

534388R1

SUPPORT

ASSY, seat suspension LH, Farmall tractors, Start Serial: 13437

1шт.

1

534388R1

SUPPORT

ASSY, seat suspension LH, International tractors, Start Serial: 10210

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

2

399103R2

SUPPORT

ASSY, seat suspension RH, order seat suspension assy 535200R92, Farmall tractors, Serial Range: -13436

1шт.

2

399103R2

SUPPORT

ASSY, seat suspension RH, order seat suspension assy 535200R92, International tractors, Serial Range: -10209

1шт.

2

534389R1

SUPPORT

ASSY, seat suspension RH, Farmall tractors, Start Serial: 13437

1шт.

2

534389R1

SUPPORT

ASSY, seat suspension RH, International tractors, Start Serial: 10210

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

3

399104R91

LINK

ASSY, upper seat, order seat suspension assy 535200R92, Farmall tractors, Serial Range: -13436

1шт.

3

399104R91

LINK

ASSY, upper seat, order seat suspension assy 535200R92, International tractors, Serial Range: -10209

1шт.

399109R1

AXLE PIN

BOLT, shoulder rear pivot

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga

4шт.

3

534393R92

LINK

ASSY, upper seat, Farmall tractors, Start Serial: 13437

1шт.

3

534393R92

LINK

ASSY, upper seat, International tractors, Start Serial: 10210

1шт.

4

399108R11

SUPPORT

BAR ASSY, lower seat linkage, order seat suspension assy 535200R92, Farmall tractors, Serial Range: -13436

2шт.

4

399108R11

SUPPORT

BAR ASSY, lower seat linkage, order seat suspension assy 535200R92, International tractors, Serial Range: -10209

2шт.

4

534399R1

BAR

ASSY, lower seat linkage, Farmall tractors, Start Serial: 13437

2шт.

4

534399R1

BAR

ASSY, lower seat linkage, International tractors, Start Serial: 10210

2шт.

5

399105R1

BUSHING

seat linkage bar, Farmall tractors, Serial Range: -13436

8шт.

5

399105R1

BUSHING

seat linkage bar, International tractors, Serial Range: -10209

8шт.

5

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar, Farmall tractors, Start Serial: 13437

8шт.

5

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar, International tractors, Start Serial: 10210

8шт.

6

400706R1

ELECTRICAL WIRE

WIRE, slide rail latch

1шт.

7

398176R1

SPRING

latch

2шт.

120376

NUT,5/16"-18, G5

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

557265R1

WASHER

11/32 x 1 x 11 ga

4шт.

8

400703R1

STRAP, front

1шт.

9

400702R1

SPRING

rack

1шт.

10

400704R91

RAIL

ASSY, slide LH

1шт.

11

399110R1

PIVOT PIN

PIN ASSY, front pivot, Farmall tractors, Serial Range: -13436

4шт.

11

399110R1

PIVOT PIN

PIN ASSY, front pivot, International tractors, Serial Range: -10209

4шт.

11

534402R1

PIN

ASSY, front pivot, Farmall tractors, Start Serial: 13437

4шт.

11

534402R1

PIN

ASSY, front pivot, International tractors, Start Serial: 10210

4шт.

12

PO21886

SPACER

front pivot pin, Farmall tractors, Serial Range: -13436

4шт.

12

PO21886

SPACER

front pivot pin, International tractors, Serial Range: -10209

4шт.

365401R1

PIN

1/4 x 1 light coiled spring

4шт.

13

399111R1

SUPPORT

ASSY, seat, order seat suspension assy 535200R92, Farmall tractors, Serial Range: -13436

1шт.

13

399111R1

SUPPORT

ASSY, seat, order seat suspension assy 535200R92, International tractors, Serial Range: -10209

1шт.

13

534405R1

SUPPORT ASSY, seat, Farmall tractors, Start Serial: 13437

1шт.

13

534405R1

SUPPORT ASSY, seat, International tractors, Start Serial: 10210

1шт.

381829R1

NUT

5/16-18 lock

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

535449R2

SHROUD ASSY, seat support, replaces 399115R1, also order two spacers 665434R1

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 hex-hd cap

2шт.

665434R1

SPACER, 1/2 x .938 std pipe

2шт.

15

399118R1

ANGLE ASSY, shroud support

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

3шт.

180074

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

SCREW, 5/16-18 x 9/16 C-Z hex-hd cap

2шт.

16

400699R1

RISER

ASSY, rear

1шт.

17

400705R91

RAIL

ASSY, slide RH

1шт.

18

400701R1

RACK, tilt adjusting

1шт.

19

399120R1

BRACKET ASSY, seat support rear cover mounting

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

20

400688R2

CUSHION

ASSY, seat

1шт.

21

400689R3

CUSHION

ASSY, back

1шт.

22

400690R2

PLATE, back cover

1шт.

149924

SCREW, no. 10 x 5/8 cr-rec-rd-hd wood

8шт.

23

400691R2

SUPPORT, back rest LH

1шт.

24

400692R2

SUPPORT, back rest RH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

25

400693R1

COVER

CUSHION ASSY, side arm LH

1шт.

26

400694R1

COVER

CUSHION ASSY, side arm RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

400695R1

STOP

side arm

2шт.

28

400696R1

BUSHING

side arm pivot

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

178373R1

WASHER

17/32 x 1-1/16 x 16 ga C-Z

4шт.

29

400697R1

SPRING WASHER

spring

2шт.

30

400698R2

COVER

arm channel

2шт.

157441

SCREW, 1/4-20 x 7/8 C-Z cr-recov-hd mach

4шт.

31

400700R1

WASHER

1/2 x 5/16 x 5/32

2шт.

160684

SCREW,Cross Pan Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z cr-rec pan-hd mach

2шт.

32

400700R1

WASHER

1/2 x 5/16 x 5/32

3шт.

160684

SCREW,Cross Pan Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z cr-rec pan-hd mach

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

2754187R1

DECAL

PRODUCT GRAPHIC, hydraulic seat adjustment

1шт.

535200R92

SEAT

SUSPENSION ASSY, seat, composed of (2) bar assy 534399R1 (1) link assy 534393R92 (2) nut 381829R1 (4) pin assy 534402R1 (4) screw 180174 (1) support 534388R1 (1) support 534389R1 (1) support 534405R1 (4) washer 21796R1 (2) washer 103320 (4) washer 120384

1шт.
