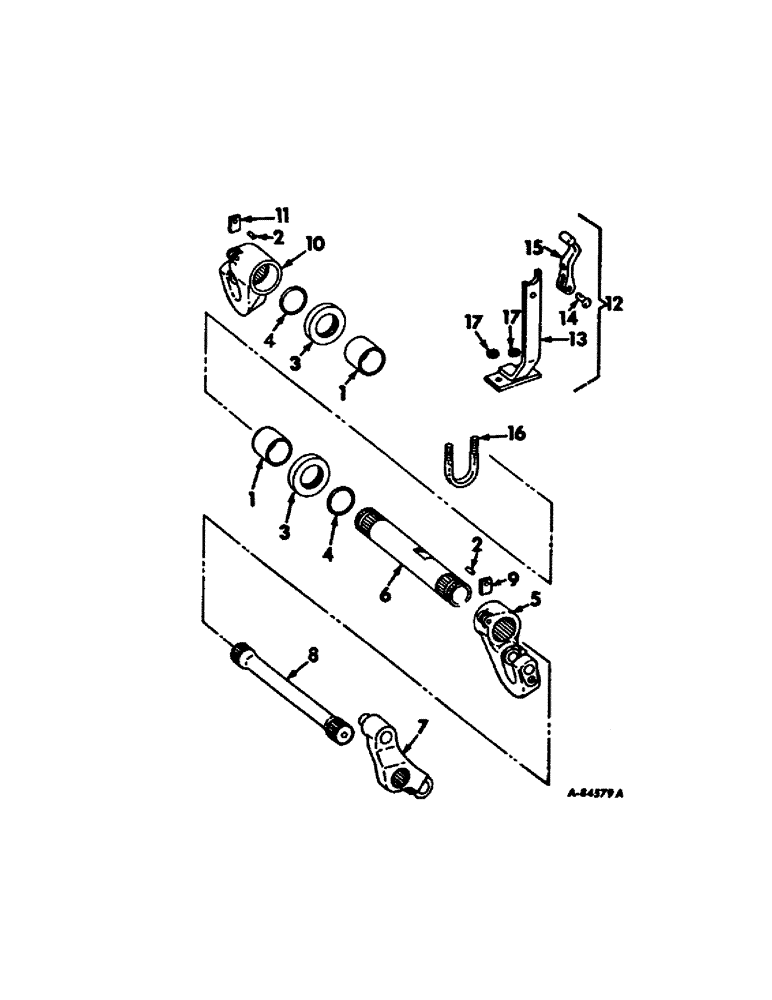

Запчасти Case IH 21456 (10-35) - HYDRAULICS, DRAFT SENSING (07) - HYDRAULICS

1

394889R91

BUSHING

ASSY, liner and case

2шт.

2

142510

GROOVED PIN,3/16" x 1 3/4", Type A

Pin, Grooved, 3/16" x 1 3/4", Type A

1шт.

3

392083R1

RETAINER

crank arm O-ring

2шт.

4

652226R1

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

2-7/8 x 3-1/4 x 3/16, crank arm O-ring retainer

2шт.

5

392084R2

ARM

ASSY, RH crank

1шт.

6

392085R3

SHAFT

crank arm

1шт.

7

392086R11

BRACKET

ASSY, torsion bar anchor

1шт.

273303

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

SCREW, 5/8-11 x 5-1/4 hex-hd cap

2шт.

8

392088R1

BAR

torsion spring

1шт.

9

394667R1

BLOCK

RH crank arm retainer

1шт.

142510

GROOVED PIN,3/16" x 1 3/4", Type A

Pin, Grooved, 3/16" x 1 3/4", Type A

1шт.

10

392090R2

ARM

LH crank

1шт.

11

394666R1

BLOCK

LH crank arm

1шт.

142510

GROOVED PIN,3/16" x 1 3/4", Type A

Pin, Grooved, 3/16" x 1 3/4", Type A

1шт.

12

392092R91

ARM

ASSY, sensing

1шт.

13

392093R91

ARM

ASSY, sensing lower

1шт.

14

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), , Extended prong 3/32" x 5/8"

1шт.

15

390118R1

ARM

sensing upper

1шт.

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

1шт.

109084

NUT,1/4"-20, G5

1шт.

16

392095R1

BOLT,3/8" - 16 x 3.28" W x 3.60" L

U-BOLT, sensing arm

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

398315R91

COVER ASSY

PARTS ACCESSORY, power beyond, for tractors equipped w/double axiliary hydraulic valve, order control valve 529910R92, if tractor is not already so equipped

1шт.
