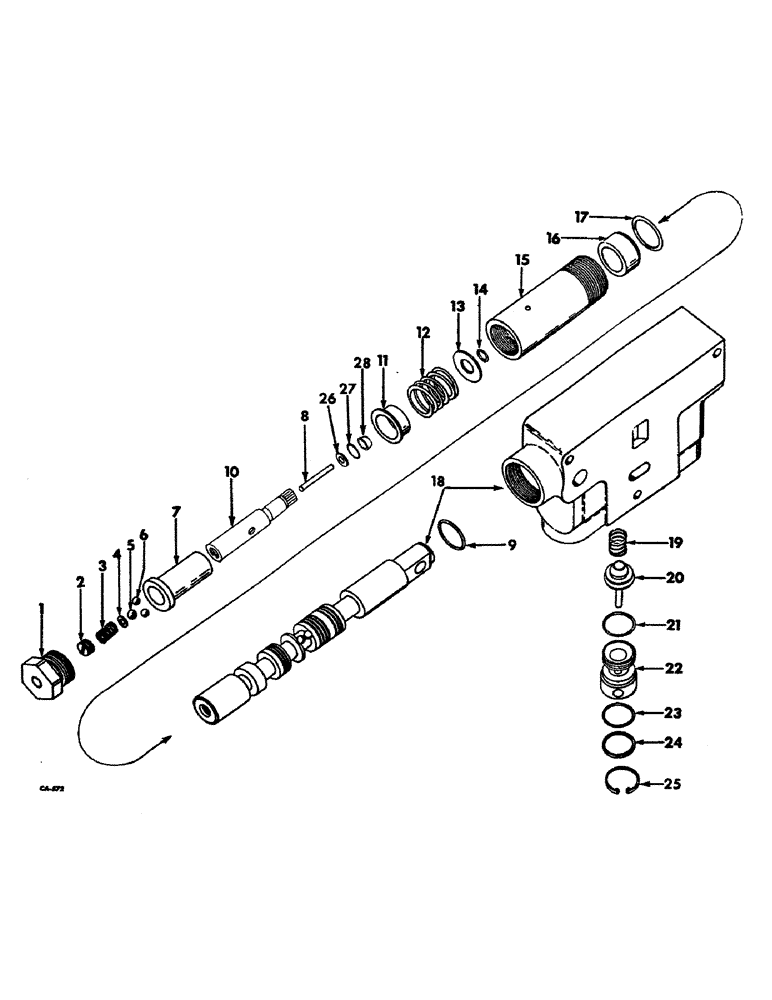

Запчасти Case IH 21456 (10-32) - HYDRAULICS, HYDRAULIC CONTROL VALVE (07) - HYDRAULICS

529911R92

CONTROL VALVE

VALVE ASSY, hydraulic control

1шт.

529910R92

CONTROL VALVE

VALVE ASSY, hydraulic control

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 steel button

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Dent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel, dent 1/4" Dia

1шт.

7

376426R2

SLEEVE

position control

1шт.

8

529905R1

PISTON

unlatching

1шт.

9

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8, S-treated, control valve spool upper

1шт.

10

529901R91

ACTUATOR

centering spring, also includes ref nos 26, 27 & 28

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R1

WASHER

centering spring thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Centering spring actuator

1шт.

15

395783R1

UNION

SLEEVE, cap retaining, also order retainer 395781R2

1шт.

16

395781R2

RETAINER

valve spool O-ring, also order sleeve 395783R1

1шт.

17

528249R1

O-RING

7/8 x 1-1/16 x 3/32, control valve spool lower

1шт.

18

390827R11

BODY ASSY, control valve, use with valve 529911R92

1шт.

18

383274R11

BODY ASSY, control valve, use with valve 529910R92

1шт.

19

395278R1

SPRING

back flow check poppet valve

1шт.

20

395277R1

VALVE

back flow check poppet, also order spring 395278R1

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, check poppet retainer inner

1шт.

22

383280R1

VALVE

RETAINER, valve back flow check poppet

1шт.

23

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check poppet retainer outer

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug O-ring back-up

1шт.

25

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , check poppet 1.188", Int, #118

1шт.

26

529903R1

WASHER

backup

1шт.

27

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 x 1/16, centering spring actuator

1шт.

28

529904R1

RETAINER

PLUG, actuator valve

1шт.
