Запчасти Case IH 21456 (10-15) - HYDRAULICS, POWER STEERING CYLINDER, INTERNATIONAL TRACTORS (07) - HYDRAULICS

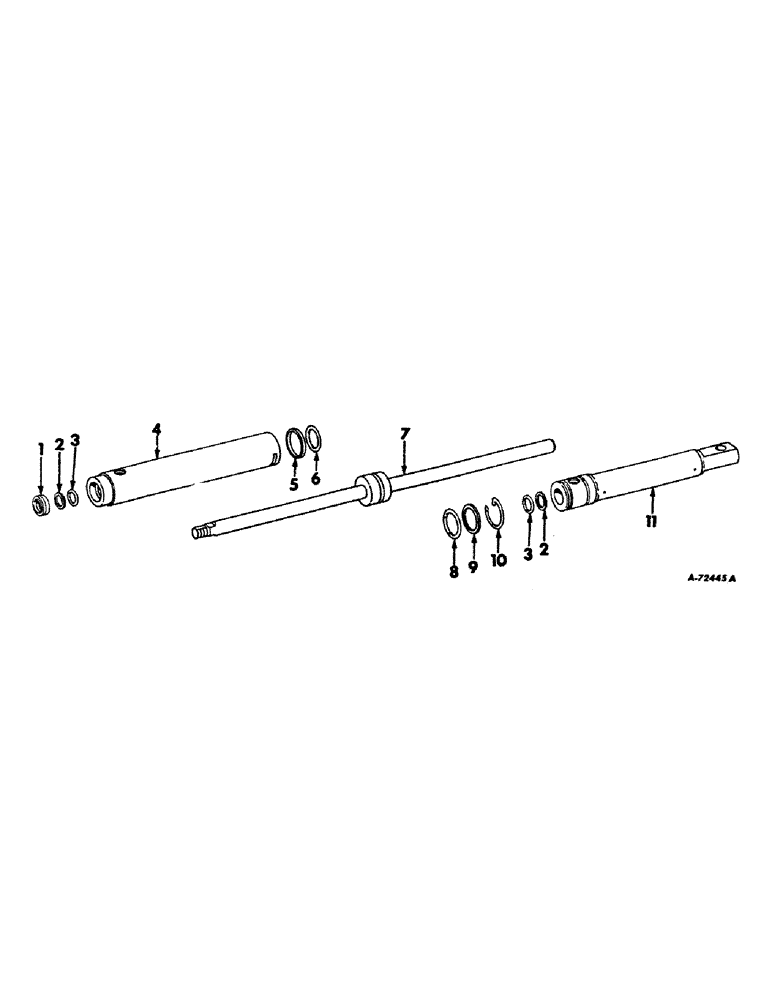

Схема запчастей Case IH 21456 - (10-15) - HYDRAULICS, POWER STEERING CYLINDER, INTERNATIONAL TRACTORS (07) - HYDRAULICS
7
5
3
2
10
1
3
6
4
2
9
11
8

Артикул

Название

Примечание

Количество

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering

1шт.

1

378587R91

OIL SEAL

scraper oil

1шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back-up

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, cylinder retainer

2шт.

4

395070R1

BODY ASSY, cylinder rear

1шт.

5

379959R1

RING,Square, 3.17mm Thk x 58mm ID

piston

1шт.

6

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32, piston

1шт.

7

380496R21

ROD

ASSY, piston

1шт.

8

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8, cylinder front head

1шт.

9

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

teflon back-up

1шт.

10

378740R1

CIRCLIP

RETAINER, cylinder end

1шт.

11

395069R1

HEAD ASSY, front

1шт.

386695R91

SEAL KIT

KIT, cylinder service, consists of ref nos. 1, 2, 3, 5, 6, 8 & 9

1шт.

Выбрано товаров: 13
