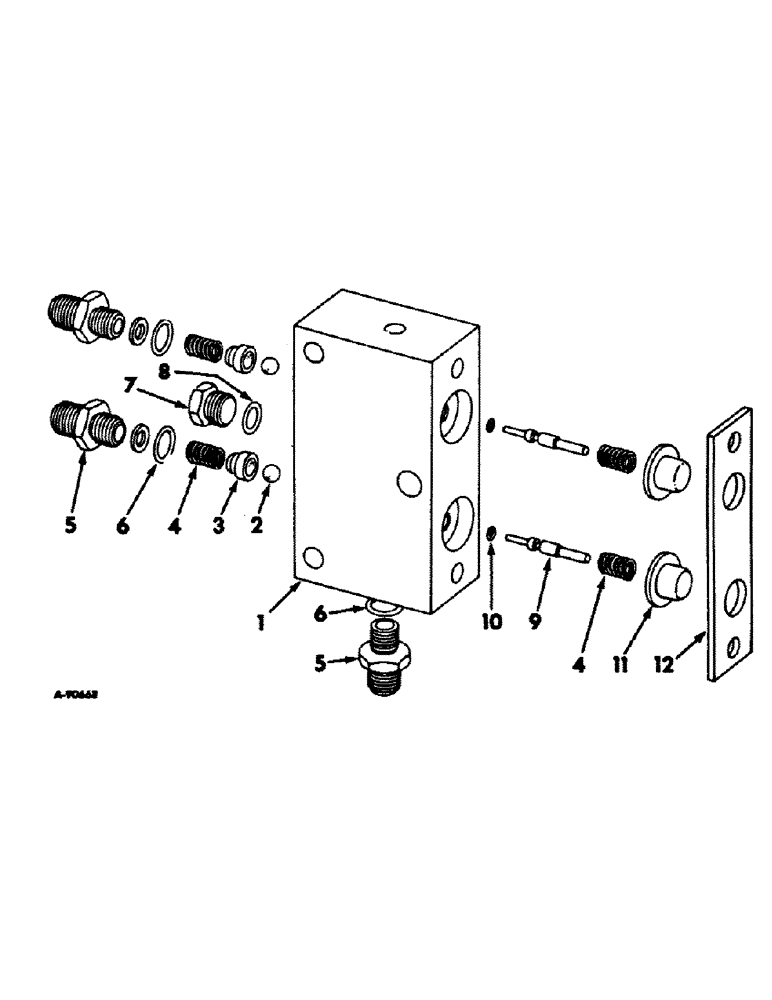

Запчасти Case IH 21256 (F-27) - HYDRAULIC SYSTEM, HYDRAULIC SEAT VALVE - 399088R92 (07) - HYDRAULIC SYSTEM

399088R91

SPARE PART

VALVE ASSY, hyd seat control

1шт.

1

399389R1

BODY ASSY, seat adjustment

1шт.

2

17007R1

BALL

7/32 cr-stl check

2шт.

3

399391R1

RETAINER

ball

2шт.

4

399392R1

SPRING

check ball

4шт.

104562

WASHER, 11/64 x 1/2 x .048

2шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared, tube short swivel valve body

3шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, valve body connector

3шт.

7

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 str, thd, o-ring boss

1шт.

8

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube, Valve body plug

1шт.

9

399393R1

NO LONGER SERVICED

PISTON, seat valve

2шт.

10

399394R1

O-RING,0.551" ID x 0.07" Width

1/16 x 3/16 x 1/16 seat valve piston

2шт.

11

399395R1

CAP

seat valve piston

2шт.

12

399396R1

BAR

seat valve piston

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, 1/4-28 x 3/8 hex-hd cap

2шт.
