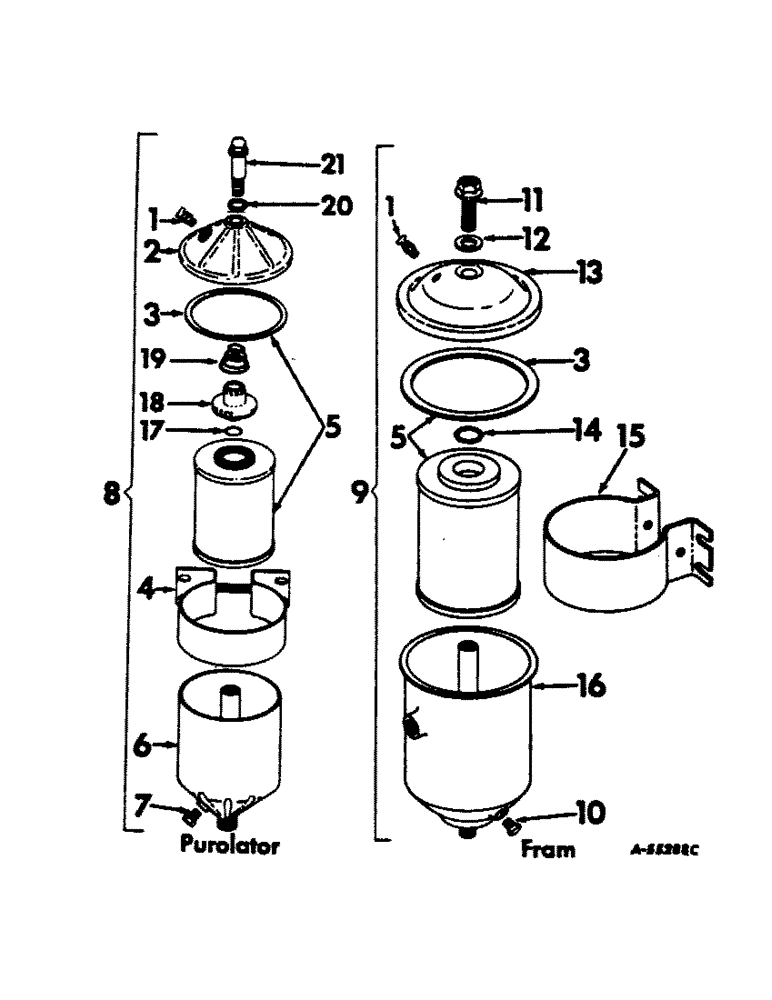

Запчасти Case IH 21206 (E-05) - FUEL SYSTEM, FUEL FILTER, D-361 DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

39677DA

VALVE

BLEEDER, filter

2шт.

2

343669R91

COVER

ASSY, filter, includes ref. nos. 17 thru 21

1шт.

2

321720R91

END ASSY.

COVER & BUSHING ASSY, filter

1шт.

3

304102R1

GASKET

element cover

1шт.

4

304104R91

HOLDER

BRACKET ASSY, filter

1шт.

5

304101R91

FILTER, ELEMENT

ELEMENT ASSY, final fuel filter

1шт.

5

306353R91

ELEMENT

ASSY, primary fuel filter

1шт.

5

610309C91

ELEMENT

ASSY, primary fuel filter water separator, special

1шт.

6

304100R91

BODY

CASE ASSY, filter

1шт.

7

258995R1

PLUG

filter drain

1шт.

8

347066R91

HOSE ASSY.

FILTER ASSY, final fuel, purolator, less ref no. 4

1шт.

8

610932C91

FILTER CARTRIDGE

FILTER ASSY, primary fuel, purolator, less ref no. 4 will work for 601507C91, optional with 610933C91

1шт.

9

610933C91

FILTER

ASSY, primary fuel, fram, less ref no. 15, will work for 601508C91, optional with 610932C91

1шт.

10

610383C1

PLUG

filter drain

1шт.

11

368492R1

SCREW, filter vent cap

1шт.

12

368493R1

GASKET

filter vent cap screw

1шт.

13

603941C91

COVER ASSY, filter

1шт.

14

306777R1

O-RING

O-RING, filter body

1шт.

15

306780R1

STRAP, filter bracket

1шт.

120372

NUT

1/4-20 C-Z sq

1шт.

133086

SCREW, 1/4-20 x 3 slt-rd-hd mach

1шт.

131200

WASHER

1/4 phosphate coated light lock

1шт.

16

CASE ASSY, filter, not serviced separately order filter, 610933C91

1шт.

17

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, gasket retainer

1шт.

18

321722R91

RETAINER

ASSY, gasket

1шт.

19

321721R1

VALVE SPRING

SPRING, retaining

1шт.

20

368334R1

GASKET

screw retaining

1шт.

21

321727R1

CAPSCREW,3/8" - 24 x 1 11/16"

SCREW, cover retaining

1шт.

603945C1

NUT

speed, flat type

1шт.

134519

VALVE

COCK, 1/8 type B drain, used with primary fuel filter water separator element

1шт.
