Запчасти Case IH 21206 (E-03[1]) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM

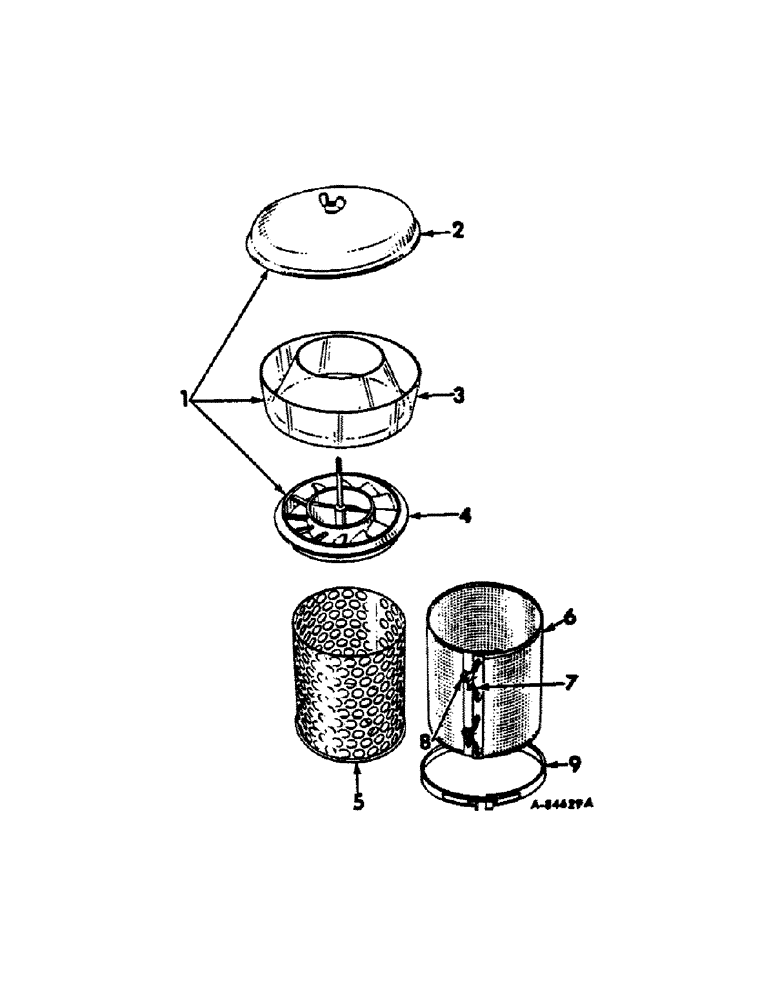

Схема запчастей Case IH 21206 - (E-03[1]) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM
1
8
3
4
7
2
9
5
6

Артикул

Название

Примечание

Количество

1

321262R91

MANIFOLD

PRE-CLEANER ASSY

1шт.

2

277376R91

COVER ASSY

pre-cleaner

1шт.

3

277377R1

FILTER BOWL

BODY, pre-cleaner

1шт.

4

SLEEVE, pre-cleaner, not serviced separately, order pre-cleaner assy, 321262R91

1шт.

5

392637R91

BODY ASSY, pre-screener

1шт.

6

384543R91

SCREEN

W/TWO CLIPS & FOUR SPRINGS

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

8

353758R1

CLIP

screen lock spring

2шт.

9

20946R91

CLAMP ASSY, pre-screener

1шт.

Выбрано товаров: 9
