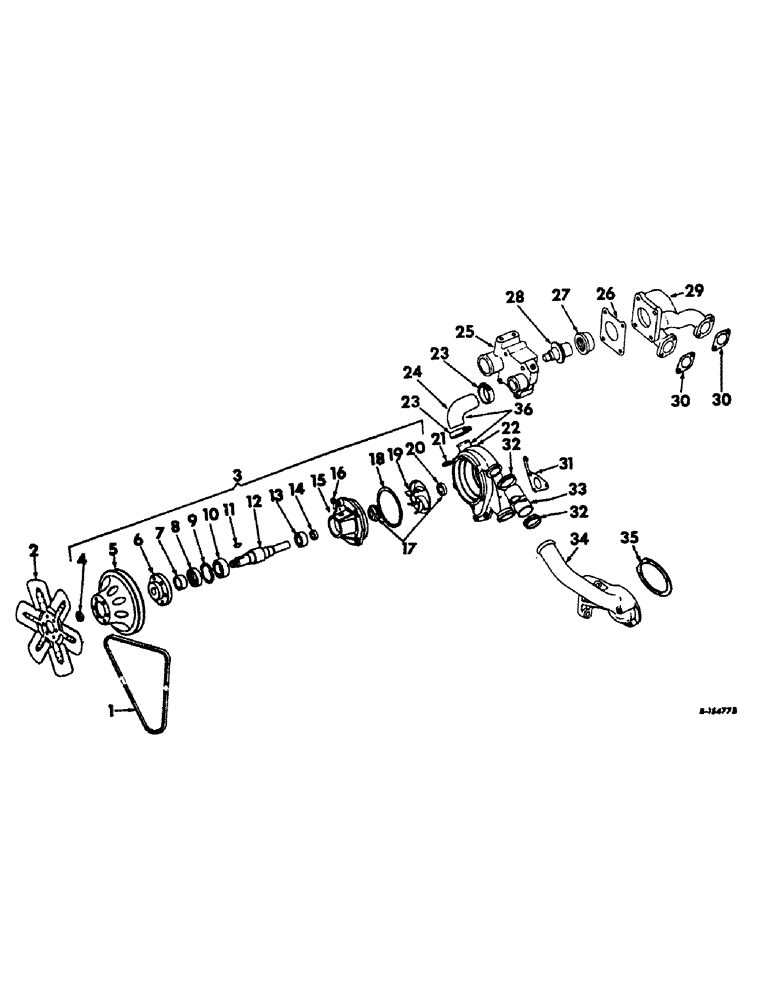

Запчасти Case IH 21206 (D-18) - DIESEL ENGINES, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

1

385120R2

V-BELT,0.597" W 66.50" L

Alternator generator & water pump

1шт.

2

391929R92

FAN

BLADE ASSY, fan

1шт.

395479R1

SPARE PART SPACER, fan, tractors w/air conditioner cab

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 hex-hd cap, use with spacer, 395479R1

3шт.

3

341528R94

PACKAGE

HOUSING ASSY, water pump bearing, less ref. nos. 5 and 18

1шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

18501R1

LOCK NUT,7/8"-14

NUT, 7/8-14 ESNA stop

1шт.

5

341013R1

PULLEY

PULLEY, fan

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

341105R1

HUB

HUB, fan pulley

1шт.

7

326721R1

SPACER

SPACER, water pump

1шт.

8

333794R91

SEAL

SEAL, water pump shaft oil

1шт.

9

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, , brg 2.062", Int, #206

1шт.

10

ST715

BEARING

BEARING, water pump shaft front ball

1шт.

11

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, #9, 3/16" x 3/4", HT

1шт.

12

345081R1

SHAFT

SHAFT, water pump

1шт.

13

ST441

BEARING

BEARING, water pump shaft rear

1шт.

14

610051C91

SEAL

SEAL, pump shaft rear oil

1шт.

15

328889R1

CAGE

HOUSING, bearing

1шт.

16

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

17

701331C91

SEAL

SEAL ASSY, water pump

1шт.

18

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

O-RING, 5-1/2 x 5-3/4 x 1/8

1шт.

19

332311R1

IMPELLER

IMPELLER, water pump

1шт.

20

265164C91

PACKING RING

SEAT ASSY, water pump seal

1шт.

21

273050R1

STUD

STUD, water pump body

4шт.

22

607387C91

BODY

BODY W/FOUR STUDS, 273050R1, water pump

1шт.

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

SCREW, 1/2-13 x 1-7/8 hex-hd cap

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

3шт.

116105

WASHER

WASHER, 17/32 x 1-1/16 copper

1шт.

23

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose

2шт.

24

607259C1

HOSE

HOSE, thermostat by-pass

1шт.

25

607256C11

SPARE PART HOUSING W/PIN, 19407R1 & plug, 143162, thermostat

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

607258C1

GASKET

GASKET, thermostat housing

1шт.

27

347497R91

SEAL

SEAL, thermostat, optional w/615175C91

1шт.

27

615175C91

SEAL

SEAL, thermostat, optional w/347497R91

1шт.

28

326978R91

THERMOSTAT

THERMOSTAT, optional w/702346C1

1шт.

28

702346C1

THERMOSTAT

THERMOSTAT, optonal w/326978R91

1шт.

29

607257C11

ELBOW UNION

Union Elbow ELBOW W/PLUG, 445751, thermostat housing mounting

1шт.

FO445751

PLUG

1/2-14 auto sq-soc pipe

2шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

326818R1

GASKET

GASKET, elbow

2шт.

31

328892R1

GASKET

GASKET, water pump

1шт.

32

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, hose

1шт.

33

407006R1

HOSE

HOSE, 1-3/4 x 2-1/8 x 3-1/4 in. long

1шт.

34

607254C2

SPARE PART HEADER, oil cooler front

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/4", G5

7шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

BOLT, Hex, 5/16"-18 x 4", G5

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

337242R1

GASKET

GASKET, oil, Serial Range: cooler-header

1шт.

36

607387C91

BODY

BODY, water pump, includes reference no. 22 and 24

1шт.

609459C92

SERVICE KIT

PACKAGE, water pump service, consists of ref nos. 4, 7 thru 14, 18 thru 20 & 31

1шт.

701335C91

PACKAGE

PACKAGE, water pump bearing housing service, consists of ref. nos. 4, 7 thru 15, 17, 19 and 20

1шт.

749551C91

REMAN-WATER PUMP

Also Order Hub PN 341105R1 , Key 142435 , and Nut 332310R1

1шт.

1928137C1

CORE-WATER PUMP

Return Part Number

1шт.

345082R91

SPARE PART PACKAGE, water pump shaft service, consists of ref. nos. 4 and 12

1шт.
