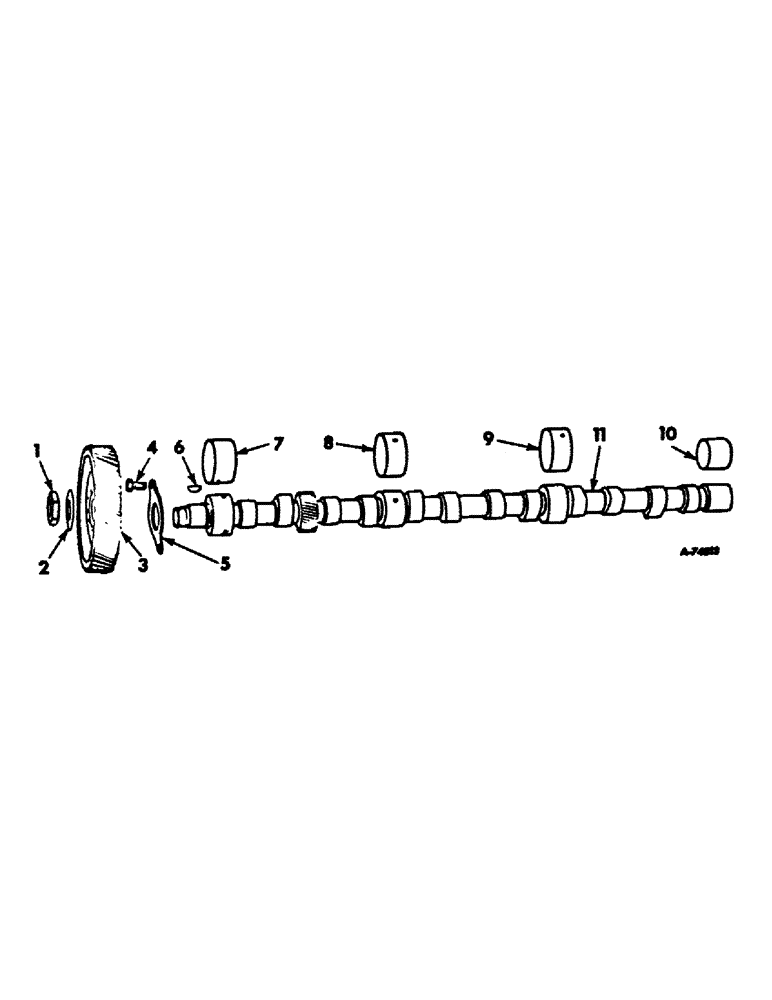

Запчасти Case IH 21206 (D-12) - DIESEL ENGINES, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

16026DB

NUT

camshaft gear

1шт.

3

131858R1

PINION

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, camshaft thrust plate

2шт.

5

16027DB

WASHER

PLATE, camshaft thrust, will work for 16027DA

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY, 1/4 x 3/4 woodruff no. 91, camshaft gear

1шт.

7

332573R1

BEARING LINER

BUSHING, camshaft front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft intermediate front

1шт.

9

332629R1

BEARING LINER

BUSHING, camshaft intermediate rear

1шт.

10

77514R1

BEARING LINER

BUSHING, camshaft rear

1шт.

11

332107R1

CAMSHAFT

furnish package 701067C91

1шт.

11

670349C1

CAMSHAFT

1шт.

701067C91

CAMSHAFT

PACKAGE, camshaft replacement consists of, camshaft 670349C1, plate 16027D8

1шт.
