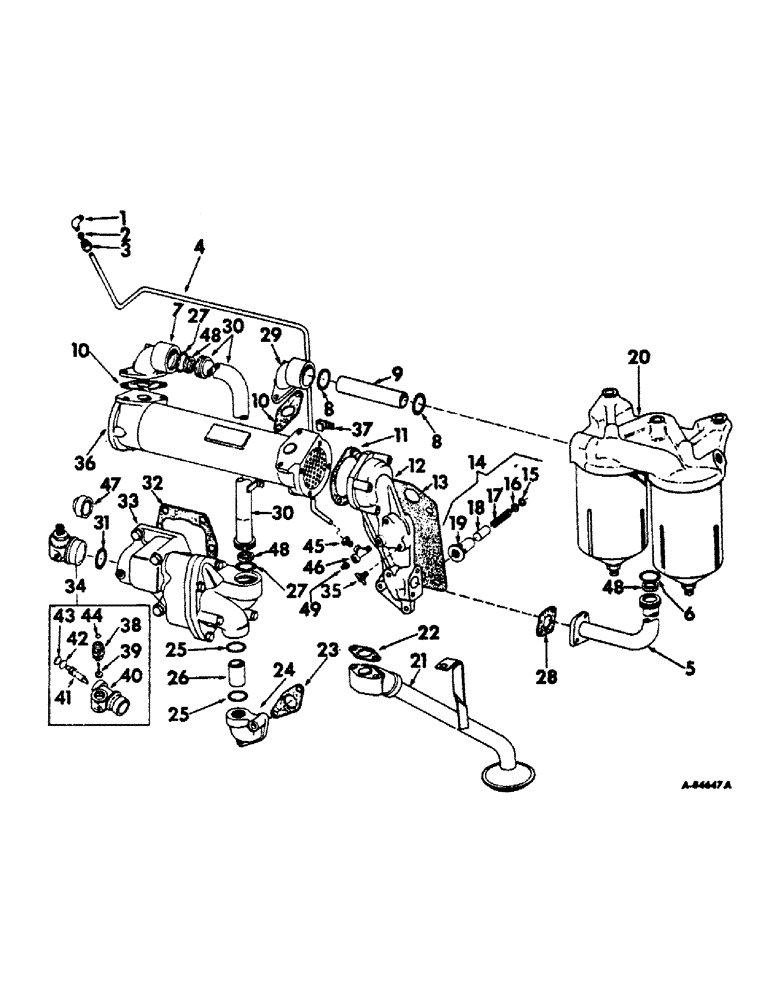

Запчасти Case IH 21206 (D-06) - DIESEL ENGINES, ENGINE OIL COOLER, FILTER, OIL PUMP AND PIPING (01) - ENGINE

1

606894C1

ELBOW

ELBOW, oil cooler rear header to cylinder head tube

1шт.

2

615092C1

SLEEVE CYLINDER

SLEEVE, oil cooler rear header to cylinder head tube

1шт.

3

615091C1

NUT

NUT, oil cooler rear header to cylinder head tube

1шт.

4

607265C1

CHANNEL

TUBE, oil cooler rear header to cylinder head

1шт.

5

332546R11

TUBE ASSY, filter header to cooler header

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

343398R2

RING

O-RING, 1-1/4 x 1-1/2 x 1/8, filter header to cooler header tube

1шт.

7

332554R1

ELBOW

Union Elbow ELBOW, oil cooler front

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

343396R2

SEALING RING

O-RING, 1-1/8 x 1-3/8 x 1/8, cooler to filter tube

2шт.

9

607264C1

TUBE

TUBE, Serial Range: cooler-filter

1шт.

10

332555R1

GASKET

GASKET, oil cooler elbow

2шт.

11

337242R1

GASKET

GASKET, oil, Serial Range: cooler-header

1шт.

12

607263C1

SPARE PART HEADER, pressure regulator valve and rear oil cooler

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

13

345247R1

GASKET

GASKET, cooler header

1шт.

14

341195R92

VALVE

VALVE ASSY, pressure regulating

1шт.

15

RING, valve spring seat snap, order valve assy, 341195R92

1шт.

16

SEAT, valve spring, order valve assy, 341195R92

1шт.

17

SPRING, valve, order valve assy, 341195R92

1шт.

18

VALVE, pressure regulating, order valve assy, 341195R92

1шт.

19

HOUSING, valve, order valve assy, 341195R92

1шт.

20

FILTER ASSY, lubricating oil, for components see list of parts under details of lubricating oil filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

332545R91

INTAKE ASSY

SPARE PART INLET ASSY, oil pump

1шт.

18253R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 ESNA stop

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

332549R1

GASKET

GASKET, oil pump inlet

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

23

332544R1

GASKET

GASKET, oil outlet elbow

1шт.

24

332543R1

ELBOW

ELBOW, crankcase oil outlet

1шт.

1749839

SCREW, 3/8-16 x 1 hex-hd cap

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

343396R2

SEALING RING

O-RING, 1-1/8 x 1-3/8 x 1/8, oil outlet to pump tube

2шт.

26

332542R1

TUBE

TUBE, crankcase oil, Serial Range: outlet-pump

1шт.

27

343398R2

RING

O-RING, 1-1/4 x 1-1/2 x 1/8, oil pump to oil cooler tub

2шт.

28

332566R1

GASKET

GASKET, filter header to cooler header tube

1шт.

29

607262C1

ELBOW UNION

Union Elbow ELBOW, oil cooler rear

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

607261C11

TUBE,6.73, 6.56" Length

TUBE ASSY, pump to cooler

1шт.

31

382781R1

O-RING,1.737" ID x 0.103" Width

O-RING, 1-3/4 x 1-15/16 x 3/32, tachometer drive

1шт.

32

332536R1

GASKET

GASKET, oil pump mounting

1шт.

33

332520R94

PUMP

PU,P ASSY, oil, for components see list of parts under details of oil pump

1шт.

33

735248C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

33

1928217C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

341106R93

DRIVE ASSY.

DRIVE ASSY, tachometer

1шт.

139013

TINE BAR

SPARE PART SCREW, 1/4-28 x 1/2 hex-soc set

1шт.

35

9982T

COCK

COCK, 1/4 drain

1шт.

36

606896C91

NO LONGER SERVICED

COOLER ASSY, oil

1шт.

37

263515R91

CLIP,ELECTRICAL

CLIP, header to cylinder head tube

1шт.

38

341111R2

ROD, CONNECTING

CONNECTOR, tachometer housing

1шт.

39

341108R11

GEAR WHEEL

GEAR ASSY, tachometer driven

1шт.

40

341107R1

HOUSING

HOUSING, tachometer drive

1шт.

445864

PLUG, 1/8-27 auto sq-hd pipe

1шт.

41

341109R11

SHAFT

SHAFT, tachometer drive

1шт.

42

312162R1

PLATE ASSY.

PLATE, tachometer thrust

1шт.

43

172557

PLUG

PLUG, 1-3/16 expansion

1шт.

44

359158R1

O-RING,0.301" ID x 0.07" Width

O-RING, -011, 70 Duro, .031" ID x .070" Thk, Tachometer housing connector

1шт.

45

19984R1

TUBE NUT,7/16"-24

NUT, 7/16-24 hi-duty tube fitting

1шт.

46

16898R1

TEE,1/8" NPTF Fem Run x 7/16"-24 Male Br

TEE, oil cooler rear header tube

1шт.

47

(Not used in this application)

1шт.

48

332551R1

GLAND

GLAND, 1/8 o-ring

3шт.

49

444-571

PLUG, 1/8 pipe

1шт.
