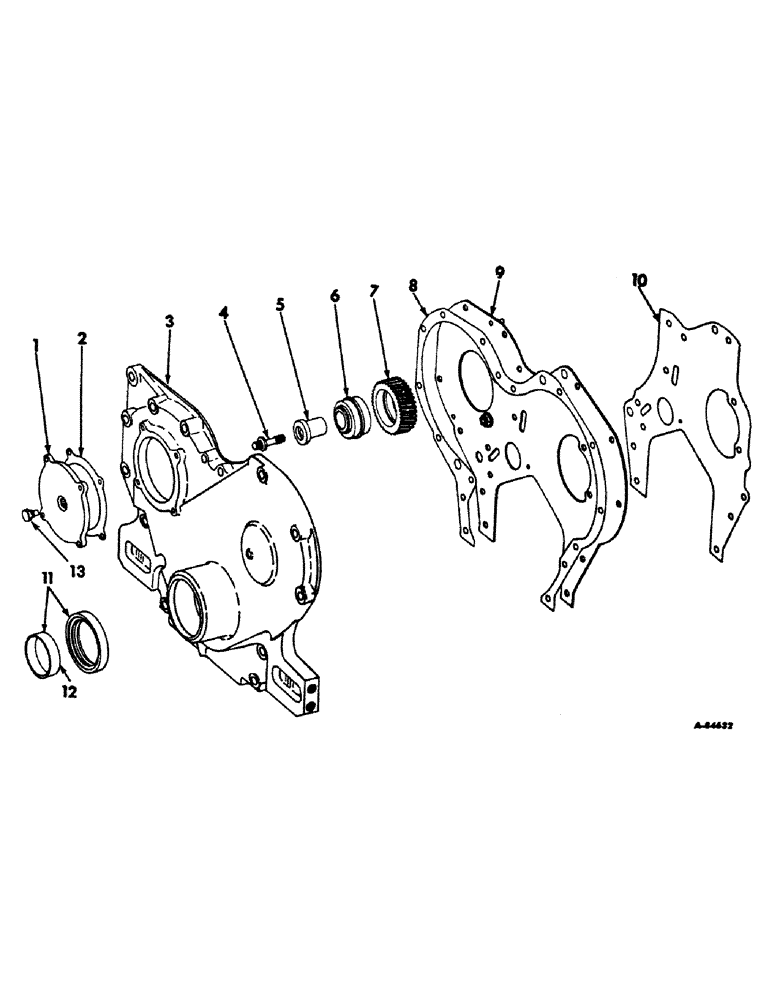

Запчасти Case IH 21206 (D-05) - DIESEL ENGINES, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

341523R11

COVER

ASSY, injection pump

1шт.

311979R1

SCREW

3/8-16 x 7/8 hex-hd cap

4шт.

2

326582R1

GASKET

injection pump cover

1шт.

3

349040R2

COVER, crankcase front

1шт.

103026

NUT,3/8"-24, G5

3/8-24 x 2-3/4 hex-hd cap

5шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

5шт.

181384

BOLT,Hex, 3/8" - 24 x 2 3/4"

SCREW, 3/8-24 x 2-3/4 hex-hd cap

2шт.

179888

LEVER

SCREW, 1/2-13 x 1-7/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

4

670033C1

BOLT (SPREADER)

BOLT, counterbore, replaces 328733R1

1шт.

5

326583R2

SHAFT

idler gear

1шт.

601740C1

WASHER

SPACER, idler gear shaft

1шт.

6

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

idler gear, optional w/619782C91

1шт.

6

619782C91

BEARING

idler gear, optional w/327185R91

1шт.

7

326612R1

PINION

GEAR, injection pump idler

1шт.

8

326580R1

GASKET

front cover

1шт.

9

328732R11

PLATE, w/two pins, 19841R1 and two nuts, 264723R1, crankcase front

1шт.

264723R1

NUT, spline

2шт.

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

328735R1

GASKET

front plate

1шт.

11

606780C93

PACKAGE

crankcase front oil seal

1шт.

12

606779C1

SLEEVE

wear

1шт.

13

606792C91

BUTTON

ASSY, thrust

1шт.
