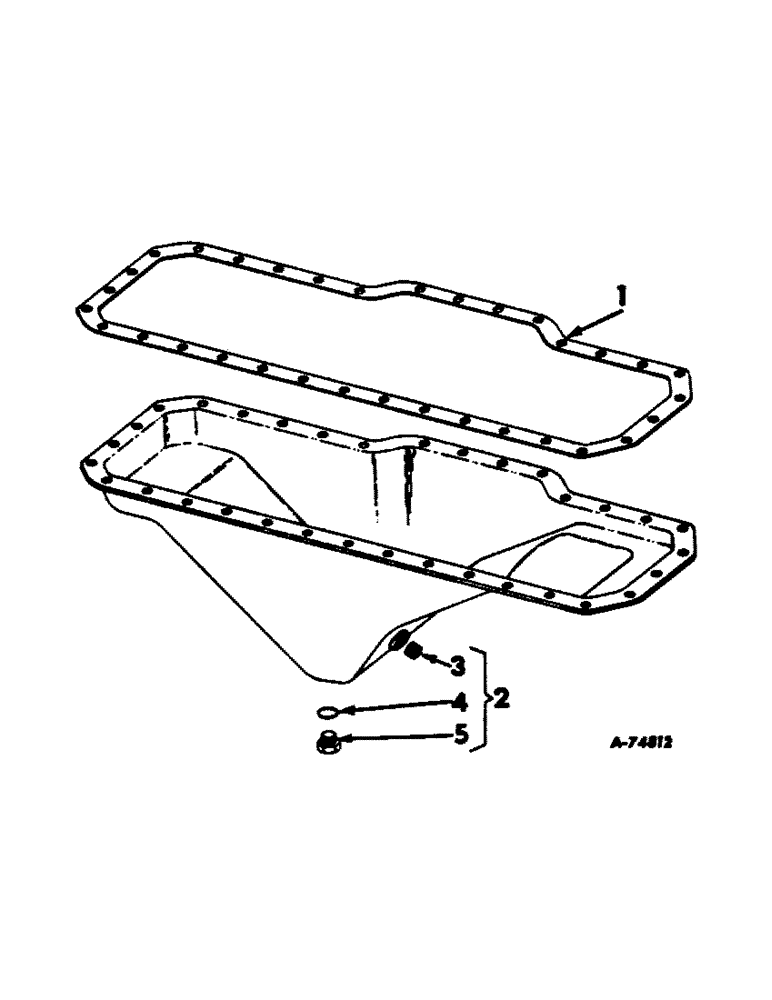

Запчасти Case IH 21206 (D-04) - DIESEL ENGINES, CRANKCASE OIL PAN (01) - ENGINE

1

328731R1

GASKET

oil pan

1шт.

2

332065R11

PAN

ASSY, oil

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

33шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

33шт.

3

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 sq-sock pipe

1шт.

4

3405H

GASKET

drain plug

1шт.

5

445096

PLUG

7/8-18 hex-hd outside drain, crankcase oil pan drain

1шт.
