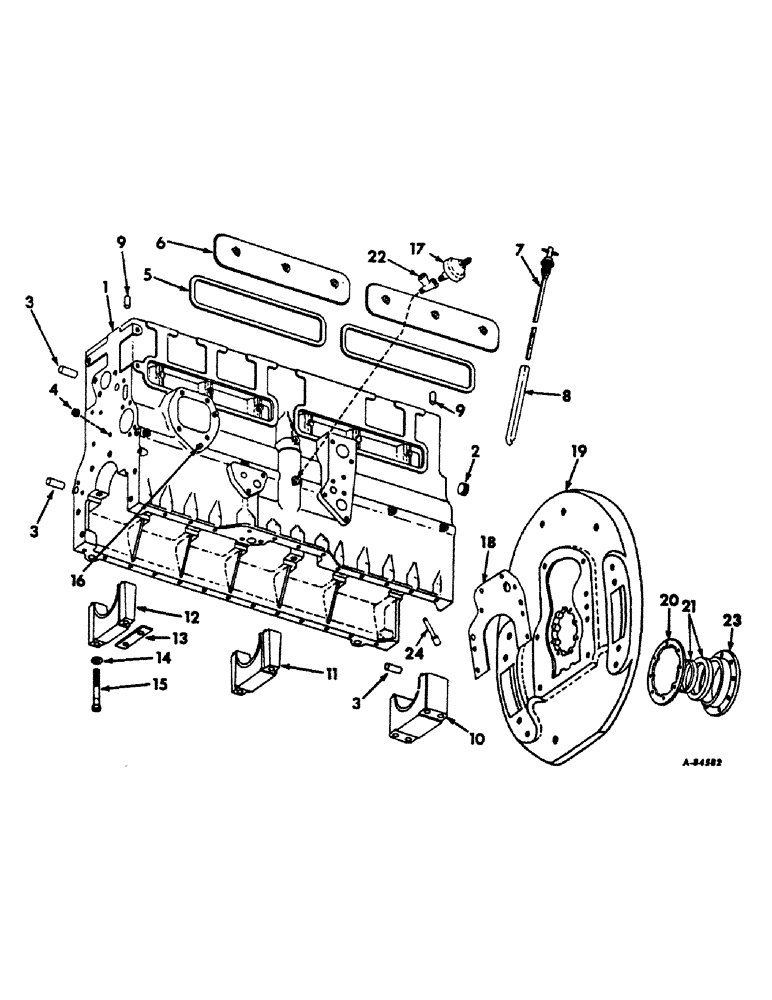

Запчасти Case IH 21206 (D-03) - DIESEL ENGINES, CRANKCASE AND RELATED PARTS (01) - ENGINE

1

609355C95

CRANKCASE ASSY, composed of (12) bearing 7911T, (14) bolt 328729R1, (1) brace 332574R2, (1) bushing 70260R1, (1) bushing 77514R1, (1) bushing 332573R1, (1) bushing 332629R1, (1) cap 328726R1 (NSS), (5) cap 328727R1 (NSS), (1) cap 328728R1 (NSS), (1) cran

1шт.

50410DA

PLUG

1/8 sq-soc-hd pipe

2шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto sq-hd pipe

3шт.

444067

PLUG, 1/2-14 auto sq-hd pipe

1шт.

2

70128R1

PLUG,Cup, 1 5/8"

cup

6шт.

3

19838R1

DOWEL,15.88mm OD x 31.75mm L

PIN, 5/8 x 1-1/4 dowel

4шт.

4

315365R1

PLUG

metering

1шт.

5

328739R1

GASKET

push rod cover

2шт.

6

601812C1

COVER ASSY

COVER, push rod

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

push rod cover

7шт.

7

609023C91

GAUGE

GAGE ASSY, oil level

1шт.

8

607293C1

TUBE

oil filler

1шт.

9

258917R1

DOWEL

PIN, 3/8 x 3/4 roll

2шт.

10

CAP, crankshaft rear bearing, not serviced separately, order crankcase assy

1шт.

11

CAP, crankshaft intermediate bearing, not serviced separately, order crankcase assy

5шт.

12

CAP, crankshaft front bearing, not serviced separately, order crankcase assy

1шт.

13

332574R2

BRACKET

BRACE, oil pump outlet

1шт.

14

326515R1

WASHER,15.88mm ID x 28.45mm OD x 4.83mm Thk

bearing cap bolt

13шт.

15

328729R1

BOLT (SPREADER),9/16" - 12 x 4 1/2"

BOLT, bearing cap

14шт.

16

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

17

392249R92

SWITCH

oil pressure

1шт.

18

328846R1

GASKET

rear mounting plate

1шт.

19

332446R21

PLATE W/PIN, 45979D, crankcase rear mounting

1шт.

45979D

STUD

PIN, rear mounting plate dowel

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20

332303R1

SEAL

face plate

1шт.

21

609333C92

KIT

SEAL W/SLEEVE, crankshaft rear oil

1шт.

22

16898R1

TEE,1/8" NPTF Fem Run x 7/16"-24 Male Br

1/8 union

1шт.

23

601743C1

RETAINER

rear oil seal

1шт.

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

BOLT, 5/16-18 x 7/8 Nylock

8шт.

24

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

OIL JET

12шт.

609332C93

STRIPPER PACKAGE

PACKAGE W/ONE RETAINER, 601743C1 & one gasket, 332303R1, rear oil seal conversion

1шт.
