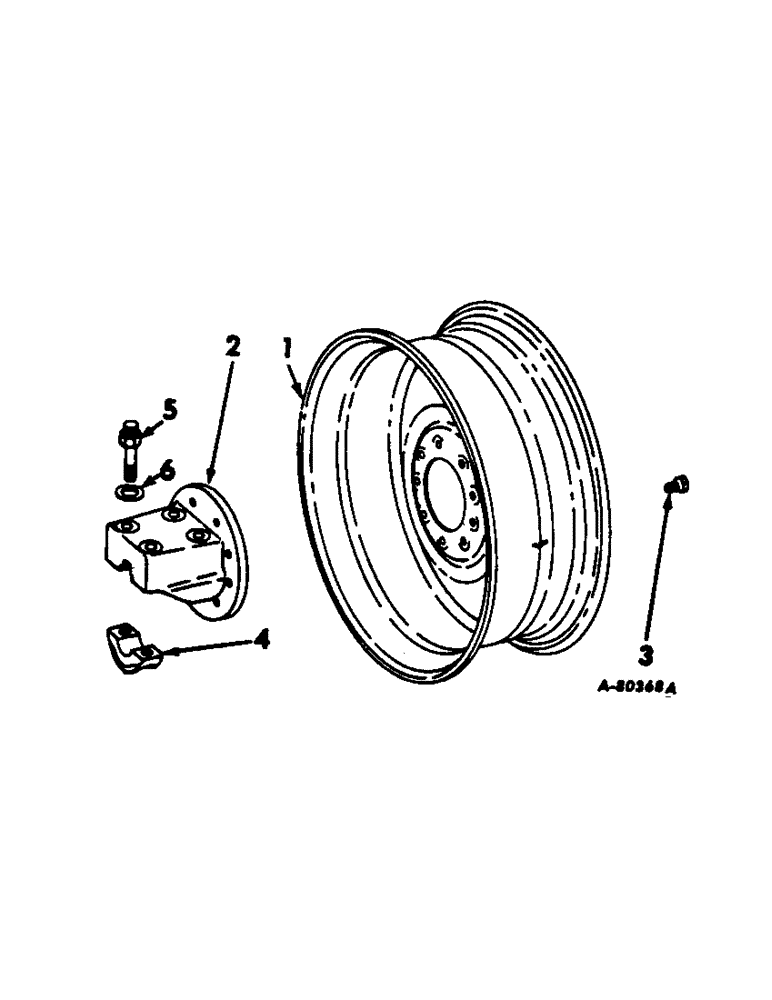

Запчасти Case IH 21206 (L-07) - WHEELS AND WHEEL WEIGHTS, OUTER DUAL REAR WHEELS, DISC TYPE Wheels & Wheel Weights

1

387923R92

RIM

WHEEL ASSY, disc type rear, W14L-38, rim for 15.5-38 tire, Farmall tractors

2шт.

1

400880R1

WHEEL

ASSY, disc type rear, W16L-38 rim for 16.9-38 or 18.4-38 tires, offset to provide 110 in. tread

2шт.

1

400879R1

WHEEL

ASSY, disc type rear, W16L-38 rim for 16.9-38 or 18.4-38 tires, offset to provide 114 in. tread

2шт.

2

387925R1

HUB

outer dual rear wheel

2шт.

3

375110R1

BOLT,5/8" - 18 x 1 3/8"

rear wheel mounting, for wheel 387923R92

18шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

18шт.

4

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

5

385784R11

STUD

STUD ASSY, rear wheel hub clamp

8шт.

6

384697R1

WASHER

rear wheel hub clamp stud

8шт.

389901R91

PARTS ACCESSORY, W14L-38 outer dual rear wheel, see note, Farmall tractors, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384923R92

1шт.

392707R91

PARTS ACCESSORY, W16L-38 outer dual rear wheel, see note, offset to provide 110 in. tread, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 392650R91

1шт.

393183R91

PARTS ACCESSORY, W16L-38 outer dual rear wheel, see note, offset to provide 118 in. tread, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 392918R91

1шт.
