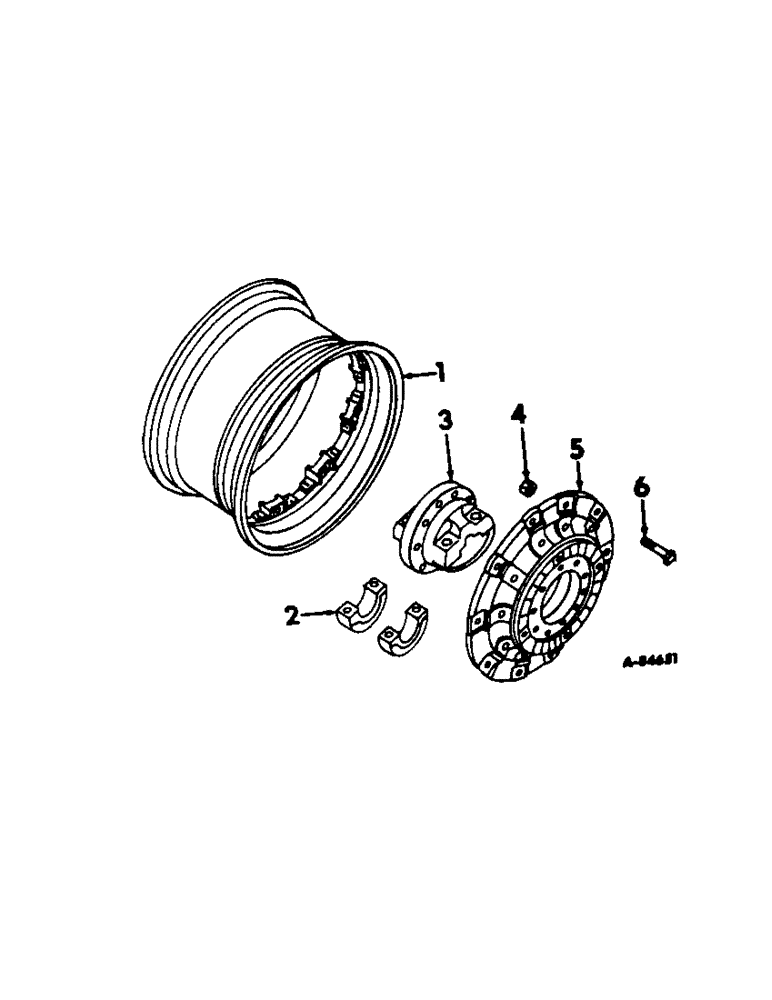

Запчасти Case IH 21206 (L-06) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, WITH 30, 32 AND 34 INCH ATTACHED CLAMP RIMS, INTL TRACTORS Wheels & Wheel Weights

1

384068R91

RIM

ASSY, rear wheel, DW20-30 rim for 23.1-30 tire

2шт.

392035R91

RIM

ASSY, rear wheel, DW21-32 rim for 24.5-32 tire

2шт.

1

384069R91

RIM ASSY, rear wheel, DW20-34 rim for 23.1-34 tire with lugs

2шт.

2

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

rear wheel hub clamp stud

8шт.

3

380861R2

HUB, rear wheel

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

20шт.

4

352536R1

NUT

rear wheel rim clamp bolt, 20 for 30 & 32 in. wheels

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

20шт.

4

352536R1

NUT

rear wheel rim clamp bolt, 24 for 34 in. wheels

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

5

380855R1

WHEEL, 30 & 32 in. rear

2шт.

5

380858R1

WHEEL, 34 in. rear

2шт.

6

384070R1

WHEEL BOLT,Sq Hd, 3/4" - 16 x 4 1/2"

BOLT, rear wheel rim mounting, 20 for 30 & 32 in. wheels

1шт.

6

384070R1

WHEEL BOLT,Sq Hd, 3/4" - 16 x 4 1/2"

BOLT, rear wheel in rim mounting, 24 for 34 in. wheels

1шт.
