Запчасти Case IH 21206 (L-05[1]) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, DOUBLE BEADED RIMS Wheels & Wheel Weights

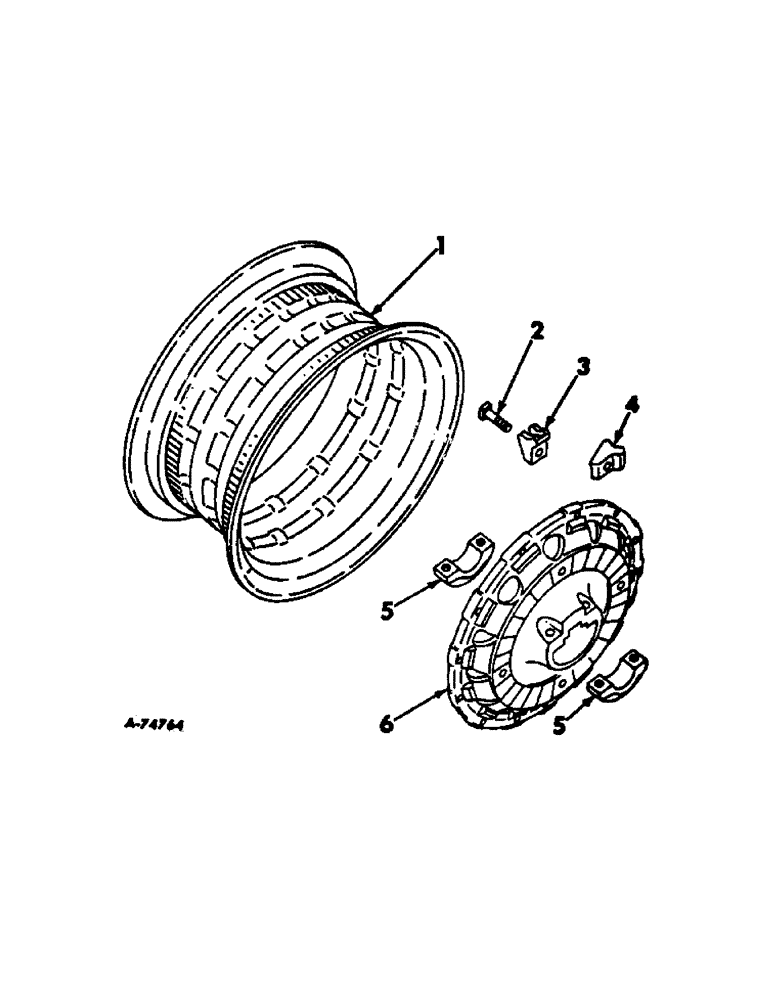

Схема запчастей Case IH 21206 - (L-05[1]) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, DOUBLE BEADED RIMS Wheels & Wheel Weights
6
1
4
3
5
5
2

Артикул

Название

Примечание

Количество

1

392647R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire, Farmall tractors

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire, Farmall tractors

2шт.

1

392031R1

RIM

rear wheel, W16L-38 rim for 18.4-38 tire

2шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp

24шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

3

380870R1

CLAMP

rear wheel rim

20шт.

4

397251R1

CLAMP

rear wheel rim, fixed, will work for 380871R1

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

392020R1

WHEEL

38 inch rear

2шт.

Выбрано товаров: 12
