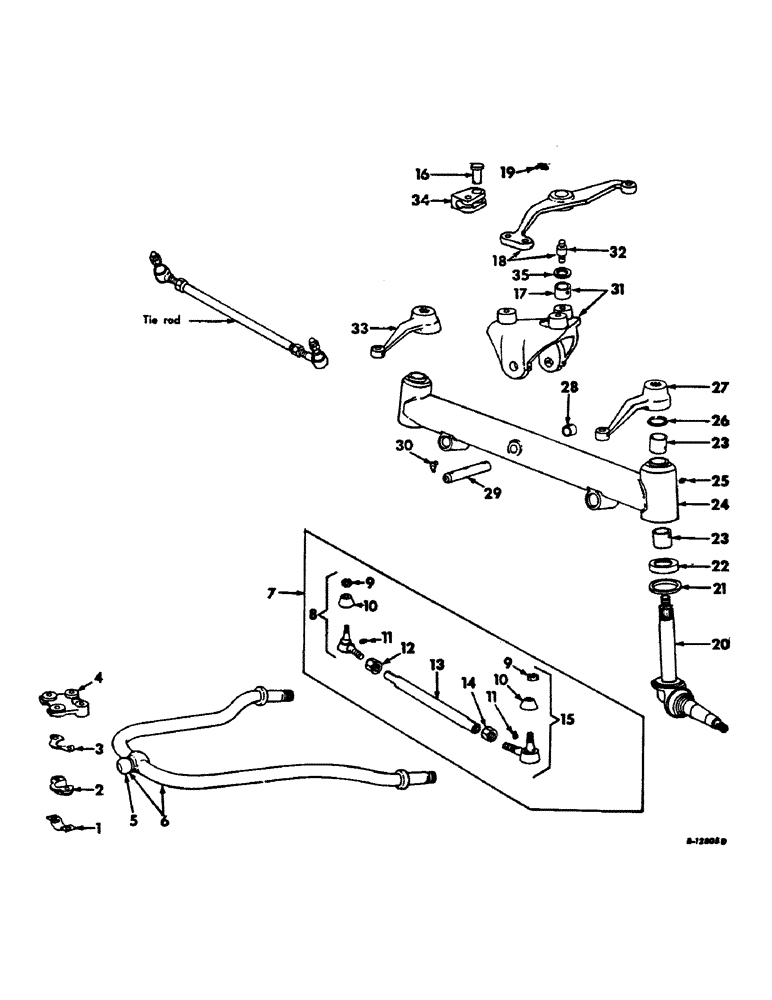

Запчасти Case IH 21206 (J-16) - STEERING MECHANISM, FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Steering Mechanism

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

2

379953R1

CAP

stay rod ball socket

1шт.

3

379954R1

SHIM

stay rod ball socket cap

1шт.

4

379952R1

SOCKET

stay rod ball

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap

2шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap

2шт.

5

10546D

BALL

stay rod

1шт.

6

379951R11

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

118028

WASHER, 1-3/8 light lock

2шт.

7

384435R91

ROD ASSY, tie

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

8

384005R91

END

ASSY, tie rod, LH thread

2шт.

9

374584R1

NUT, tie rod end, optional with 374701R1

4шт.

9

374701R1

NUT

tie rod end, optional with 374584R1

4шт.

10

387280R1

SEAL

COVER, dust

4шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

12

374062R1

JAM NUT

NUT, jam, LH thd

2шт.

13

384436R1

TUBE,0.948" ID, 1.187" OD, 14.562" Length

tie rod

2шт.

14

374061R1

JAM NUT

jam, RH thread

2шт.

15

384006R91

END

ASSY, tie rod, RH thread

2шт.

16

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 clevis

1шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

1шт.

17

397947R1

ENGINE ASSEMBLY

BUSHING, center arm pivot, serial no. 8915 & below

1шт.

17

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin, serial no. 8916 and above

1шт.

18

379946R21

ARM ASSY, center steering, serial no. 8915 & below, furnish steering arm package 399704R91

1шт.

18

399973R91

STEERING ARM

ARM ASSY, center steering, serial no. 8916 & above

1шт.

19

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

20

371343R92

KNUCKLE

W/OIL SEAL, 370254R91 and shield, 48701D, steering furnish knuckle 401768R91 & ring 146008R1

1шт.

20

401768R91

KNUCKLE

ASSY, steering

2шт.

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

4шт.

21

55412D

WASHER

WASHER, steering knuckle pivot felt

2шт.

22

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ASSY, steering knuckle pivot thrust

2шт.

23

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

24

384001R12

AXLE, w/four bushing, 358985R2, & two bushing, 379943R1, front

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

26

361850R1

RING

steering knuckle retaining

2шт.

27

384017R2

ARM

RH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

28

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

front axle pivot pin

2шт.

29

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

30

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.

31

379940R41

BOLSTER ASSY, lower, serial no. 8915 & below, furnish package 399985R91

1шт.

31

399976R91

NO LONGER SERVICED

BOLSTER ASSY, lower, serial no. 8916 & above

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

U5360

AXLE PIN

PIN, 3/8 x 6-1/8 headed

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

102635

NUT,3/8"-16, G5

1шт.

17892R1

BOLT,Hex, 3/8" - 16 x 6 1/4"

SCREW, 3/8-16 x 6-1/4 hex-hd cap

1шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

5/8-11 x 2 hex, soc, hd cap

2шт.

20295R1

HEX SOC SCREW,5/8"-11 x 3"

SCREW, 5/8-11 x 3 hex, soc, hd cap

1шт.

32

379948R2

PIN, center arm pivot, furnish package 399704R91

1шт.

32

399974R1

SHAFT

center arm pivot, serial no. 8916 & above

1шт.

33

384016R2

STEERING ARM

ARM, LH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

34

389052R1

CLEVIS COUPLING

CLEVIS, cylinder end

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

35

392991R1

SHIM

center arm pivot pin, .020

1шт.

35

392990R1

SHIM

center arm pivot pin, .010

1шт.

399704R91

PACKAGE

steering arm & axle stop service, consists of

1шт.

399973R91

STEERING ARM

ARM ASSY, center steering

1шт.

399974R1

SHAFT

CENTER ARM PIVOT

1шт.

16006R1

BALL

3/16 65 deg angle drive type

1шт.

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin

2шт.

383908R1

STOP, front axle

2шт.

401505R1

STOP, steering knuckle arm

2шт.

399985R91

PACKAGE, lower bolster & axle stop service, consists of

1шт.

399976R91

NO LONGER SERVICED

BOLSTER ASSY, lower

1шт.

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

399973R91

STEERING ARM

ARM ASSY, center steering

1шт.

399974R1

SHAFT

center arm pivot

1шт.

16006R1

BALL

3/16 cr-stl

1шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub, center arm pivot pin

1шт.

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin

1шт.

383908R1

STOP, front axle

1шт.

401505R1

STEERING KNUCKLE ARM

1шт.
