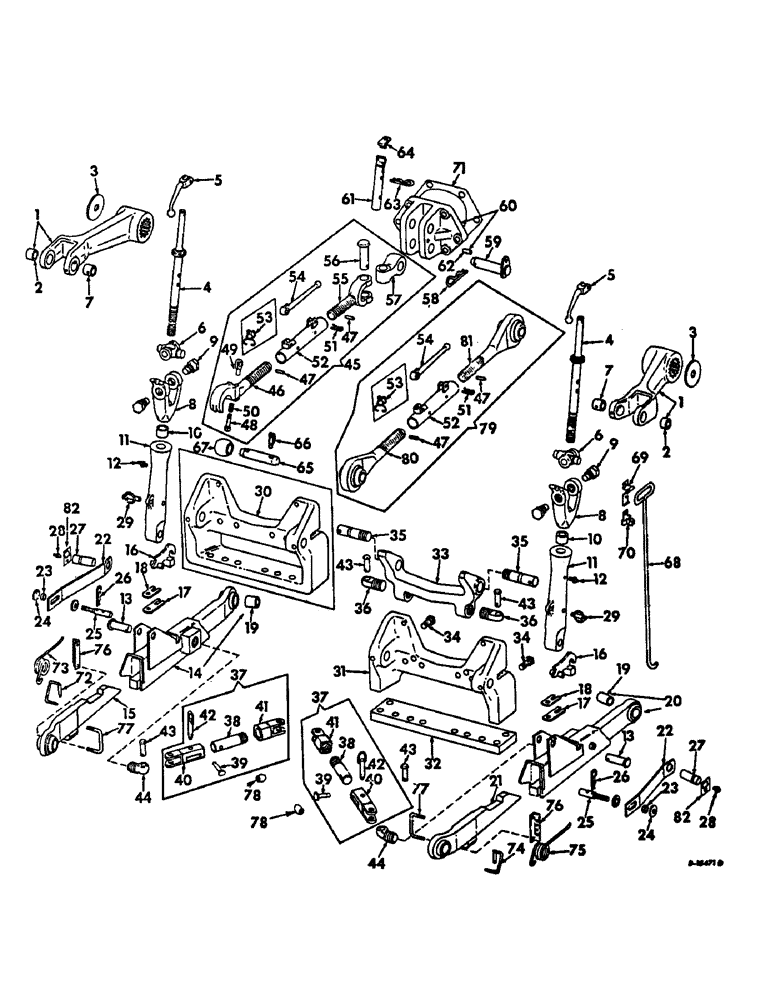

Запчасти Case IH 21206 (K-08) - DRAWBARS AND HITCHES, THREE POINT FAST HITCH Drawbars & Hitches

ATTACHMENT, three point fast hitch, 392146R91, includes ref. nos. 1 through 21, 27 through 47 & 52 through 67 and attaching hardware, tractors with draft control unit and draft sensing unit

1шт.

1

392147R11

ARM

ASSY, rockshaft

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

4

392150R11

ROD

ASSY, leveling, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8398 & below

1шт.

4

397203R1

SCREW

ROD ASSY, leveling, Farmall tractors w/serial no. 11793 & above, International tractors w/serial no. 8399 & above

1шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

2шт.

5

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

6

392152R1

TRUNNION

lift link

2шт.

7

392153R2

BUSHING,22.15mm ID x 34.92mm OD x 30.48mm L

lift link trunnion

2шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

2шт.

8

392154R1

YOKE, lift link hanger

2шт.

9

392155R1

BOLT (SPREADER),Shldr, Hex, 1 1/8" - 7 x 1.66"

BOLT, shoulder

4шт.

10

392156R2

COLLAR, lift link float

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8-11 x 1 sq-hd cone-pt set

2шт.

11

392157R1

HOUSING

leveling screw, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8398 & below

2шт.

11

396752R1

HOUSING

leveling screw, Farmall tractors w/serial no. 11793 & above, International tractors w/serial no. 8399 & above

2шт.

12

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive-type str lub, leveling screw housing

2шт.

13

392915R1

AXLE PIN

PIN, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

398247R91

LINK W/BUSHING, front section lower LH, replaces 392161R92

1шт.

15

392172R92

LINK & BALL ASSY, rear section lower LH

1шт.

16

392179R1

LATCH

2шт.

17

522839R1

VALVE SPRING

SPRING, latch

2шт.

18

522840R2

VALVE SPRING

SPRING, latch auxiliary

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

19

392180R1

BUSHING

front lower link ball

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga, Farmall tractors w/serial no. 11793 & above, International tractors w/serial no. 8399 & above

2шт.

20

398248R91

LINK W/BUSHING, front section lower RH, replaces 392162R92

1шт.

21

392173R92

LINK & BALL ASSY, rear section lower RH

1шт.

22

392214R1

SPRING, lower link positioning, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8398 & below

2шт.

23

392215R1

SPACER, adjusting stud, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8398 & below

2шт.

24

392216R1

WASHER, adjusting stud, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8398 & below

4шт.

25

392217R1

STUD, adjusting

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

Farmall tractors w/S/N 11792 & below, International tractors w/S/N 8398 & below Jam, 1/2"-13, G5

4шт.

26

517843R1

COTTER PIN

PIN, quick attachable cot., Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8398 & below

2шт.

27

392218R1

PIN

lower link, order pin 406686R1 & retainer 406687R1

2шт.

27

406686R1

PIN

lower link

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lower link pin 1/4"-28 NPT x .54" lg

2шт.

29

392181R91

PIN

ASSY, lower link drawbar

2шт.

30

392182R1

SUPPORT, drawbar, International tractors w/serial no. 7970 & below, Farmall tractors w/serial no. 9771 & below

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

SCREW, 5/8-11 x 3-1/2 hex-hd cap

6шт.

31

393776R1

SUPPORT

drawbar, International tractors w/serial no. 7971 & above, Farmall tractors w/serial no. 9772 & above

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

SCREW, 5/8-11 x 3-1/2 hex-hd cap

6шт.

32

393777R1

BAR, drawbar support

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

4шт.

33

392183R1

ARM

stabilizer control

1шт.

34

383261R1

BOLT

SCREW, draft adjusting

2шт.

396467R1

NUT

adjusting

2шт.

35

392184R1

SHAFT

stabilizer control arm

2шт.

19684R1

LOCK PIN,1/2" x 2 3/4", Slotted

Pin, 1/2" x 2 3/4", Slotted

2шт.

427654

NUT

1-1/8-12 slt hex.

2шт.

119179

PIN, 3/16 x 1-7/8 cot.

2шт.

36

392185R1

BOLT,1 3/8" - 6 x 2.50"

stabilizer front eye

2шт.

37

406246R91

STABILIZER

ASSY, lateral limiter, replaces 392186R1

2шт.

38

406247R1

STUD

lateral limiter, replaces 392187R1

2шт.

39

527370R1

PIN

5/8 x 2-1/2 headed, replaces 20607R1

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

1шт.

40

392188R91

YOKE

ASSY, lateral limiter housing, order yoke 406248R1 & stud 406247R1

2шт.

40

406248R1

YOKE

lateral limiter

2шт.

41

406249R1

YOKE

limiter front, replaces 392191R91

2шт.

42

392193R11

PIN

ASSY, lockout

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

43

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, stabilizer

4шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

44

392195R1

BOLT,1 3/8" - 6 x 2.62", Full Thd

stabilizer rear eye

2шт.

45

392196R93

LINK

ASSY, upper, order 404632R91

1шт.

46

392197R92

SCREW

ASSY, LH thread, order 398401R1 & bushing 398406R1

1шт.

47

19689R1

PIN,1/4" x 1 1/4", Coiled

LH thread 1/4" x 1 1/4", Coiled

2шт.

48

394692R1

ROD

LATCH, upper link rod, also order eye 394693R1, Farmall tractors with serial no. 8637 & below, International tractors with serial no. 7775 & below

1шт.

49

394693R1

ROD

EYE, upper link latch, also order latch, 394692R1, Farmall tractors with serial no. 8637 & below, International tractors with serial no. 7775 & below

1шт.

50

2063A

SPRING

latch

1шт.

51

520175R1

CLIP

PIN, qa cotter

2шт.

52

395036R1

TURNBUCKLE, for service replacement order 1 turnbuckle, 404633R1, 1 pin, 520175R1 and 1 pin, 1233

1шт.

52

404633R1

BUCKLE

TURNBUCKLE, upper link, hd

1шт.

53

395026R1

CLIP, turnbuckle handle spring

1шт.

54

392204R1

HANDLE

upper link turnbuckle

1шт.

1233

CASE

PIN, 3/8 x 1-5/8 standard head

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

55

392205R1

ROD, RH thread, order 398404R1

1шт.

56

392206R1

PIN, upper link pivot

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

57

392207R1

TRUNNION, upper link

1шт.

58

520174R1

CLIP, SPRING

PIN, quick attachable cot.

1шт.

59

392208R11

PIN

ASSY, upper link bracket

1шт.

60

392210R11

BRACKET

ASSY, upper link

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

5шт.

614636R1

SCREW,Hex, 5/8"-11 x 1 7/8", G8, Full Thd

5/8-11 x 1-7/8 hex-hd cap

1шт.

61

393002R11

TUBE

ASSY, upper link storage

1шт.

62

20037R1

PIN, 7/16 x 1-1/4 dowel

1шт.

63

517843R1

COTTER PIN

PIN, upper link qa storage

1шт.

64

393004R1

SUPPORT

CLIP, upper link storage bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

65

392211R1

AXLE PIN

PIN, upper link implement

1шт.

66

392181R91

PIN

ASSY, upper hitch

2шт.

67

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

UPPER LINK, replaces 392212R1

1шт.

398406R1 is a bushing that fits inside of ball# 392212R1. bushing changes ball from catagory 3 to catagory 2

1шт.

68

392213R1

HOOK, latch

1шт.

69

393127R1

HOLDER, latch hook

1шт.

70

393126R1

CLAMP, latch hook spring

1шт.

71

383330R1

GASKET

draft control adj opening cover

1шт.

72

393842R91

ROD ASSY, spring support LH

1шт.

446354

WASHER,1/4"

5/16 x 7/8 x .060

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 hex. jam

2шт.

73

393846R1

SPRING, rear lower beam positioning LH

1шт.

74

393843R91

ROD ASSY, spring support RH

1шт.

75

393847R1

SPRING, rear lower beam positioning RH

1шт.

76

393768R1

ANGLE, spring support bracket

2шт.

77

393848R1

BOLT, spring support U

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

78

393173R2

BLOCK

sway limiter

2шт.

79

404632R91

TURNBUCKLE

W/SCREWS, upper link

1шт.

80

398401R1

SCREW

ASSY, LH thread

1шт.

81

398404R1

SCREW

ASSY, RH thread

1шт.

82

406687R1

RETAINER

lower link pin

2шт.

393208R91

ACCESSORIES

PARTS ACCESSORY, three point hitch sway limiter, for tractors equipped with three point hitch & dual rear wheel attachment, consists of (2) block 393173R2, (2) pin 520175R1

1шт.

398622R91

STRIPPER PACKAGE

PARTS ACCESSORY, bushing & pin adapter, for use w/category II tools and implements when mounted on a category III three point hitch, consists of (1) bushing 398406R1, (1) pin 374132R1, (2) spacers 392004R1

1шт.
