Запчасти Case IH 21206 (K-02) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, TRACTORS WITH VERTICALLY ADJUSTABLE DRAWBAR Drawbars & Hitches

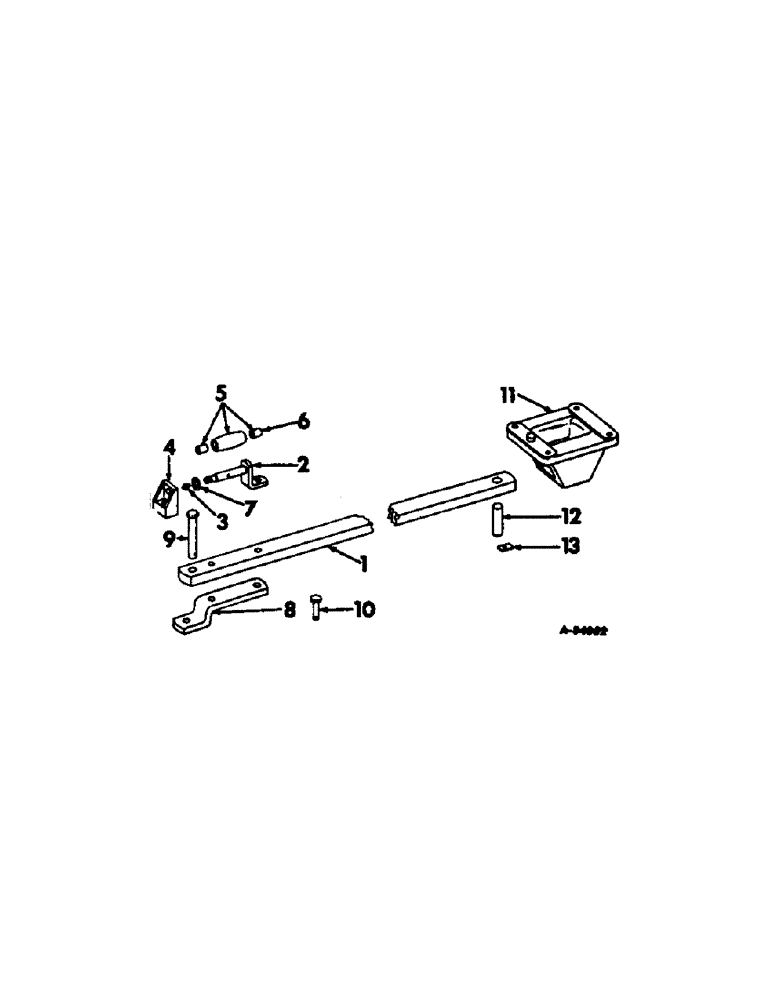

Схема запчастей Case IH 21206 - (K-02) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, TRACTORS WITH VERTICALLY ADJUSTABLE DRAWBAR Drawbars & Hitches
12
1
13
8
3
7
4
5
11
6
9
10
2

Артикул

Название

Примечание

Количество

ATTACHMENT, swinging drawbar, 391886R91, consists of all parts marked unit A

1шт.

ATTACHMENT, heavy duty swinging drawbar, 400271R93, consists of all parts marked unit B

1шт.

1

391877R1

DRAWBAR, swinging, unit A

1шт.

1

404487R1

DRAWBAR, swinging, unit B

1шт.

2

391873R11

SHAFT

ASSY, swinging drawbar roller

1шт.

220081

NUT

3/4-10 hex.

2шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

1шт.

271919

PIPE

SCREW, 3/4-10 x 4 hex-hd cap, unit B

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

391889R1

SUPPORT ASSY.

SUPPORT, swinging drawbar shaft rear

1шт.

271619

CIRCLIP

3/4-10 x 4 hex-hd cap

1шт.

5

391872R11

ROLLER ASSY.

ROLLER ASSY, swinging drawbar, unit A

1шт.

5

400299R11

ROLLER

ASSY, swinging drawbar, unit B

1шт.

6

391869R1

BUSHING

swinging drawbar roller

2шт.

7

391870R1

WASHER

swinging drawbar roller shaft

2шт.

8

391875R1

BRACKET, swinging drawbar guide, unit A

1шт.

8

400298R1

BRACKET

swinging drawbar, unit B

1шт.

9

391871R1

PIN, swinging drawbar clevis, unit A

1шт.

9

400300R1

CLEVIS PIN

PIN ASSY, drawbar clevis, unit B

1шт.

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

10

P14608

AXLE PIN

PIN, 3/4 x 2-3/4 headed, drawbar roller stop

2шт.

520175R1

CLIP

PIN, quick attachable cotter

2шт.

11

391890R11

SUPPORT

ASSY, swinging drawbar pivot, not part of swinging drawbar attachment

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

12

57654D

PIVOT PIN

PIN, drawbar pivot, unit A

1шт.

12

527487R1

PIN

ASSY, swinging drawbar pivot

1шт.

Q3486

WASHER

1-13/32 x 2-1/4 x .-598, unit B

5шт.

13

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

400305R93

1шт.
