Запчасти Case IH 21206 (H-07) - CONTROLS, GEAR SHIFT LEVERS Controls

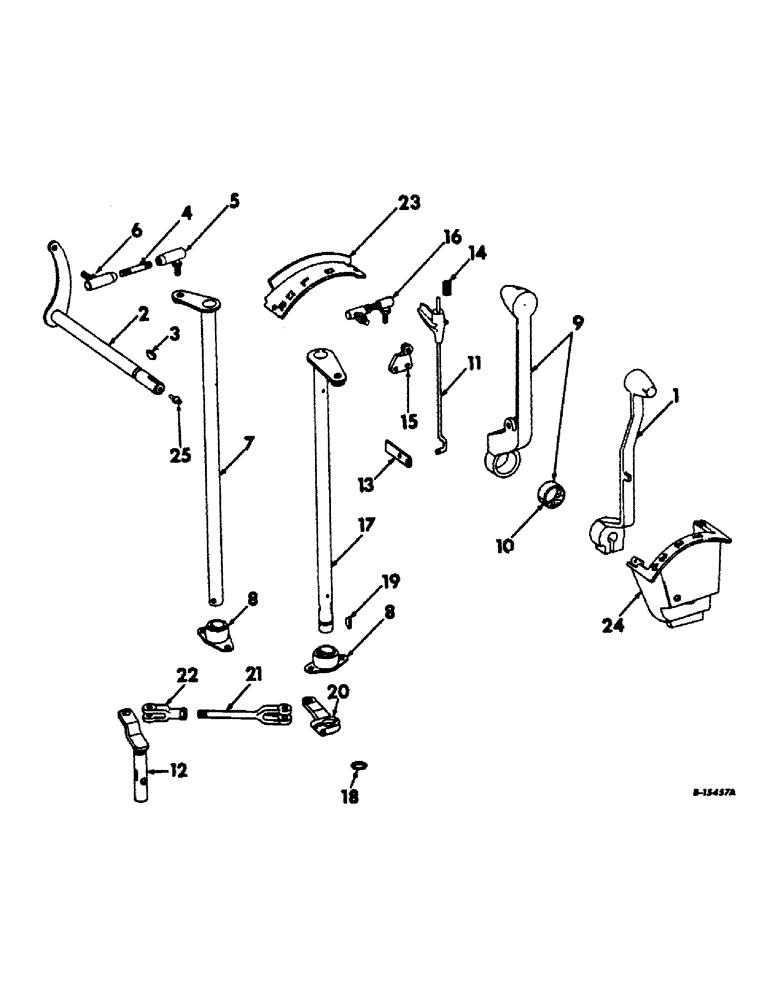

Схема запчастей Case IH 21206 - (H-07) - CONTROLS, GEAR SHIFT LEVERS Controls
5
10
2
18
1
8
16
7
4
8
17
6
11
9
24
3
23
13
19
25
15
12
20
14
22
21

Артикул

Название

Примечание

Количество

1

382502R1

HANDLE

selective transmission shift

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

2

382503R21

SHAFT

ASSY, selective transmission shift cross

1шт.

3

106751

KEY

3/16 x 3/4 woodruff 9, selective transmission shift cross shaft

1шт.

4

382505R1

TURNBUCKLE

LINK, selective transmission shift

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

RH thd Jam, 5/16"-24, G5

1шт.

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 hex. jam, LH thd

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

2шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

5

393352R91

JOINT TURNING

JOINT, 5/16-24 LH thd ball, selective transmission shift link

1шт.

6

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type sp, selective transmission shift link

1шт.

7

393519R91

SHAFT

ASSY, selective transmission drive shaft

1шт.

8

382508R91

BEARING ASSY,0.752" ID x 0.81"

BUSHING, selective transmission shift drive shaft

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

351549R1

WASHER

.344 x .750 x .164

4шт.

9

382509R31

LEVER

HANDLE ASSY, range transmission shift

1шт.

10

382510R1

BUSHING,34.96mm ID x 38.11mm OD x 22.23mm L

range transmission shift handle

1шт.

11

382512R1

ARM

ROD, range transmission handle lock actuating

1шт.

426706

COTTER PIN,3/64" x 5/16"

Pin, Split (Collar), 3/64" x 5/16"

1шт.

12

391018R21

SHAFT

ASSY, camp pivot, range transmission

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

13

382513R1

LOCK

range transmission selector handle

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 rod end

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

14

385154R1

SPRING

range transmission handle lock

1шт.

15

393517R11

LEVER

range transmission selector handle

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

16

393354R91

BALL JOINT

LINK ASSY, upper range transmission selector

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

17

393518R91

SHAFT

ASSY, range transmission selector drive

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, range transmission selector drive shaft

1шт.

19

218217

KEY

3/16 x 5/8 woodruff 61, range transmission selector drive shaft

1шт.

20

382518R1

ARM

range transmission selector drive

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

21

382520R11

LINK

ASSY, lower range transmission selector

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

22

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8 short adj rod end, lower range transmission selector link

1шт.

140549

PIN

3/8 x 1-3/32 rod end

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

23

383102R1

COVER, shift handle inner

1шт.

24

383103R2

COVER

shift handle outer

1шт.

112879

SCREW, 10-24 x 5/16 F-HD, slt mach

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

119901

SCREW, 1/4-20 x 3-1/2 F-HD slt mach

1шт.

25

66584D

FITTING

3/16 drive type str lub, selective transmission shift cross shaft

1шт.

Выбрано товаров: 48
