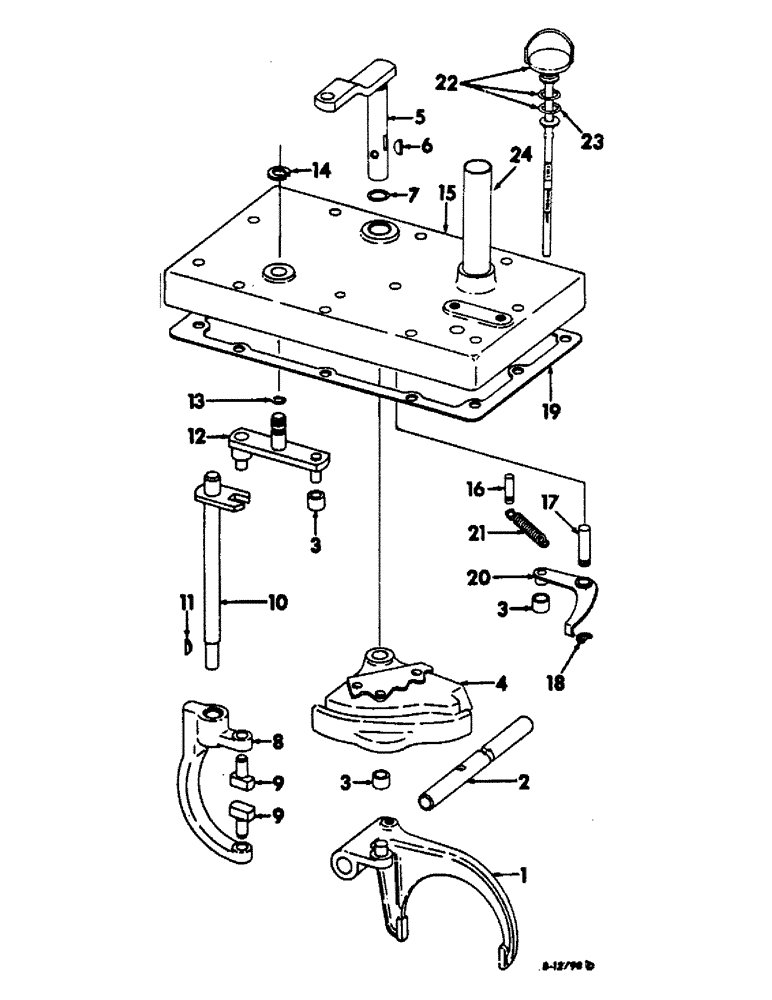

Запчасти Case IH 21206 (H-05) - CONTROLS, GEAR SHIFT MECHANISM, RANGE TRANSMISSION Controls

1

393408R91

FORK TEDDER

FORK ASSY, hi-lo shift

1шт.

2

393407R1

PIN,19.05mm OD x 190.5mm L

SHAFT, hi-lo shift fork

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

3

380115R2

ROLLER

cam

3шт.

4

380306R51

CAM

ASSY, range transmission shift

1шт.

5

391018R21

SHAFT

ASSY, cam pivot

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

6

106751

KEY

3/16 x 3/4 woodruff 9, cam pivot shaft

1шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, cam pivot shaft

1шт.

8

380308R1

FORK

reverse shift

1шт.

9

380309R1

PAD

reverse shift fork

2шт.

19371R1

PIN,1/8" x 3/4", Coiled

2шт.

10

380310R11

SHAFT

ASSY, reverse shift fork

1шт.

11

218217

KEY

3/16 x 5/8 woodruff 61, reverse shift arm

1шт.

12

380312R13

ARM

ASSY, reverse shift pivot

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, reverse shift pivot arm shaft

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

1шт.

14

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, , reverse shift pivot arm shaft #62, .480" Dia, E-Type

1шт.

15

380314R41

COVER

W/PIN, 382563R1 & pin 382564R1, rear frame front

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

10шт.

16

382563R1

PIN

shift control arm spring anchor

1шт.

17

382564R1

PIN

shift control arm pivot

1шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

18

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shift control arm pivot pin #50, .392" Dia, E-Type

1шт.

19

380315R1

GASKET

rear frame front cover

1шт.

20

382565R21

ARM ASSY.

ARM ASSY, shifter control

1шт.

21

383997R1

SPRING

shifter control arm

1шт.

22

386445R91

GAUGE

ASSY, oil level, furnish gauge 398311R91

1шт.

22

398311R91

GAUGE

ASSY, oil lever

1шт.

23

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

2шт.

24

386450R1

GUIDE

oil level gauge

1шт.
