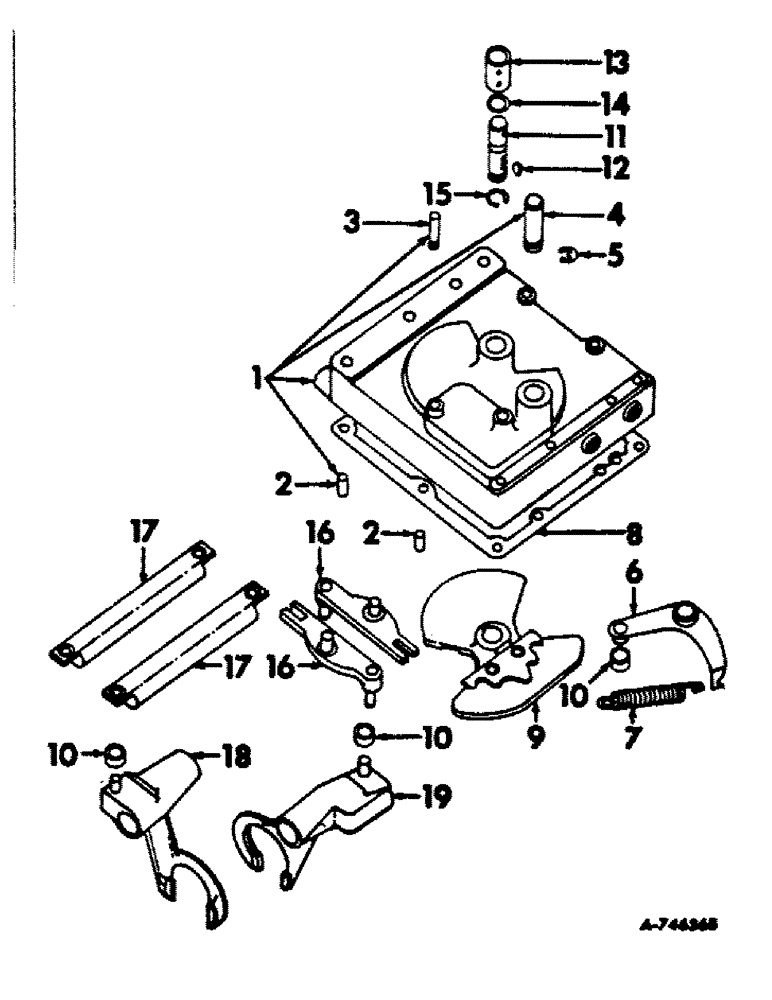

Запчасти Case IH 21206 (H-04) - CONTROLS, GEAR SHIFT MECHANISM, SPEED TRANSMISSION Controls

1

380111R11

COVER

ASSY, clutch housing, furnish cover 399045R11 (2), spacers & screws 21079R1 (4)

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

1

399045R11

COVER

ASSY, clutch housing

1шт.

403297R1

SPACER, battery tray

2шт.

21079R1

SCREW, 3/8-16 x 1-1/2 hex-hd cap w/nylon pellet

4шт.

2

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

3

382563R1

PIN

shifter control arm spring anchor

1шт.

4

382564R1

PIN

shifter control arm pivot

1шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

5

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

6

382565R21

ARM ASSY.

ARM ASSY, shifter control

1шт.

7

383997R1

SPRING

shifter control arm

1шт.

8

380112R1

GASKET

clutch housing cover

1шт.

9

380114R22

CAM

ASSY, clutch housing shift

1шт.

10

380115R2

ROLLER

cam

3шт.

11

380116R3

SHAFT

cam pivot

1шт.

12

106751

KEY

3/16 x 3/4 woodruff 9, cam pivot shaft

1шт.

13

380117R1

COUPLING,19.08mm ID x 33.27mm OD x 50.8mm L

cam retaining

1шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

Pin, Grooved, 1/4" x 1 1/4", Type A

2шт.

14

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, cam pivot shaft

1шт.

15

603570R1

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, , cam pivot shaft #75, .574" Dia, E-Type

1шт.

16

380120R11

ARM

ASSY, shift fork

2шт.

17

380122R1

RAIL

shift

2шт.

156454

SCREW,Cross Flat Hd, 5/16" - 18 x 7/8"

5/16-18 x 7/8 cr-rec-f-hd mach

4шт.

18

380123R21

FORK

ASSY, 1st & 2nd speed shift

1шт.

19

380123R21

FORK

ASSY, 3rd & 4th speed shift

1шт.
