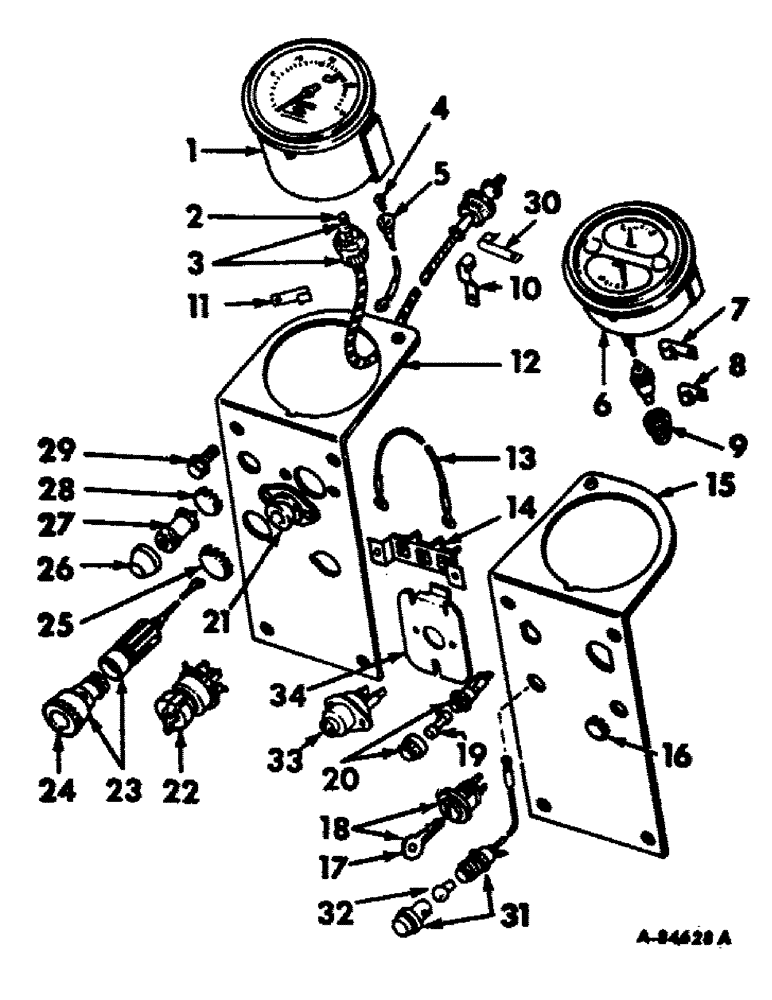

Запчасти Case IH 21206 (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS Controls

1

388589R91

TACHOMETER

SPEEDOMETER-TACHOMETER ASSY

1шт.

2

393329R91

CORE

ASSY, tachometer flexible drive shaft

1шт.

3

393328R91

CABLE

SHAFT ASSY, tachometer flexible drive

1шт.

4

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer

1шт.

5

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

1шт.

6

382733R93

CLEANER

CLUSTER ASSY, gauge

1шт.

7

355574R1

CLIP

capillary tube

1шт.

8

351699R1

CLIP, capillary tube

1шт.

9

51510D

BUSHING

capillary tube bulb installation

1шт.

10

384558R1

CLIP

tachometer flexible drive shaft short, on clutch housing upper RH rear tapped hole

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

11

363812R1

CLIP, tachometer flexible drive shaft, on torque amplifier handle support bracket

1шт.

12

382724R91

PANEL

ASSY, instrument LH

1шт.

13

382676R91

CABLE

ASSY, horn switch to junction block, International tractors

1шт.

13

357929R92

ELECTRIC CABLE

CABLE ASSY, horn switch to junction block, Farmall tractors

1шт.

14

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

392439R91

PANEL ASSY, instrument RH

1шт.

16

383621R1

PLUG, choke control hole button

1шт.

17

382458R2

KEY

switch

1шт.

18

403562R1

IGNITION SWITCH

SWITCH ASSY, key

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

19

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

19

106653

FUSE

cartridge type agc 20, tractors with cab

1шт.

20

376852R91

HOUSING

ASSY, fuse

1шт.

21

366317R91

IGNITION SWITCH

SWITCH ASSY, push button

1шт.

120611

NUT,#10 - 32

10-32 cd or zn-pltd sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 cd or zn, pltd slt, rd, hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

376851R91

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

23

382671R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

24

378781R91

PACKAGE

UNIT, pop-out

1шт.

25

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

26

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

27

373611R91

IGNITION SWITCH

SWITCH, horn, less cap

1шт.

28

374342R1

PLUG

horn switch

1шт.

29

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel mounting

10шт.

30

349059R91

CLIP, tachometer flexible drive shaft, on oil cooler outlet elbow

1шт.

31

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

32

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, transmission oil light flasher

1шт.

33

397940R92

IGNITION SWITCH

SWITCH ASSY, solenoid push button

1шт.

34

395073R1

PANEL

push button ether starting

1шт.
