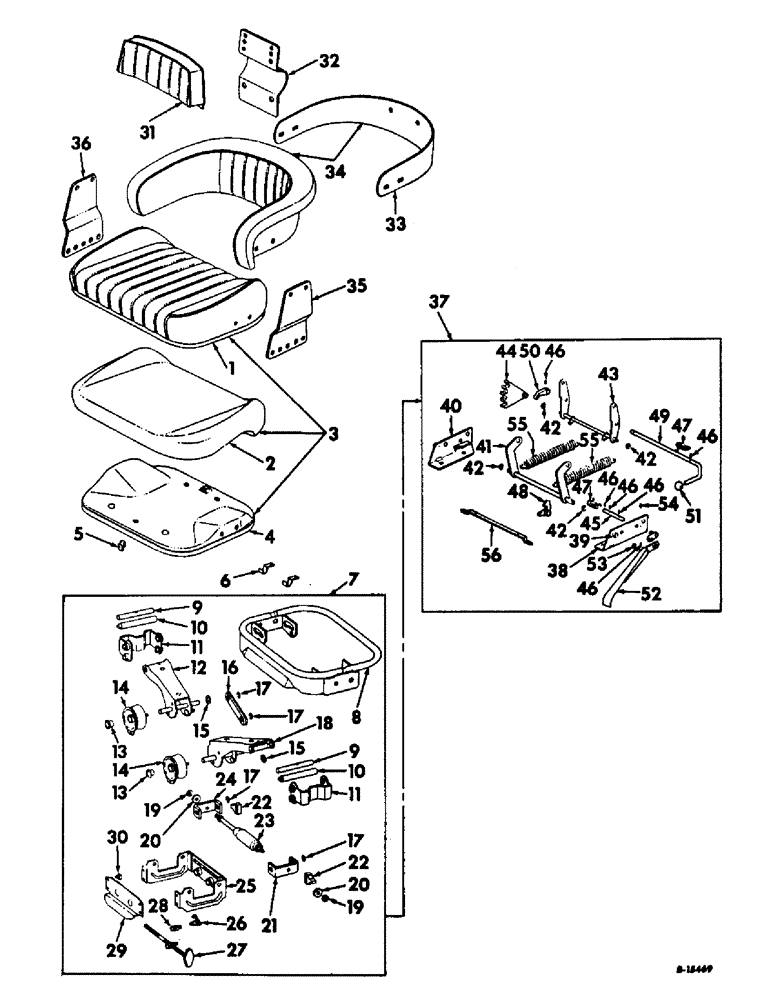

Запчасти Case IH 21206 (M-02) - SEATS AND MISCELLANEOUS, VERTICAL ACTING SEAT (10) - OPERATORS PLATFORM
№
Артикул
Название
Примечание
Количество
1
400711R1
SEAT CUSHION
CUSHION ASSY, seat
1шт.
2
386913R1
COVER
ASSY, seat cushion
1шт.
3
386912R1
PAD, moulded seat
1шт.
4
381245R1
PAN ASSY, seat
1шт.
5
379385R1
CLIP
covering retainer
4шт.
6
379321R1
CLAMP,27.74mm ID, 8.71mm Bolt Hole, J Type
seat
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
7
379319R93
SUPPORT
SUSPENSION ASSY, vertical acting
1шт.
8
380724R1
FUNNEL
FRAME, hanger
1шт.
9
380722R1
SHAFT
short link upper
2шт.
443039
PIN
1/4 x 1-1/4 type 3 groove
2шт.
10
380723R1
SHAFT
short link lower
2шт.
443148
GROOVED PIN,3/16" x 1", Type E
Pin, Grooved, 3/16" x 1", Type E
2шт.
11
380721R1
DRAG LINK
LINK, short
2шт.
12
380713R1
LEVER
LH spring
1шт.
13
193643R1
BUSHING,19.18mm ID x 25.4mm OD x 14.29mm L
BEARING, flanged
2шт.
14
380712R1
INSULATOR BLOCK
SPRING, rubber
2шт.
15
380718R1
WASHER
49/64 x 1-1/4 x 14 ga
2шт.
16
380717R1
LINK
stabilizer
1шт.
17
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, #50, .392" Dia, E-Type
4шт.
18
380714R1
LEVER
RH spring
1шт.
19
SL716
WASHER
13/32 x 1-1/8 x 14 ga
2шт.
20
381239R1
RUBBER WASHER
rubber
2шт.
21
380715R1
YOKE
BRACKET, LH shock
1шт.
22
381238R1
BUMPER
rubber
2шт.
23
372751R91
SHOCK ABSORBER
ABSORBER, shock
1шт.
232-4616
LOCK NUT,3/8"-24, GC
NUT, 3/8-24 C-Z hex. lock
2шт.
24
380716R1
YOKE
BRACKET, RH shock
1шт.
25
380711R2
HOUSING
spring
1шт.
26
380726R1
SPRING
INDICATOR, weight
1шт.
27
380725R91
STUD
ASSEMBLY, adjuster
1шт.
142488
GROOVED PIN,1/8" x 1", Type A
Pin, Grooved, 1/8" x 1", Type A
2шт.
28
372739R1
PIN, adjusting
1шт.
29
380719R1
SUPPORT
BLUKHEAD, front
1шт.
30
380720R1
BOLT,5/16"- 18 x 0.75"
front bulkhead
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
31
387177R91
CUSHION
ASSY, upper back
1шт.
32
387178R1
SUPPORT
upper back cushion
1шт.
21533R1
BOLT
SCREW, 5/16-18 x 5/8 C-Z hex-hd cap
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
33
387175R1
LARGE PLATE
PLATE, cover
1шт.
180118
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
SCREW, 3/8-16 x 5/8 C-Z hex-hd cap
2шт.
161857
SHAFT
8-15 x 3/8 cr-rec pan-hd type A tapping
3шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
34
387174R91
CUSHION
ASSY, back
1шт.
35
387172R1
SUPPORT
back cushion LH
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 C-Z hex-hd cap
2шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
36
387173R1
SUPPORT
back cushion RH
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 C-Z hex-hd cap
2шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
37
381292R91
BASE ASSY, adjustable
1шт.
379273R1
BOLT,Hex, 1/2" - 13 x 1.28"
BOLT, 1/2-13 x 9/32 shoulder
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
180174
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
38
383292R91
ANGLE
SUPPORT, LH side
1шт.
39
384780R1
BEARING
LH side support
1шт.
40
383293R1
SUPPORT, RH side
1шт.
41
380694R1
LEVER
front
1шт.
42
373523R1
SNAP RING,#62, .480" Dia, E-Type
Ring, Retaining, #62, .480" Dia, E-Type
4шт.
43
383294R1
LEVER, rear
1шт.
44
380697R2
SECTOR
gear
1шт.
45
380698R1
SHAFT
lower pawl
1шт.
46
443148
GROOVED PIN,3/16" x 1", Type E
Pin, Grooved, 3/16" x 1", Type E
6шт.
47
380699R1
SPRING
torsion
2шт.
48
380700R1
PAWL
lower
1шт.
49
380701R1
ROD, upper pawl release
1шт.
50
380702R1
PAWL
upper
1шт.
51
206286R1
KNOB
plastic
1шт.
52
383295R1
RELEASE, foot
1шт.
495-21044
WASHER,3/8"
(7/16 x 1 x .083 C-Z) 3/8"
1шт.
53
380704R1
WASHER, spring wave
1шт.
54
142488
GROOVED PIN,1/8" x 1", Type A
Pin, Grooved, 1/8" x 1", Type A
1шт.
55
383296R1
VALVE SPRING
SPRING, linkage main
2шт.
56
383297R1
STRAP, main spring mounting
1шт.
2751019R1
DECAL
PRODUCT GRAPHICS, seat adj decal
1шт.
Выбрано товаров: 83
