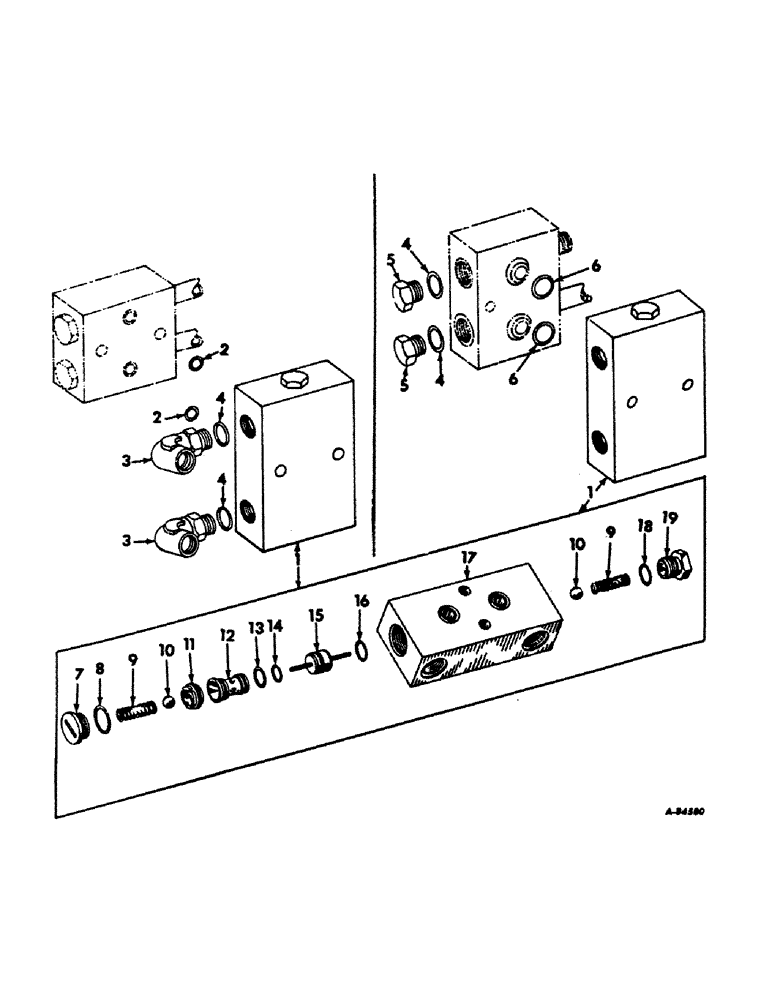

Запчасти Case IH 21206 (F-27) - HYDRAULIC SYSTEM, DOUBLE ACTING CHECK VALVE AND CONNECTIONS (07) - HYDRAULIC SYSTEM

ATTACHMENT, double acting check valve, 387050R91, tractors with auxiliary valves with rear manifold, for field application component parts must be ordered from parts stock, consists of all parts marked unit A

1шт.

ATTACHMENT, double acting check valve, 387845R91, tractors with second rear manifold, for field applications component parts must be ordered from parts stock, consists of all parts marked unit B

1шт.

1

374083R92

VALVE

ASSY, double acting check, units A & B

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2 for unit A Hex, 3/8"-16 x 2", G5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap, 2 for unit B

1шт.

102635

NUT,3/8"-16, G5

2 for unit B 3/8"-16, G5

1шт.

2

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, check valve, 2 for unit A

1шт.

3

371357R91

ELBOW

ASSY, junction block, 2 for unit A

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for units A & B

1шт.

5

9403334

PLUG,7/8"-14, 37 Degree

7/8-14 C-Z deg hyd flared tube, 2 for unit B

1шт.

6

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, 2 for unit B

1шт.

7

374088R1

PLUG

check valve

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve plug

1шт.

9

372649R1

SPRING

check valve

2шт.

10

17016R1

BALL,1/2" Dia

2шт.

11

374172R1

NUT

check valve ball retainer

1шт.

12

374087R21

RETAINER

ASSY, check valve ball

1шт.

13

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

14

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer, small

1шт.

15

374085R11

PISTON

ASSY, check valve actuator

1шт.

16

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, piston

1шт.

17

BLOCK ASSY, check valve, order check valve, 374083R92

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve plug

1шт.

19

374089R1

PLUG

check valve

1шт.
