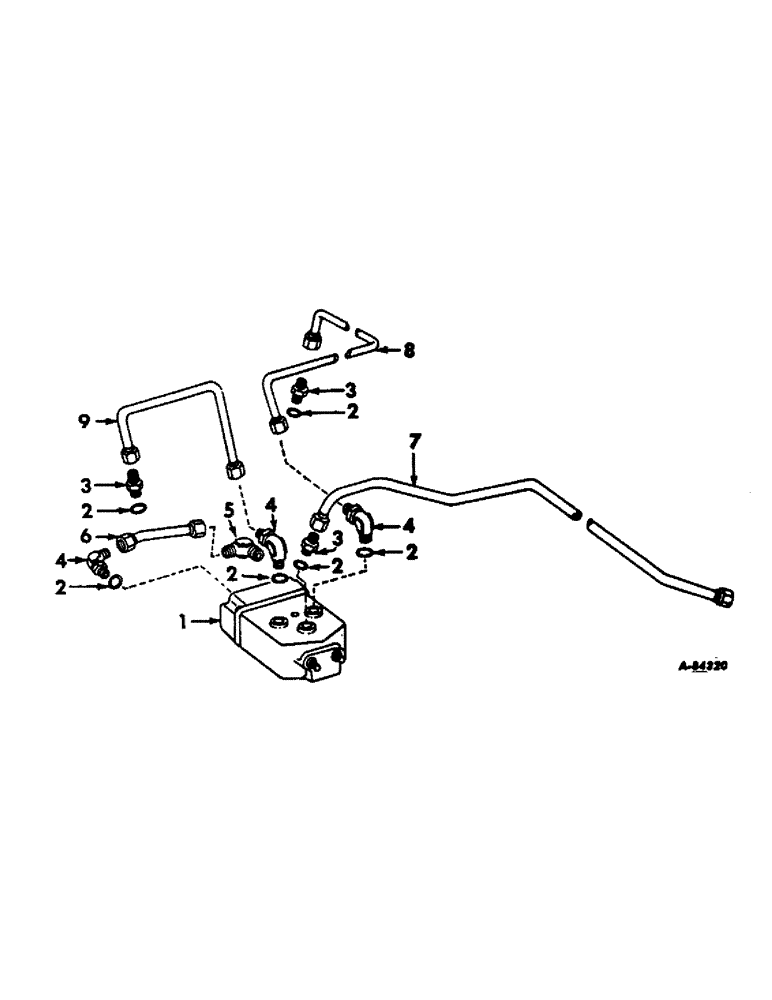

Запчасти Case IH 21206 (F-21) - HYDRAULIC SYSTEM, POWER BRAKE VALVE AND CONNECTIONS (07) - HYDRAULIC SYSTEM

1

384186R93

VALVE

ASSY, power brake, for components see list of parts under details of power brake valve

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

3шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

3шт.

5

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

3/8 NPTF 37 deg hyd flared tube 90 deg

1шт.

6

384224R11

HYD TUBE,0.375" OD, 4.24, 1.88" Length

PIPE ASSY, hyd brake return

1шт.

7

384221R11

TUBE

PIPE ASSY, hyd brake pressure

1шт.

8

384222R11

TUBE

PIPE ASSY, LH brake

1шт.

9

384223R11

PIPE

ASSY, RH brake, furnish pipe assy 401344R1 & connector 9410202

1шт.

9

401344R1

PIPE

ASSY, RH brake

1шт.
