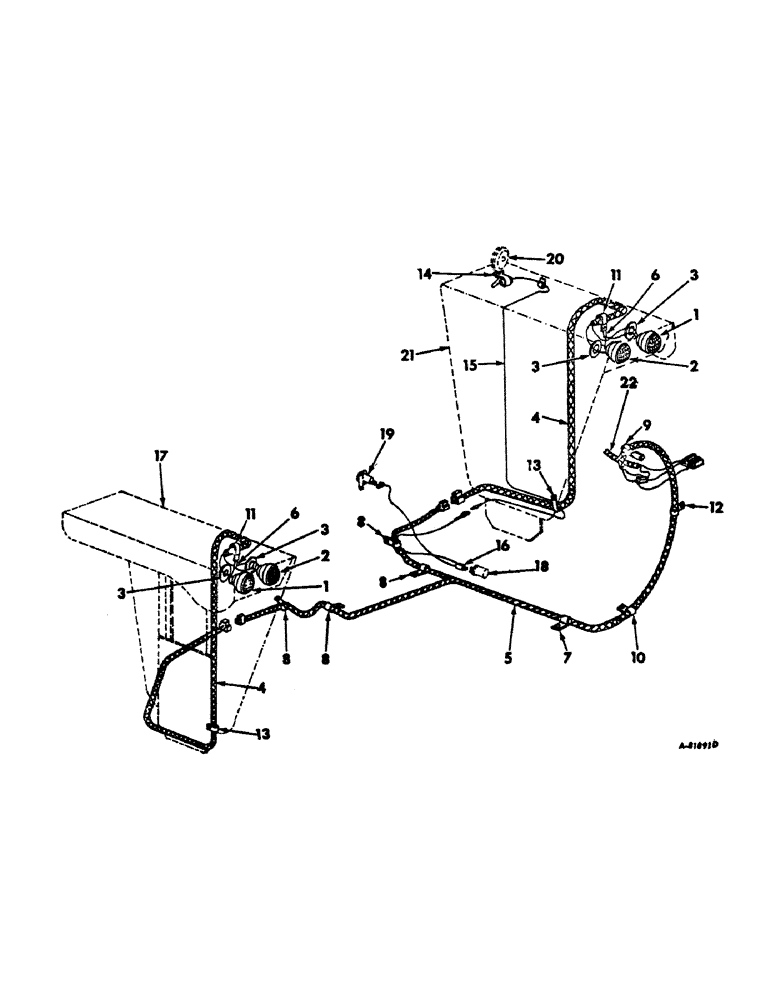

Запчасти Case IH 21206 (G-13) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, FARMALL TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS

391991R92

FENDER

PARTS ACCESSORY, deluxe fenders w/adjustable lights, for sheet metal components refer to deluxe flat top fenders w/adj headlights listing, section A

1шт.

1

388945R91

HEADLIGHT

LIGHT ASSY, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head light

4шт.

4

388949R91

HARNESS

CABLE ASSY, fender lighting

2шт.

5

388948R91

HARNESS

ASSY, lighting cable

1шт.

6

404393R1

CABLE

ASSY, headlamp to ground junction, replaces 374490R91

2шт.

7

383622R1

CLIP

lighting cable harness, on rear frame cover front mounting bolt

1шт.

8

384558R1

CLIP

lighting cable harness (4), on rear frame cover 3rd mounting bolt from front LH & RH side (2), on LH & RH axle carrier top front mounting bolt (2)

1шт.

9

363660R1

CLIP

light cable harness, twisted, on torque amplifier handle support bracket bottom front bolt

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short, on rear frame cover LH front mounting bolt

1шт.

11

362121R1

CLIP

fender lighting cable, on LH & RH headlight panel

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

362121R1

CLIP

fender lighting cable, on voltage regulator upper LH mounting bolt

1шт.

13

366460R1

CABLE CLIP

CLIP, fender lighting cable, short, on LH or RH fender support front mounting bolt

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

179814

SPACER

2шт.

14

358986R1

CABLE CLIP

CLIP, flashing light cable, on light mounting stud, not included in parts accessory

1шт.

15

394343R91

CABLE ASSY, flashing light, not included in parts accessory

1шт.

16

394131R91

CABLE ASSY, flashing light, not included in parts accessory

1шт.

17

FENDER ASSY, LH, fender to deluxe fenders listing, section A

1шт.

18

FLASHER ASSY, refer to starting and lighting listing, this section

1шт.

19

FENDER ASSY, RH, refer to deluxe fenders listing, section A

1шт.

20

LIGHT ASSY, flasher warning, refer to starting and lighting listing, this section

1шт.

21

SOCKET ASSY, breakaway connector, refer to starting and lighting listing, this section

1шт.

22

HARNESS ASSY, rear main cable, refer to starting and lighting listing, this section

1шт.

106653

FUSE

cartridge type AGC-20

1шт.
