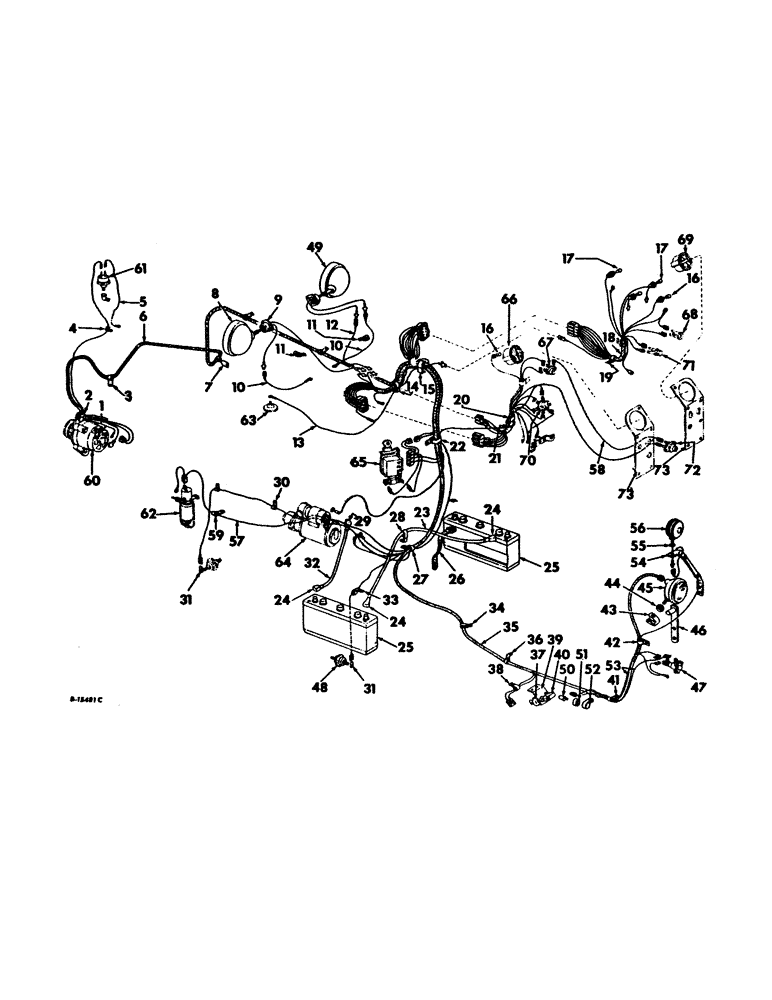

Запчасти Case IH 21206 (G-07) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL TRACTORS (06) - ELECTRICAL SYSTEMS

1

385006R91

CABLE ASSY, Serial Range: alternator-ground

1шт.

2

362123R1

CLIP

front main harness, on alternator brace mounting bolt

1шт.

3

399657R1

CLIP

front main harness, in front side of RH fuel tanks front support

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

366460R1

CABLE CLIP

CLIP, vaccum switch cable, on air cleaner RH bracket front mounting bolt

1шт.

5

377120R92

CABLE ASSY, vaccum, Serial Range: switch-ground

1шт.

6

391843R92

HARNESS

ASSY, front main cable, tractor serial no. 11792 & below

1шт.

6

398549R1

HARNESS

ASSY, main cable, front, tractor serial no. 11793 & above

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

7

366660R1

CLIP, front main harness, on fuel tank lower rear mounting bolt

1шт.

8

387727R91

LIGHT

ASSY, sealed beam hed, LH, only serviceable item is sealed beam unit, 371443R91

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

1шт.

9

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

10

370387R91

CABLE

ASSY, head, Serial Range: light-ground

2шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on steering and gear selector support

2шт.

12

383595R91

CABLE ASSY, harness to head light junction

1шт.

13

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector

1шт.

14

370383R1

CLIP

rear main harness, on steering & gear selector support LH front mounting bolt

1шт.

15

362666R1

CLIP

front & rear main harness, on selective transmission drive shaft bushing RH mounting bolt

1шт.

16

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

2шт.

17

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

3шт.

18

392444R91

HARNESS

ASSY, panel cable RH

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness, on range transmission selector drive shaft bushing rear mounting bolt

1шт.

20

384557R1

CLIP

LH panel harness, on junction block RH mounting stud

1шт.

21

383607R91

HARNESS

ASSY, panel cable LH

1шт.

22

363117R1

CLIP

front & rear main cable harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, battery cable

2шт.

24

383619R1

COVER

battery cable terminal

3шт.

25

392244R91

BATTERY, prestolite 3EH-A9Y, 6 volt

2шт.

26

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

27

362123R1

CLIP

rear main harness, on clutch housing cover front RH, 1st from center mounting bolt

1шт.

28

370383R1

CLIP

battery to battery cable, on clutch housing cover RH front, first from center mounting bolt

1шт.

29

364910R1

BOOT

COVER, battery terminal

1шт.

30

384555R1

CLIP

engine oil pressure switch cable, Farmall tractors w/serial no. & below

1шт.

30

365524R1

CLAMP

CLIP, engine oil pressure switch cable, Farmall tractors w/serial no. & above, on clutch housing upper LH front tapped hole

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

31

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch straight

2шт.

32

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

33

384556R1

CLAMP

CLIP, transmission oil pressure switch cable, on rear selector LH support front mounting bolt

1шт.

34

366460R1

CABLE CLIP

CLIP, rear cable harness, on rear frame front cover LH front mounting bolt

1шт.

35

392442R91

HARNESS

ASSY, rear main cable

1шт.

36

384558R1

CLIP

rear main harness, on rear frame cover LH side front mounting bolt

1шт.

37

382728R91

SWITCH

safety starting

1шт.

38

366460R1

CABLE CLIP

CLIP, rear main harness, on safety starting switch bracket mounting bolt

1шт.

39

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

40

384046R1

STEM

ROD, safety starting switch

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

41

383622R1

CLIP

rear main harness, on rear frame cover LH side rear mounting bolt

1шт.

42

383622R1

CLIP

cable harness, on rear light bracket upper mounting bolt

1шт.

43

350920R1

CLAMP

combination rear light

1шт.

44

365503R1

SPACER

combination rear light

1шт.

45

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are sealed beam unit, 371461R91 & lamp 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

46

382407R11

BAR

BRACKET ASSY, rear light

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

47

370378R91

SOCKET

ASSY, breakaway connector

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

376855R92

SWITCH

transmission oil pressure

1шт.

49

387728R91

LIGHT

ASSY, sealed beam head, RH, only serviceable item is sealed beam unit, 371443R91

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

1шт.

50

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

51

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

52

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

53

394130R91

CABLE ASSY, flashing safety warning light

1шт.

54

394135R1

BRACE, flashing warning mounting

1шт.

55

394262R1

WASHER

GASKET, flashing warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

56

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 and lens, guide, 396585R1 or lens, dietz, 899280R1

1шт.

57

395076R1

CABLE

ASSY, ether starting

1шт.

58

395077R1

CABLE

ASSY, push button switch

1шт.

59

384555R1

CLIP

ether starting cable, Farmall tractors w/serial no. 8383 & below

1шт.

59

365524R1

CLAMP

CLIP, ether starting cable, Farmall tractors w/serial no. 8384 & above

1шт.

60

ALTERNATOR GENERATOR ASSY, refer to alternator generator listing, this section

1шт.

61

SWITCH ASSY, air cleaner vacuum, refer to fuel system section E

1шт.

62

SOLENOID ASSY, ether starting, refer to ether starting listing, section E

1шт.

63

SENSING UNIT ASSY, fuel gauge, refer to fuel tank support and piping listing section E

1шт.

64

MOTOR ASSY, cranking, refer to cranking motor listing, this section

1шт.

65

REGULATOR ASSY, voltage, refer to alternator generator and connections listing, this section

1шт.

66

TACHOMETER ASSY, refer to engine controls and instruments listing, section H

1шт.

67

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

68

SWITCH ASSY, ignition, refer to engine control and instruments listing, section H

1шт.

69

CLUSTER ASSY, gauge, refer to engine controls and instruments listing, section H

1шт.

70

SWITCH ASSY, lighting, refer to engine controls and instruments lighting, section H

1шт.

71

HOUSING ASSY, fuse, refer to engine controls and instruments, section H

1шт.

72

SWITCH ASSY, ether push button, refer to ether starting listing section E

1шт.

73

PANELS, instrument LH and RH, refer to engine controls and instruments, section H

1шт.

395470R1

CABLE ASSY, alternator dual charge & load circuit, tractors w/air conditioned cab

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.
