Запчасти Case IH 21206 (G-06) - ELECTRICAL SYSTEM, BATTERY TRAY (06) - ELECTRICAL SYSTEMS

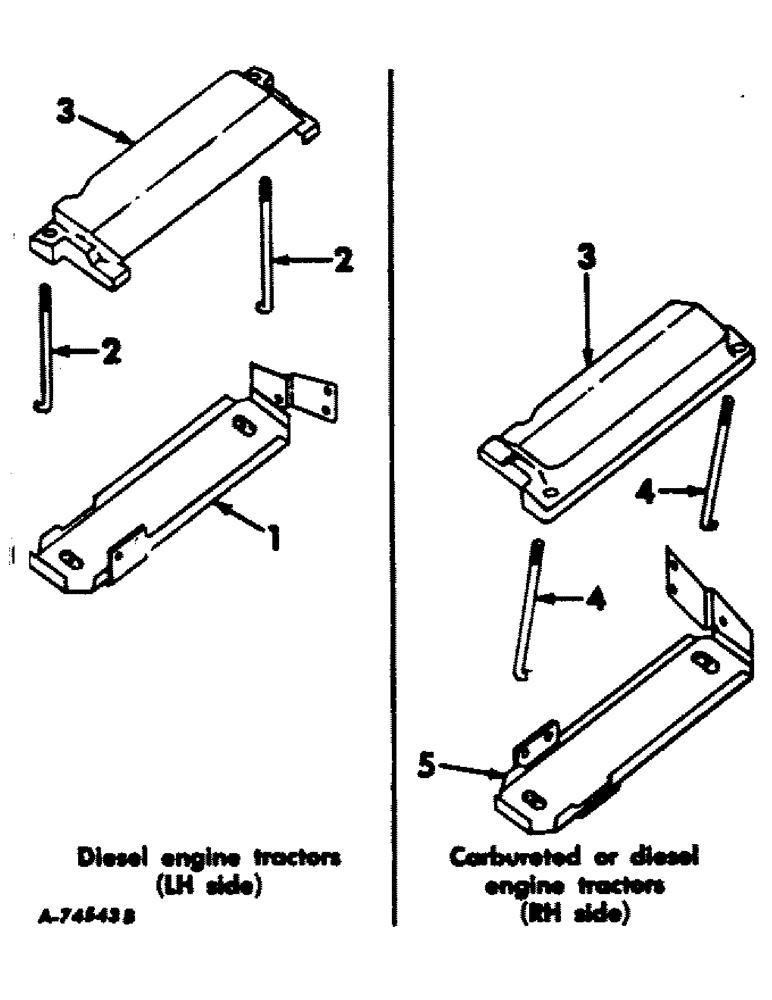

Схема запчастей Case IH 21206 - (G-06) - ELECTRICAL SYSTEM, BATTERY TRAY (06) - ELECTRICAL SYSTEMS
3
5
4
4
2
1
3
2

Артикул

Название

Примечание

Количество

1

380409R91

TRAY ASSY, battery LH, furnish tray 403529R1

1шт.

1

403529R1

TRAY ASSY, battery LH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

2

377837R1

ROD

battery hold down

4шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

4шт.

3

380415R11

COVER

ASSY, battery

1шт.

4

377837R1

ROD

battery hold down

4шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

4шт.

5

384491R91

TRAY ASSY, battery RH, furnish tray 403530R1

1шт.

5

403530R1

TRAY

ASSY, battery RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

Выбрано товаров: 17
