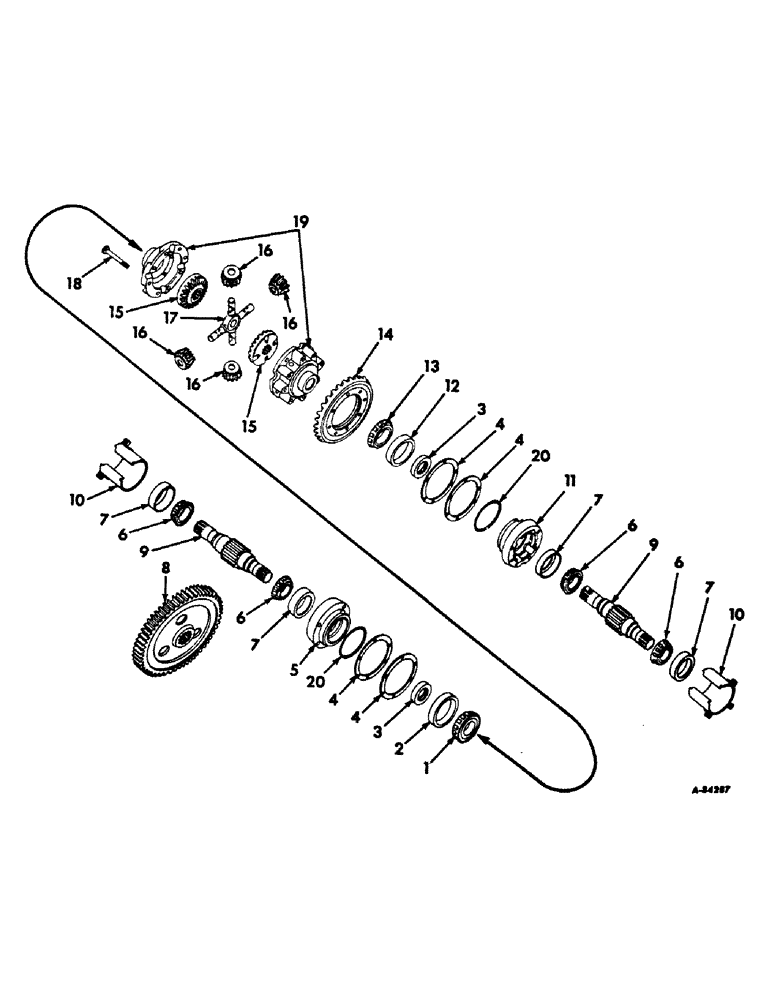

Запчасти Case IH 21206 (B-11) - POWER TRAIN, DIFFERENTIAL (03) - POWER TRAIN

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

BEARING, differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

391689R91

OIL SEAL

SEAL, differential roller brg retainer oil

2шт.

4

380202R1

SHIM

differential roller brg retainer light

4шт.

4

380203R1

SHIM

differential roller brg retainer med

1шт.

4

380204R1

SHIM

differential roller brg retainer HV

1шт.

4

380205R1

SHIM

differential roller brg retainer extra light

1шт.

4

385155R1

SHIM

differential roller brg retainer .0025, .0035

1шт.

5

391688R1

RETAINER, differential roller brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

BEARING, bull pinion shaft roller cone

4шт.

7

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion shaft roller cup

4шт.

8

391691R1

GEAR

bull, 73T

2шт.

9

391690R1

SHAFT

bull pinion & brake, 13T

2шт.

10

391814R11

SHIELD ASSY, bull pinion brg oil

2шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

10-24 x 7/16 hex-hd mach

6шт.

11

391685R1

RETAINER, differential roller brg RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, differential roller RH cup

1шт.

13

ST2104

BEARING ASSY

BEARING, differential roller RH cone

1шт.

14

GEAR, drive bevel, 49T, order match set of bevel gears, 395759R91

1шт.

15

380190R1

GEAR

differential bevel, 28T

2шт.

16

361061R1

GEAR

PINION, differential bevel, 15T

4шт.

17

393637R1

SPIDER

differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

391681R91

CASE

ASSY, differential

1шт.

20

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/8 x 1/8, differential brg retainer

2шт.

395759R91

SET

BEVEL GEARS, matched set, consists of 1 gear 388916R1 (NSS), 1 shaft 395014R1 (NSS), 1 tag 1082564R1 (NSS)

1шт.
