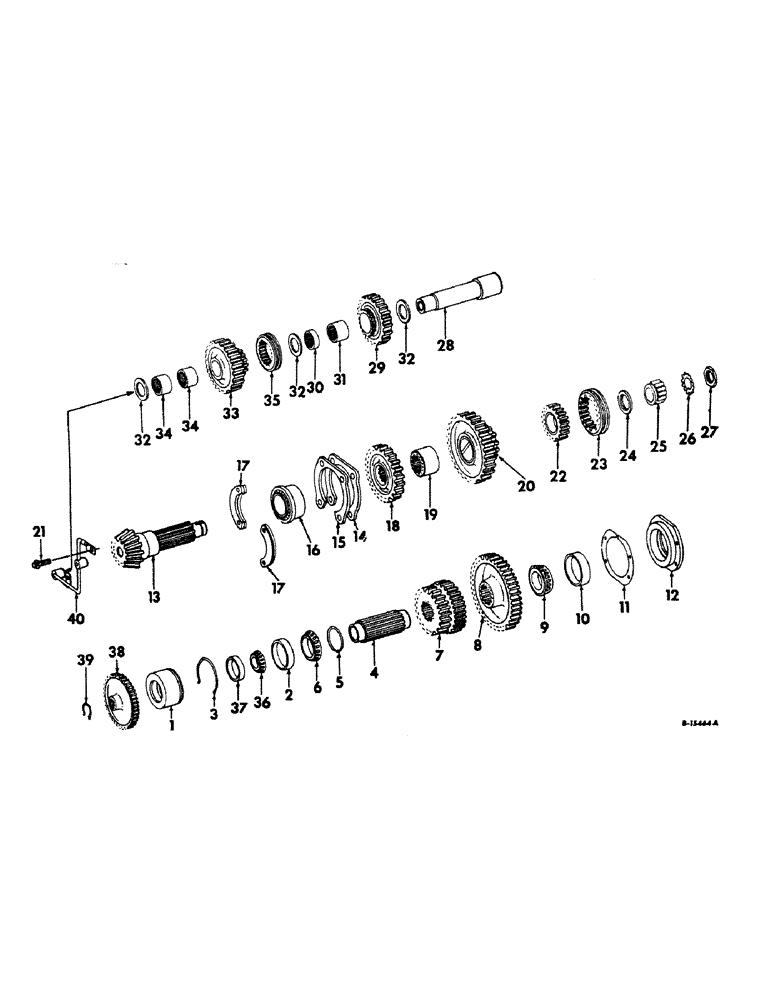

Запчасти Case IH 21206 (B-05) - POWER TRAIN, RANGE TRANSMISSION, IN REAR FRAME (03) - POWER TRAIN

1

380274R11

CAGE

ASSY, countershaft rear brg

1шт.

2

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft rear cup

1шт.

3

384340R1

RING, SNAP

RING, brg cage rear retaining

1шт.

4

380276R1

SHAFT

COUNTERSHAFT

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft cone

1шт.

7

391883R1

GEAR WHEEL

GEAR, lo drive, 28 & 33T

1шт.

8

380161R2

PINION

GEAR, constant mesh, 50T

1шт.

9

ST2122

BEARING ASSY,52.39mm ID x 30.16mm W

countershaft front cone

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

BEARING, countershaft front cup

1шт.

11

380280R1

SHIM

countershaft brg (or as required)

2шт.

12

380281R1

CAGE

countershaft front brg

1шт.

NLS

NO LONGER SERVICED

4шт.

13

SHAFT, transmission main and drive bevel pinion, 12T, order matched set of bevel gears, 395759R91

1шт.

14

380283R2

SHIM

main shaft brg, .004

1шт.

15

380284R2

SHIM

main shaft brg, .007 (or as required)

2шт.

16

391894R91

CRANKSHAFT BEARING,2.5005" ID x 5.252" OD x 2.682"

ASSY, mainshaft rear

1шт.

17

396322R1

RETAINER

ASSY, mainshaft rear brg, will work for 391892R1 & 391893R1

2шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

main shaft brg cage

2шт.

396323R1

WASHER

brg retaining bolt

2шт.

18

380288R1

GEAR

reverse driven, 35T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

391896R21

GEAR

W/BUSHING ASSY, hi-lo driven

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket

2шт.

22

527820R2

CARRIER, shift collar, replaces 393522r1

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R1

NUT

main shaft

1шт.

28

359082R1

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler

1шт.

29

393523R1

GEAR

reverse idler, 30T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R1

GEAR

reverse drive, 34T

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

forward-reverse shift

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

independent power take-off driven shaft cone

1шт.

37

ST991

BEARING CUP

BEARING, independent power take-off driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

380162R91

TUBE

ASSY, pressure lub

1шт.

372703R2

FLUID, hy-tran, quart can

1шт.

372704R2

TRANSMISSION OIL

FLUID, hy-tran, gallon can

1шт.

372705R2

FLUID

hy-tran, five gallon can

1шт.

407024R2

FLUID, hy-tran, fifteen gallon can

1шт.

395759R91

SET

BEVEL GEARS, matched set, consists of 1 gear 388916R1 (NSS), 1 shaft 395014R1 (NSS), 1 tag 1082564R1 (NSS)

1шт.
