Запчасти Case IH 21206 (E-17) - FUEL SYSTEM, FUEL STRAINER, DIESEL ENGINE TRACTORS WITH UNDERSLUNG FUEL TANK (02) - FUEL SYSTEM

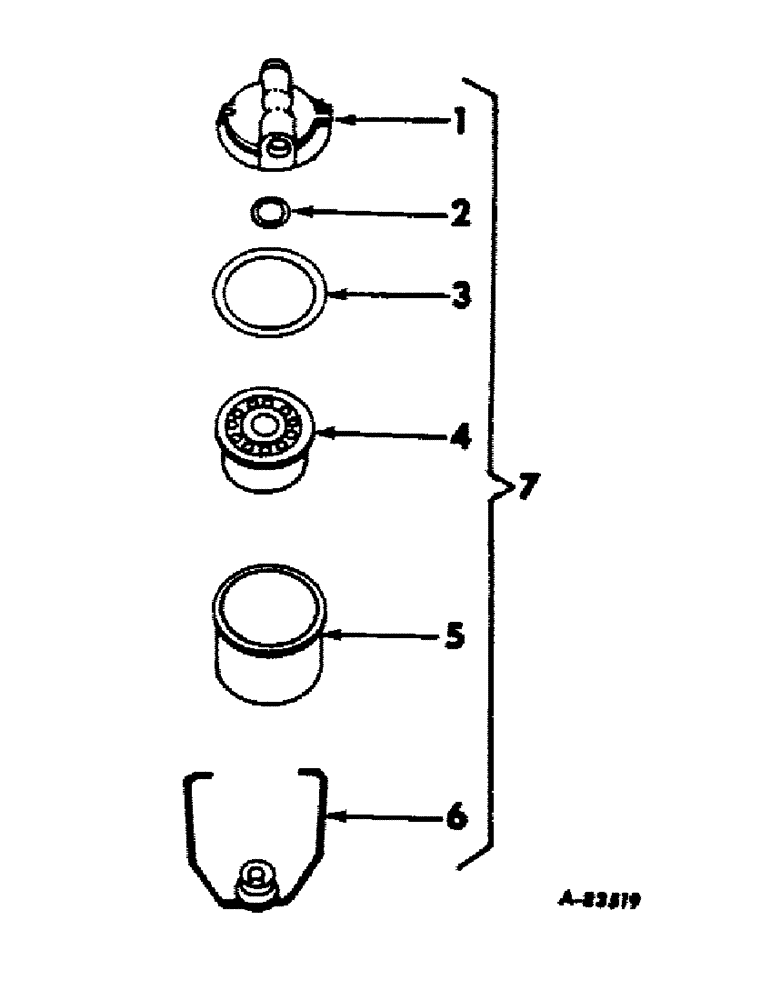

Схема запчастей Case IH 21206 - (E-17) - FUEL SYSTEM, FUEL STRAINER, DIESEL ENGINE TRACTORS WITH UNDERSLUNG FUEL TANK (02) - FUEL SYSTEM
5
2
1
7
6
4
3

Артикул

Название

Примечание

Количество

1

BODY ASSY, fuel strainer, not serviced separately, order fuel strainer, 614421R91

1шт.

2

614694R1

GASKET

element sealing

1шт.

3

614695R1

GASKET

fuel strainer

1шт.

4

614693R1

ELEMENT, fuel strainer

1шт.

5

614696R1

BOWL

fuel strainer

1шт.

6

98375R91

KIT

BAIL ASSY

1шт.

7

614421R91

FILTER

STRAINER ASSY, fuel, composed of ref. nos. 1 thru 6

1шт.

7

614421R91GV

BOWL

Value. Fuell Strainer

1шт.

Выбрано товаров: 8
