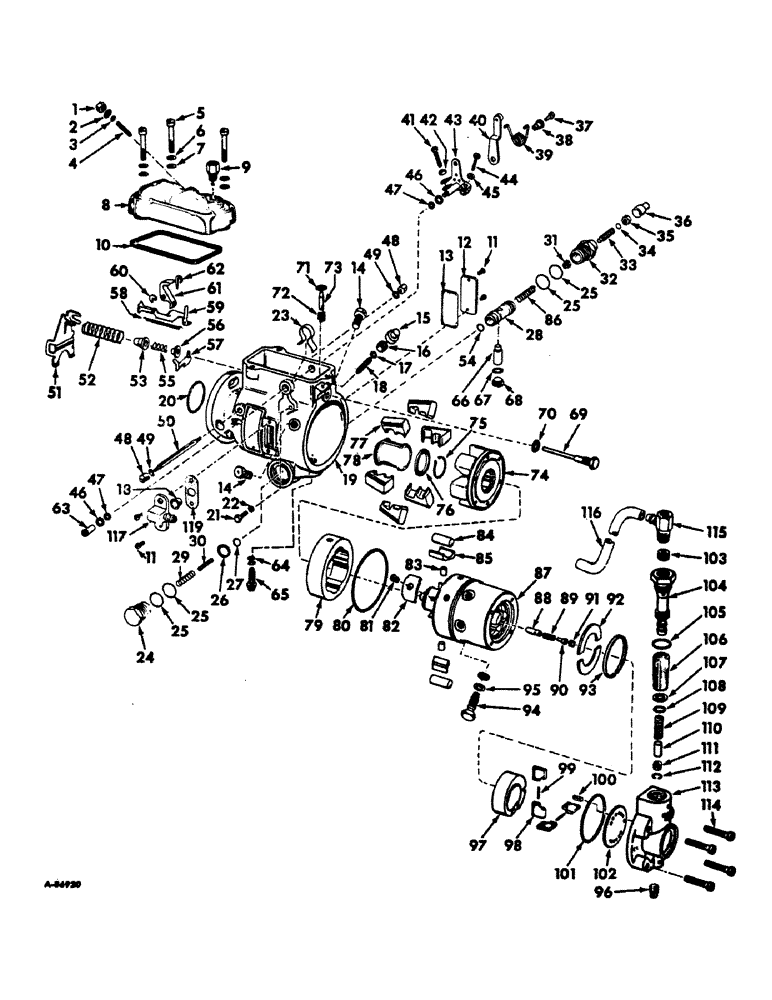

Запчасти Case IH 21206 (E-10) - FUEL SYSTEM, FUEL INJECTION PUMP (02) - FUEL SYSTEM

610440C91

PUMP ASSY, fuel injection, production, order 702477C92 basic pump & related parts (NSS)

1шт.

702477C92

PUMP ASSY, injection, basic, will work for 610440C91, also order ref. nos. 88, 28, 29, 30, 120

1шт.

1

368009R1

NUT

low idle adjusting screw

1шт.

2

304728R1

WASHER

low idle adjusting screw

1шт.

3

304729R1

SEAL

low idle adjusting screw

1шт.

4

304788R1

SET SCREW

low idle adjusting

1шт.

5

319674R1

SCREW

cover hold down

3шт.

6

138534

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 int, tooth lock, cover hold down screw

3шт.

7

319676R1

WASHER

cover hold down screw

3шт.

8

304744R1

COVER ASSY

COVER, governor control

1шт.

9

610950C1

CONNECTOR, return line

1шт.

10

368012R1

SEAL

governor control cover

1шт.

11

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

8-32 x 5/16 slt-ov-hd mach, timing line cover and fitting

4шт.

12

304740R1

COVER ASSY

COVER, timing line

1шт.

13

367979R1

GASKET

timing line cover

1шт.

14

368810R1

SCREW, head locking

2шт.

15

313287R1

COVER ASSY

CAP, torque screw

1шт.

16

321313R1

NUT

torque screw

1шт.

17

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, torque screw

1шт.

18

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW, torque

1шт.

19

702666C91

HOUSING

ASSY, pump, replaces 346700R91

1шт.

20

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL, pilot tube oil

1шт.

21

20789R1

SCREW, 1/4-28 x 1/2 slt-pan-hd mach, torque screw hole plug

1шт.

22

324791R1

SEAL ASSY.

WASHER, torque screw hole plug

1шт.

23

606415C1

STOP

high idle screw

1шт.

24

346714R1

PLUG

piston hole, power side

1шт.

25

319687R1

WIPER SEAL

advance piston hole plug

4шт.

26

346659R1

RING, SNAP

RING, advance piston, power

1шт.

27

346726R1

SEAL

piston ring

1шт.

28

346716R1

PISTON, advance

1шт.

29

319989R1

SPRING, outer advance

1шт.

30

319694R1

VALVE SPRING

SPRING, inner advance

1шт.

31

319692R1

GUIDE

advance adjusting screw

1шт.

32

346715R1

PLUG, piston hole, spring side

1шт.

33

319691R1

CAPSCREW,1/4" x 1.385"

SCREW, advance adjusting

1шт.

34

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, advance adjusting screw

1шт.

35

321313R1

NUT

advance adjusting screw lock

1шт.

36

313287R1

COVER ASSY

CAP, advance adjusting screw

1шт.

37

217921

SCREW, 10-32 x 5/8 hex, soc, hd cap, throttle lever

1шт.

38

304743R1

RETAINER

throttle lever spring

1шт.

39

304739R1

VALVE SPRING

SPRING, throttle lever

1шт.

40

346702R91

LEVER

throttle

1шт.

41

368002R1

ADJUSTMENT SCREW,Drilled Sl Hex, #10 - 32 x 1.406"

high idler adjusting

1шт.

42

120614

NUT,Hex, #10 - 32

NUT, , High idle adjusting screw #10-32

1шт.

43

702393C1

SHAFT

ASSY, throttle

1шт.

44

368024R1

SCREW, throttle lever stop

1шт.

45

120614

NUT,Hex, #10 - 32

NUT, , Throttle lever stop screw #10-32

1шт.

46

319744R1

WASHER

shut-off and throttle shaft

2шт.

47

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, shut-off and throttle shaft

2шт.

48

368018R1

NUT

pivot shaft retainer

2шт.

49

304721R1

SEAL

pivot shaft

2шт.

50

368016R1

SHAFT

governor arm pivot

1шт.

51

321367R1

ARM

governor

1шт.

52

319738R1

SPRING

governor control

1шт.

53

368015R1

RETAINER, idling spring

1шт.

54

372618R1

SHIM

advance spring .033

1шт.

54

368575R1

SHIM

advance spring .005

1шт.

54

372617R1

SHIM, advance spring .0160

1шт.

55

304810R1

SPRING

governor idling

1шт.

56

367998R1

GUIDE

idling spring

1шт.

57

324188R91

ARM

metering valve

1шт.

58

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

59

702350C1

LINKAGE

HOOK ASSY, governor linkage, replaces 313241R91

1шт.

60

368023R1

CAM

shut-off shaft stop

1шт.

61

304794R1

LEVER

throttle shaft

1шт.

62

313690R1

LOCK ASSY

CAM, shut-off

1шт.

63

615828C1

SHAFT

shut-off

1шт.

64

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Head locating screw

2шт.

65

346721R91

SCREW

head locating

1шт.

66

346721R91

SCREW

head locating

1шт.

66

346723R1

DOWEL

PIN, cam advance

1шт.

67

319689R1

WIPER SEAL

advance screw hole plug

1шт.

68

346722R1

PLUG

advance screw hole

1шт.

69

313677R1

STUD

governor idle spring

1шт.

70

368014R1

WASHER

guide stud

1шт.

71

313286R1

WASHER

SHIM, metering valve spring

1шт.

72

304746R1

VALVE SPRING

SPRING, metering valve

1шт.

73

313683R1

VALVE

metering

1шт.

74

702586C91

RETAINER

ASSY, gov. weight, will work for 324369R91

1шт.

75

368345R1

SNAP RING

RING, governor cage retaining

1шт.

76

368342R1

THRUST WASHER

governor sleeve thrust

1шт.

77

319669R1

WEIGHT

governor

6шт.

78

321369R1

ARM

SLEEVE, governor thrust

1шт.

79

610922C1

RING

cam

1шт.

80

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

81

368806R1

SCREW, leaf spring adjusting

1шт.

82

304797R1

VALVE SPRING

SPRING, plunger limiting leaf

1шт.

83

PLUNGER, rotor, not serviced separately, order 702479C91

1шт.

84

368805R1

ROLLER

plunger cam

2шт.

85

368804R1

SHOE (ASSY)

SHOE, cam roller

2шт.

86

319683R1

SPRING

advance timer

1шт.

87

702479C91

HEAD ASSY.

HEAD AND ROTOR ASSY, hydraulic, replaces 610947C91, composed of (1) head (NSS), (2) plunger (NSS), (1) rotor (NSS), (1) screw 317901R1, (1) stop 606145C1

1шт.

88

346775R1

LOCK VALVE

VALVE, delivery

1шт.

88

346885R1

O-RING

VALVE, delivery, oversize

1шт.

88

619080C1

LOCK VALVE

VALVE, delivery, use w/head 702469C91

1шт.

89

606144C1

VALVE SPRING

SPRING, delivery valve

1шт.

90

606145C1

LOCK ASSY

STOP, delivery valve

1шт.

91

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, delivery valve retaining

1шт.

92

304800R1

WASHER

RETAINER, rotor

2шт.

93

304801R1

RING

rotor retainer

1шт.

94

609050C1

SCREW

fuel line connector

6шт.

95

670207C1

GASKET

WASHER, fuel line connector

1шт.

96

346712R1

PLUG

end plate pipe

1шт.

97

304745R1

GUIDE

LINER, transfer pump

1шт.

98

346728R1

BLADE

transfer pump

4шт.

99

346724R1

SPRING

transfer pump blade

2шт.

100

368812R1

DOWEL

PIN, end plate roll

1шт.

101

367982R1

O-RING,0.154" Width

1-1/2 x 1-13/16 x 5/32, transfer pump

1шт.

102

346725R1

PLATE ASSY.

PLATE, thrust

1шт.

103

615695C1

PLUG

end plate pipe

1шт.

104

346711R1

SLEEVE

end plate

1шт.

105

368030R1

RING

O-RING, 1/2 x 11/16 x 5/64, fuel inlet strainer

1шт.

106

346708R1

FILTER

ELEMENT, filter

1шт.

107

346709R1

SEAL

SEAL, element

1шт.

108

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, End plate sleeve

1шт.

109

346707R1

VALVE SPRING

SPRING, regulating

1шт.

110

367988R1

PLUNGER

PISTON, regulating

1шт.

111

615142C1

SEAL

SEAL, regulating piston

1шт.

112

346731R1

RING

snap, piston retainer

1шт.

113

346704R1

PLATE ASSY.

PLATE, end

1шт.

615489C1

LOCK ASSY

TRAP, end plate

2шт.

615733C1

CLIP

screw retaining

2шт.

319676R1

WASHER

end plate screw

4шт.

115545

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 int, tooth lock

4шт.

114

615491C1

SCREW

end plate

1шт.

115

610954C91

FITTING ASSY, inlet

1шт.

116

610952C1

HOSE,0.20" ID x 5.41"

- Fuel return by-pass 0.20" ID x 5.41"

1шт.

117

610951C91

FITTING

ASSY, timing and return

1шт.

118

610955C1

SCREW

SCREEN, return oil

1шт.

119

610953C1

GASKET

timing and return fitting

1шт.

347784R91

GASKET KIT

PACKAGE, fuel injection pump overhaul gasket, consists of (2) gasket 367979R1, (1) gasket 368012R1, (1) o-ring 304720R1, (5) o-ring 352219R1, (4) o-ring 359158R1, (1) o-ring 367982R1, (2) o-ring 368030R1, (2) oil seal 313288R1, (2) seal 304721R1, (1) seal

1шт.

12736D

ELECTRICAL WIRE

WIRE, lead pump & sealing

6шт.

279673R91

WASHER

WIRE, torque screw cap seal

1шт.
