Запчасти Case IH 21206 (E-08) - FUEL SYSTEM, NOZZLE AND HOLDER, UP TO ENGINE SERIAL NO. 11540 (02) - FUEL SYSTEM

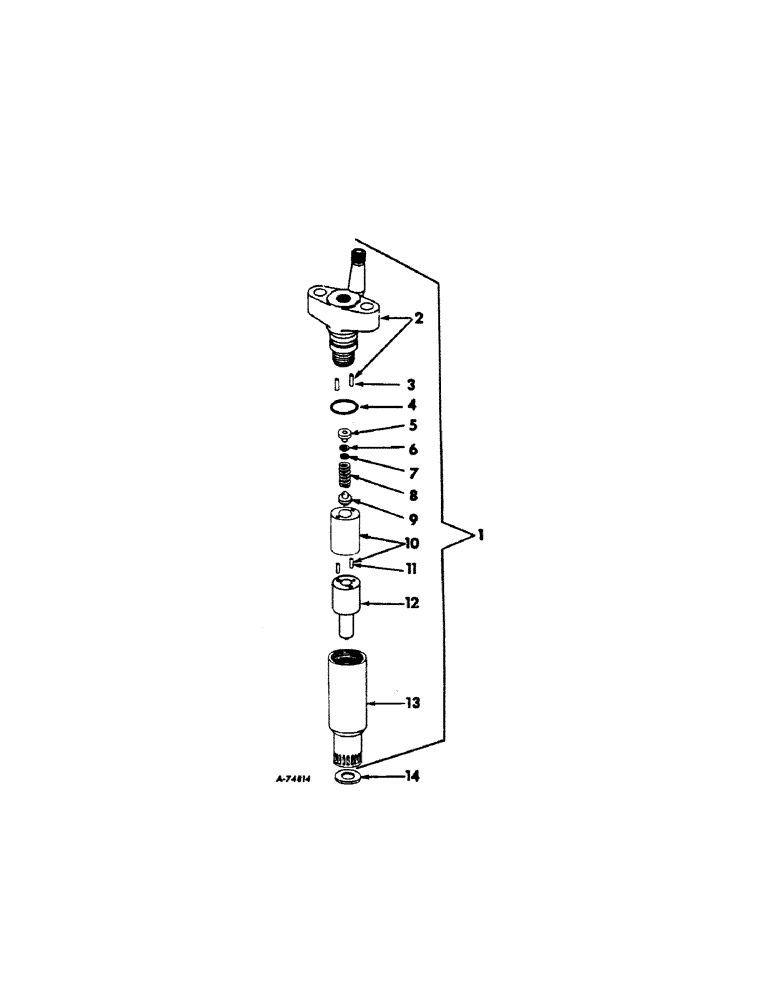

Схема запчастей Case IH 21206 - (E-08) - FUEL SYSTEM, NOZZLE AND HOLDER, UP TO ENGINE SERIAL NO. 11540 (02) - FUEL SYSTEM
12
6
10
13
7
14
5
8
4
1
2
9
11
3

Артикул

Название

Примечание

Количество

1

337271R91

KIT

NOZZLE AND HOLDER ASSY, injection, order 749082C91

6шт.

2

337273R11

BODY ASSY, nozzle & holder

6шт.

3

19855R1

PIN,7/64" x 3/8", Coiled

12шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

6шт.

5

326694R1

SEAT

nozzle spring upper

6шт.

6

326688R1

SHIM

nozzle spring wear

6шт.

7

326689R1

SHIM

nozzle adjusting, .002

1шт.

7

326690R1

SHIM

nozzle adjusting, .003

1шт.

7

326691R1

SHIM

nozzle adjusting, .005

1шт.

7

326692R1

SHIM

nozzle adjusting. .010

1шт.

8

326687R1

SPRING

nozzle

6шт.

9

326686R1

SEAT

nozzle spring lower

6шт.

10

337274R11

SLEEVE CYLINDER

RETAINER ASSY, nozzle spring

6шт.

11

19854R1

PIN,7/64" x 1/4", Coiled

12шт.

12

702100C1

LOCK VALVE

NOZZLE (replaces 333887R1)

6шт.

13

326685R1

BASE

NUT, nozzle holder

6шт.

14

343510R1

GASKET

nozzle

6шт.

Выбрано товаров: 17
