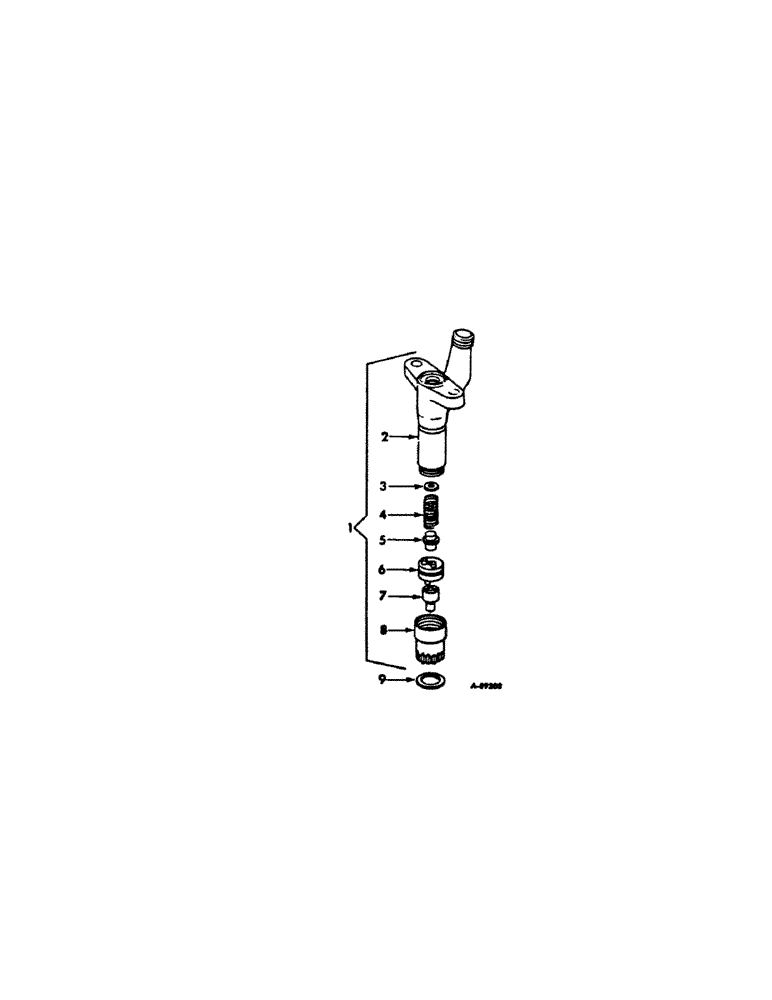

Запчасти Case IH 21206 (E-08[1]) - FUEL SYSTEM, NOZZLE AND HOLDER, ENGINE SERIAL NO. 11541 AND ABOVE (02) - FUEL SYSTEM

1

749082C91

REMAN-INJECT NOZZLE

NOZZLE AND HOLDER ASSY (replaces 610715C91)

6шт.

2

BODY, holder, not serviced separately

1шт.

3

615109C1

SHIM

.077

1шт.

3

615110C1

SHIM

.075

1шт.

3

615111C1

SHIM

.073

1шт.

3

615112C1

SHIM

.071

1шт.

3

615113C1

SHIM

.069

1шт.

3

615114C1

SHIM

.067

1шт.

3

615115C1

SHIM

.065

1шт.

3

615116C1

SHIM

.063

1шт.

3

615117C1

SHIM

.061

1шт.

3

615118C1

SHIM

.059

1шт.

3

615119C1

SHIM

.057

1шт.

3

615120C1

SHIM

.055

1шт.

3

615121C1

SHIM

.053

1шт.

3

615122C1

SHIM

.051

1шт.

3

615123C1

SHIM

. .049

1шт.

3

615124C1

SHIM

.047

1шт.

3

615125C1

SHIM

.045

1шт.

3

615126C1

SHIM

.043

1шт.

3

615127C1

SHIM

.041

1шт.

3

615128C1

SHIM

.039

1шт.

4

615105C1

VALVE SPRING

SPRING

6шт.

5

615106C1

SEAT

spring lower

6шт.

6

615107C1

PLATE

intermediate

6шт.

7

606400C91

JET

NOZZLE

6шт.

8

615108C1

NUT

nozzle cap

6шт.

9

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

SOCKET, nozzle, not furnished as part of nozzle and holder assy

6шт.

615103C91

HOLDER ASSY, nozzle, composed of (1) body (NSS), (1) nut 615108C1, (1) plate 615107C1, (1) seat 615106C1, (1) shim 615109C1, (1) spring 615105C1

6шт.
