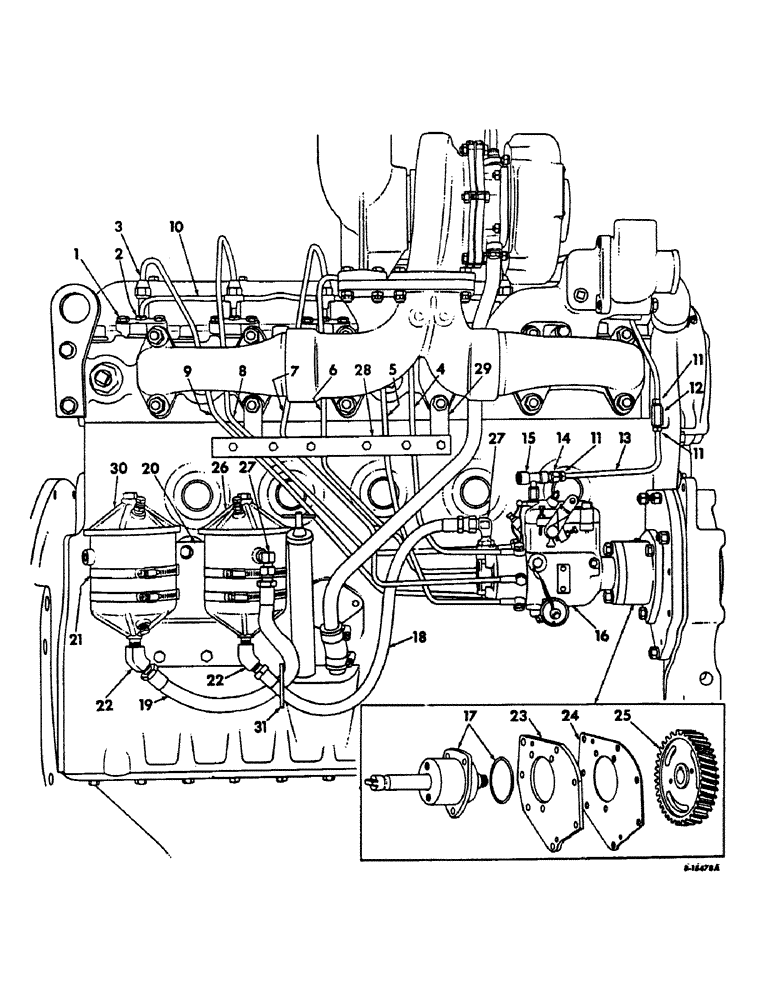

Запчасти Case IH 21206 (E-06) - FUEL SYSTEM, FUEL INJECTION PUMP, CONNECTIONS AND PIPES (02) - FUEL SYSTEM

1

337271R91

KIT

NOZZLE AND HOLDER ASSY, injection, IH, order nozzle and holder assy, 610715C91, up to engine serial no. 11540, for components see list of parts under details of nozzle and holder

6шт.

1

610715C91

NOZZLE INJECTION

NOZZLE AND HOLDER ASSY, injection, Bosch, engine serial no. 11541 & above, for components see list of parts under details of nozzle and holder

6шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

12шт.

2

336980R1

NUT

leakoff manifold sleeve

6шт.

915500R1

SLEEVE

rubber

6шт.

3

250617R1

NUT

injection pipe

6шт.

250610R2

GUARD

SLEEVE, injection pipe

6шт.

4

609052C11

PIPE CLAMP

PIPE ASSY, injection no. 1

1шт.

5

609053C21

PIPE

ASSY, injection no. 2

1шт.

6

609054C11

PIPE

ASSY, injection no. 3

1шт.

7

609055C21

PIPE CLAMP

PIPE ASSY, injection no. 4

1шт.

8

609056C11

PIPE CLAMP

PIPE ASSY, injection no. 5

1шт.

9

609057C11

PIPE CLAMP

PIPE, injection no. 6

1шт.

10

612222C11

TUBE

MANIFOLD ASSY, leakoff, will work for 349098R91, consists of nut, 915449R91 & sleeve, 915500R1

1шт.

11

915499R1

TUBE NUT

NUT, 7/16-24 hi-duty tube fitting, will work for 19984R1

3шт.

12

615369C1

UNION

7/16-24 hi-duty tube fitting, will work for 89863H

1шт.

13

612223C11

TUBE

ASSY, leakoff return lower, will work for 349102R1, consists of nut, 915449R91 & sleeve, 915500R1

1шт.

14

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, 7/16-24 male hi-duty tube fitting

1шт.

15

603676C1

TEE

7/16-24 hi-duty tube fitting

1шт.

16

610440C91

PUMP ASSY, fuel injection, for components see list of parts under details of fuel injection pump

1шт.

17

DRIVE ASSY, injection pump, for components see list of parts under details of injection pump drive

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

95-11041

WASHER,3/8"

Injection pump 3/8"

3шт.

18

610423C91

HOSE

- Filter to injection pump

1шт.

19

347823R92

HOSE

primary to final filter

1шт.

20

345293R11

BRACKET, fuel filter

1шт.

46806DA

SPACER

filter bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179846

LEVER

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP, filter

4шт.

22

444082

ELBOW

1/4-18 45 deg automotive pipe

2шт.

23

328841R1

PLATE, injection pump mounting

1шт.

103026

NUT,3/8"-24, G5

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve, PT cap

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

1шт.

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

SCREW, 3/8-24 x 3-1/2 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

328842R1

GASKET

injection pump mounting plate

1шт.

25

341525R1

PINION

GEAR, injection pump drive

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

341508R1

WASHER

gear

1шт.

19899R1

NUT

gear hub lock

1шт.

26

347066R91

HOSE ASSY.

FILTER ASSY, final fuel, for components see list of parts under details of fuel filter

1шт.

27

9402838

ELBOW

9/16-18 37 deg hyd flared tube 90 deg

1шт.

28

601245C11

PLATE ASSY.

CLAMP W/PINS, injection pipe, outer

1шт.

601249C1

PLATE ASSY.

PAD, injection pipe clamp

2шт.

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

SCREW, 1/4-28 x 1-1/4 hex-hd cap

6шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

6шт.

29

601811C1

CLAMP

injection pipe, inner

1шт.

30

610933C91

FILTER

ASSY, primary fuel, for components see list of parts under details of fuel filter

1шт.

31

702093C1

CABLE TIE

CLAMP, hose

1шт.

915500R11

SLEEVE, tube

1шт.
