Запчасти Case IH 21026 (13-06) - SUPERSTRUCTURE, FENDERS AND PLATFORMS, INTERNATIONAL TRACTORS (05) - SUPERSTRUCTURE

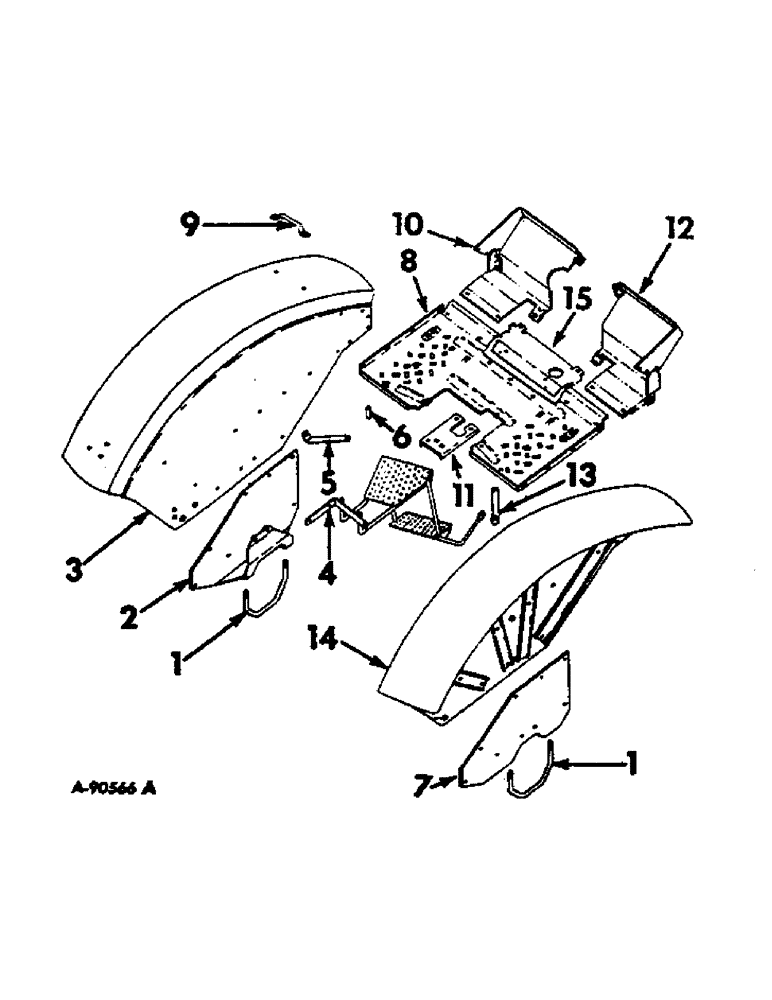

Схема запчастей Case IH 21026 - (13-06) - SUPERSTRUCTURE, FENDERS AND PLATFORMS, INTERNATIONAL TRACTORS (05) - SUPERSTRUCTURE
8
1
1
10
2
9
3
13
12
15
6
4
11
14
7
5

Артикул

Название

Примечание

Количество

1

379376R1

BOLT,3/4" - 10 x 8.50" W x 7.50" L

U-BOLT, fender mounting

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

379714R91

SUPPORT ASSY, LH fender

1шт.

2

380831R21

SUPPORT ASSY, LH full coverage fenders

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW, 3/8-16 x 1-7/8 znd hex-hd cap

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

3

386102R93

FENDER ASSY, LH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

3

386109R93

FENDER ASSY, LH full coverage

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

7шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

7шт.

3

528972R1

FENDER ASSY, LH, tractors w/protective frame

1шт.

102635

NUT,3/8"-16, G5

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

6шт.

575807R1

WASHER

13/32 x 1 x 11 ga

8шт.

4

383193R92

STEP ASSY, mounting

1шт.

4

385831R91

STEP ASSY, mounting, tractors with all wheel drive

1шт.

271608

PIVOT

SCREW, 3/4-10 x 1-5/8 hex-hd cap

1шт.

5

384332R1

BRACKET, fender support LH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 znd hex-hd cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

6

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

platform

4шт.

7

379715R91

SUPPORT ASSY, RH fender

1шт.

380832R11

SUPPORT ASSY, RH full coverage fenders

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW, 3/8-16 x 1-7/8 znd hex-hd cap

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

8

406279R4

PLATFORM, rear frame

1шт.

537942R1

PLATE, platform to fender fastening

8шт.

120377

NUT,3/8" - 16, Gr 5

1-шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

9

381050R1

HANDLE, fender

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

446212

WASHER,7/16" x 7/8" x .083"

7/16 x 7/8 x .065 C-Z

2шт.

10

406283R2

SHIELD ASSY, LH mud

1шт.

10

398617R3

SHIELD ASSY, LH mud, tractors w/all wheel drive

1шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

6шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

11

(Not used in this application)

1шт.

12

406285R2

SHIELD ASSY, RH mud

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

13

384333R1

BRACKET, fender support, RH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 znd hex-hd cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

14

386103R93

FENDER ASSY, RH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

14

386110R92

FENDER ASSY, RH full coverage

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

7шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

7шт.

14

528973R1

FENDER ASSY, RH, tractors w/protective frame

1шт.

102635

NUT,3/8"-16, G5

6шт.

NLS

NO LONGER SERVICED

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

8шт.

15

406280R1

PLATFORM, rear frame front

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

Выбрано товаров: 76
