Запчасти Case IH 21026 (13-04) - SUPERSTRUCTURE, PLATFORMS AND EXTENSIONS, FARMALL TRACTORS (05) - SUPERSTRUCTURE

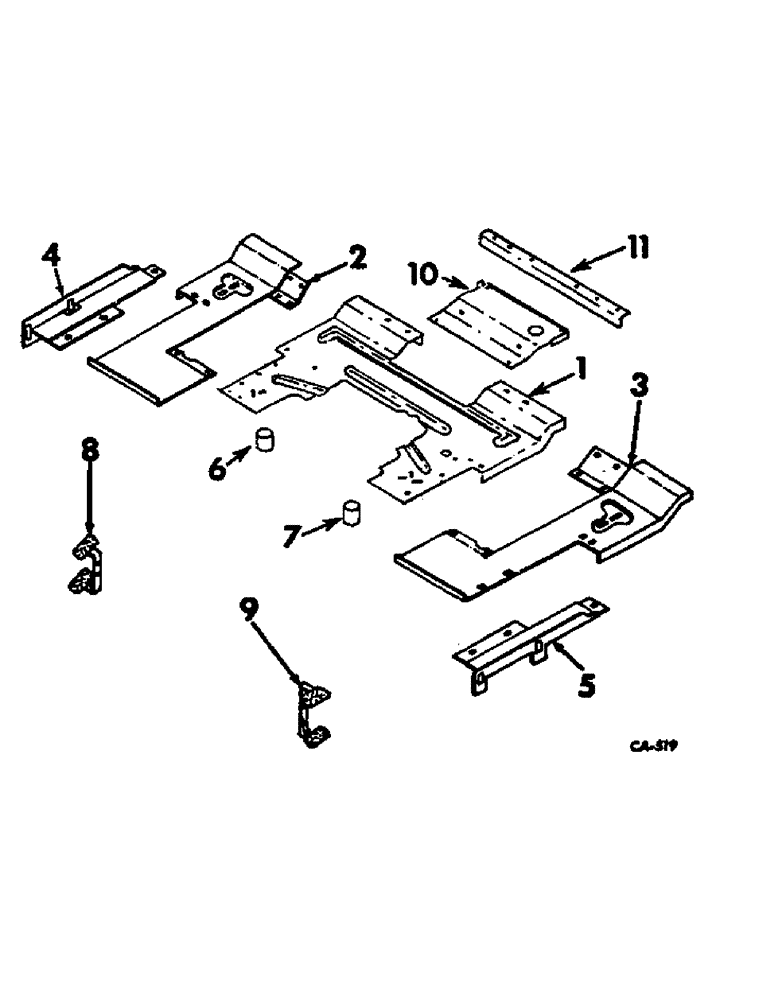

Схема запчастей Case IH 21026 - (13-04) - SUPERSTRUCTURE, PLATFORMS AND EXTENSIONS, FARMALL TRACTORS (05) - SUPERSTRUCTURE
7
4
3
11
10
6
1
2
5
9
8

Артикул

Название

Примечание

Количество

1

406278R4

PLATFORM, rear frame, Farmall tractors without isomount bushings

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

187491

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

SCREW, 3/8-16 x 5-1/2 hex-hd cap

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

1

537400R1

PLATFORM, rear frame, Farmall tractors with isomount bushings

1шт.

536647R1

INSULATOR

BUSHING, rear frame platform isomount

6шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

187491

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

SCREW, 3/8-16 x 5-1/2 hex-hd cap

2шт.

536642R1

WASHER

13/32 x 1 x .060 hardened

6шт.

1

406279R4

PLATFORM, rear frame, tractors w/cab and without isomount bushings

1шт.

537942R1

PLATE, platform to fender fastening

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

8шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

1

537405R1

PLATFORM, rear frame, tractors w/cab & isomount bushings

1шт.

536629R1

BUSHING,10.03mm ID x 19.81mm OD x 18.29mm L

isomount

8шт.

537942R1

PLATE, platform to fender fastening

8шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

8шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

8шт.

536642R1

WASHER

13/32 x 1 x .060

8шт.

2

398493R2

EXTENSION ASSY, platform LH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8 x 1-1/8 sq-nk crg

3шт.

969521R1

WASHER, .406 x .75 x .312

1шт.

50793H

WASHER

13/32 x 3/4 x .119

2шт.

102635

NUT,3/8"-16, G5

3шт.

2

406287R1

EXTENSION, platform LH

1шт.

19540R1

SCREW, 3/8-16 x 1 C-Z slt-truss-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

398494R1

EXTENSION ASSY, platform RH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8 x 1-1/8 sq-nk crg

3шт.

969521R1

WASHER, .406 x .75 x .312

1шт.

127507H

WASHER

13/32 x 7/8 x .179

1шт.

102635

NUT,3/8"-16, G5

3шт.

3

406288R1

EXTENSION, platform RH

1шт.

19540R1

SCREW, 3/8-16 x 1 C-Z slt-truss-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

534493R2

EXTENSION

ASSY, fender to platform mounting LH, replaces 400715R2

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8-16 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

127507H

WASHER

13/32 x 7/8 x .179

1шт.

5

534494R2

EXTENSION

ASSY, fender to platform mounting RH, replaces 400716R1

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8-16 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

127507H

WASHER

13/32 x 7/8 x .179

1шт.

6

51852H

SPACER

platform long, 35/64 x 27/32 x 4-5/8, Farmall tractors without isomount bushings

2шт.

6

537403R1

SPACER, platform long, 7/16 x 11/16 x 4-19/64, Farmall tractors with isomount bushings

2шт.

7

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

platform short 35/64 x 27/32 x 1-9/32, Farmall tractors without isomount bushings

4шт.

7

537402R1

SPACER, platform short, 7/16 x 11/16 x 31/32, Farmall tractors with isomount bushings

4шт.

8

395230R1

STEP

ASSY, LH mounting

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

5/8-11 x 2-1/4 12 point hd cap

1шт.

9

395123R1

STEP

ASSY, RH mounting

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

406280R1

PLATFORM, rear frame front, Farmall tractors without isomount bushings

1шт.

10

537404R1

PLATFORM, rear frame front, Farmall tractors with isomount bushings

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

406281R1

ANGLE ASSY, platform support

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

Выбрано товаров: 65
