Запчасти Case IH 21026 (12-05) - POWER, ENGINE SPEED CONTROLS (05) - SUPERSTRUCTURE

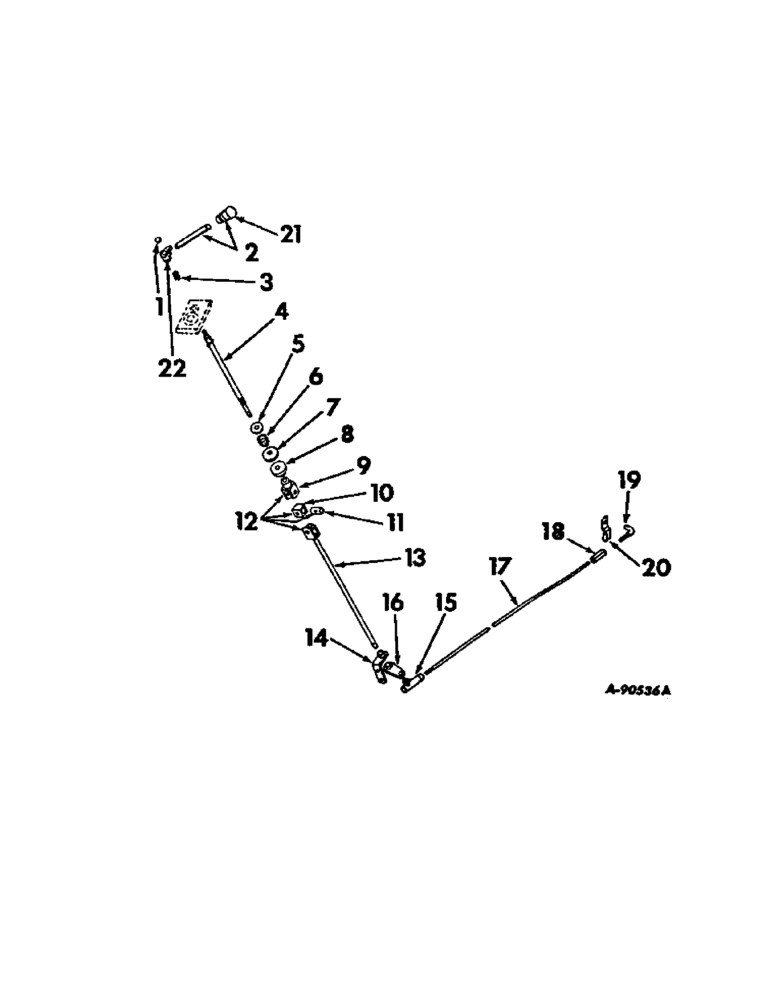

Схема запчастей Case IH 21026 - (12-05) - POWER, ENGINE SPEED CONTROLS (05) - SUPERSTRUCTURE
9
6
3
4
11
18
1
21
13
10
14
5
2
12
22
8
16
19
20
7
17
15

Артикул

Название

Примечание

Количество

1

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. C-Z button

1шт.

2

397929R91

HANDLE

ASSY, governor control

1шт.

230-4115

LOCK NUT,5/16"-18, GA

NUT, 5/16-18 stover hex. lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

3

30A

SPRING

governor control handle

1шт.

4

404238R11

SHAFT

ASSY, governor control upper

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.

5

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

6

369462R1

SPRING

governor control

1шт.

7

382684R1

GASKET

DISC, governor control friction

1шт.

8

382685R11

RETAINER

RETAINER ASSY, governor control friction

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

9

404240R1

YOKE

ASSY, upper

1шт.

534132R2

SCREW, yoke assy set

1шт.

10

382691R1

CROSS

BLOCK, universal joint center

1шт.

11

382692R1

PIN

center block

1шт.

12

404243R91

JOINT AND SHAFT ASSY, governor control universal

1шт.

13

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

385681R1

PIN

1/4 x 1-1/4 str

1шт.

14

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type sp ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

16

392955R11

LEVER

ASSY, governor control rod operating

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

401313R1

ROD, governor control, rear

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 hex. jam LH

1шт.

18

369474R1

TURNBUCKLE

governor control rod

1шт.

19

392956R1

ROD, governor control, front

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

20

384594R1

GUIDE, governor control rod

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

21

397931R2

GRIP

governor control handle

1шт.

21

397931R2GV

SPRING

Value, Knob

1шт.

22

397932R1

HUB

governor control handl

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

5/32 x 3/4 groove pin

1шт.

Выбрано товаров: 41
