Запчасти Case IH 21026 (12-02) - POWER, AIR CLEANER AND CONNECTIONS (05) - SUPERSTRUCTURE

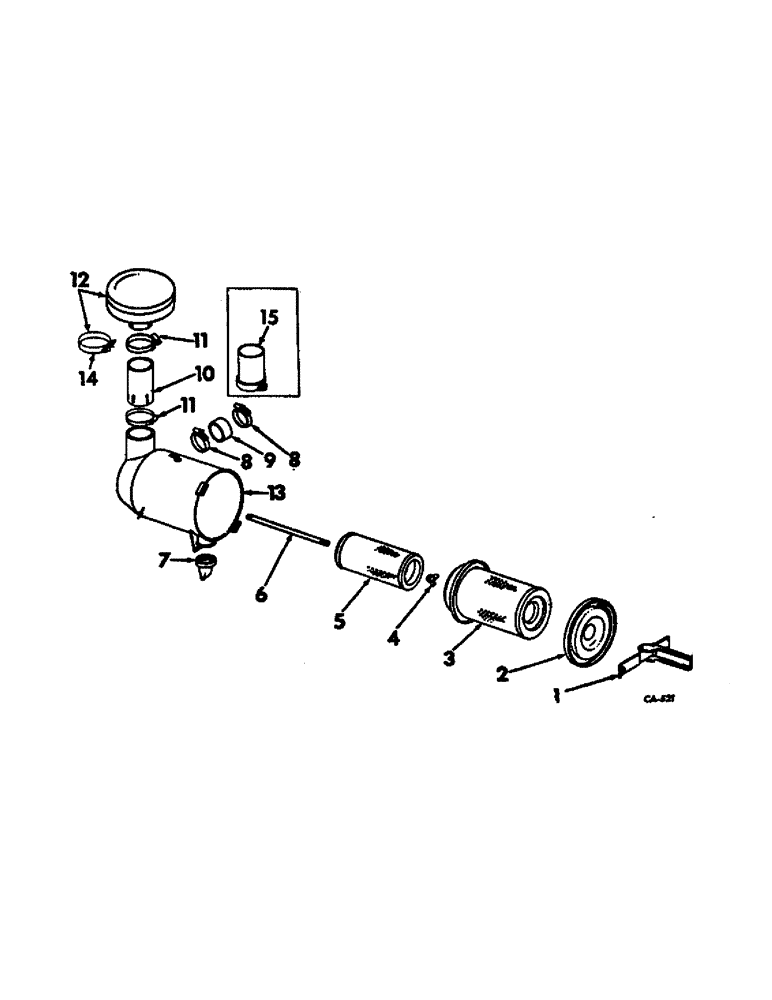

Схема запчастей Case IH 21026 - (12-02) - POWER, AIR CLEANER AND CONNECTIONS (05) - SUPERSTRUCTURE
3
7
15
6
2
5
11
8
4
9
13
1
12
11
10
14
8

Артикул

Название

Примечание

Количество

392050R93

CLEANER ASSY, air, composed of ref nos 1 - 7 and 13

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

1

392521R92

LATCH

ASSY, air cleaner

1шт.

2

392520R91

COVER

ASSY, air cleaner

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto. sq-hd pipe C-Z

1шт.

3

392517R91

ELEMENT

ASSY, air cleaner outer

1шт.

4

381342R92

WING NUT

NUT ASSY, air cleaner

1шт.

5

392516R91

ELEMENT

ASSY, air cleaner inner

1шт.

6

393070R1

STUD, air cleaner

1шт.

7

383734R2

VALVE

air cleaner vacuator

1шт.

8

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, outlet hose to air cleaner

2шт.

9

670065C1

INTAKE AIR HOSE,76.20 mm ID x 91.30 mm

- Air cleaner outlet 76.20 mm ID x 91.30 mm

1шт.

10

391927R1

PIPE, air cleaner extension, optional w/391926R91 4" OD, 11.1" Length

1шт.

11

201846R2

CLAMP

air cleaner extension pipe, used w/pipe 391927R1

1шт.

102635

NUT,3/8"-16, G5

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

391928R91

CYLINDER END CAP

CAP ASSY, air cleaner

1шт.

13

(Not serviced separately), order air cleaner assy, 392050R93

1шт.

14

391936R91

CLAMP, air cleaner cap

1шт.

15

391926R91

PIPE ASSY, air cleaner extension, optional w/391927R1

1шт.

Выбрано товаров: 25
