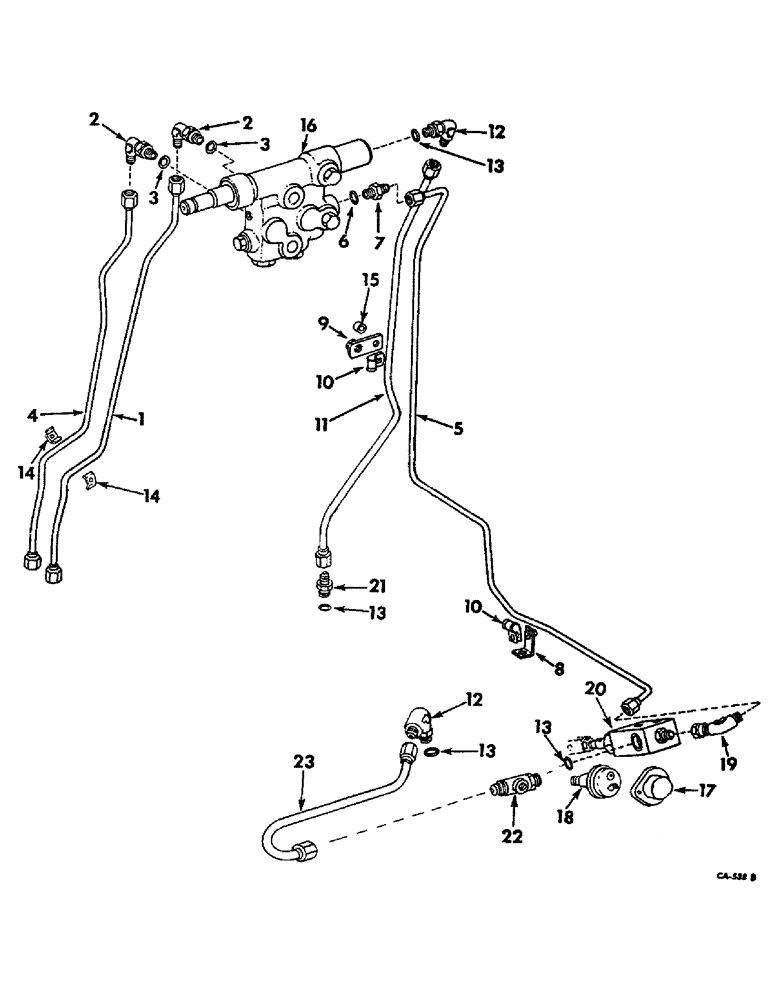

Запчасти Case IH 21026 (07-32) - DRIVE TRAIN, DRIVE CONTROL VALVE, FOOT-N-INCH VALVE AND TUBING (04) - Drive Train

1

406088R1

TUBE

ASSY, drive control valve forward port

1шт.

2

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg hyd flared tube adj str thd 90 deg

2шт.

4

406089R1

TUBE

ASSY, drive control valve reverse port

1шт.

5

406090R1

TUBE

ASSY, drive control valve to foot-n-inch valve

1шт.

533994R1

HOSE ASSY.

HOSE, tube bumper, 2 in. long

4шт.

535256R1

HOSE, tube bumper, 4 in. long

1шт.

7

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 37 deg hyd flared tube short swivel

1шт.

8

527593R1

SUPPORT ASSY, foot-n-inch pressure tube lower

1шт.

9

527681R1

SUPPORT ASSY, foot-n-inch pressure tube upper

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

10

137188

CLAMP

1/4 closed

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

11

532326R1

TUBE

ASSY, drive control valve drain

1шт.

535256R1

HOSE, tube bumper, 4 in. long

1шт.

12

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 37 deg hyd flared tube adj str thd 90 deg

2шт.

14

369758R1

CLAMP

drive control tube

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

385544R1

SPACER,1/4" Pipe x 3/8"

foot-n-inch tube support

1шт.

16

406385R91

CONTROL VALVE

VALVE ASSY, drive control, for components, see list on parts under details of drive control valve, this section, Fig. 7-34

1шт.

17

354558R1

SHIELD

low pressure warning switch

1шт.

18

534599R1

SWITCH

low pressure warning

1шт.

19

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16-20 37 deg hyd flare tube adj str thd swivel 90 deg

1шт.

20

530331R91

LOCK VALVE

VALVE ASSY, foot-n-inch, for components, see list of parts under details of foot-n-inch valve, this section, Fig. 7-33

1шт.

21

9410201

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

UNION, 1/2-20 37 deg hyd flared tube short swivel

1шт.

22

534616R1

TEE

int pipe thd two way

1шт.

23

534617R2

TUBE ASSY, foot-n-inch, Serial Range: valve-dump

1шт.

13

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

4шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.
