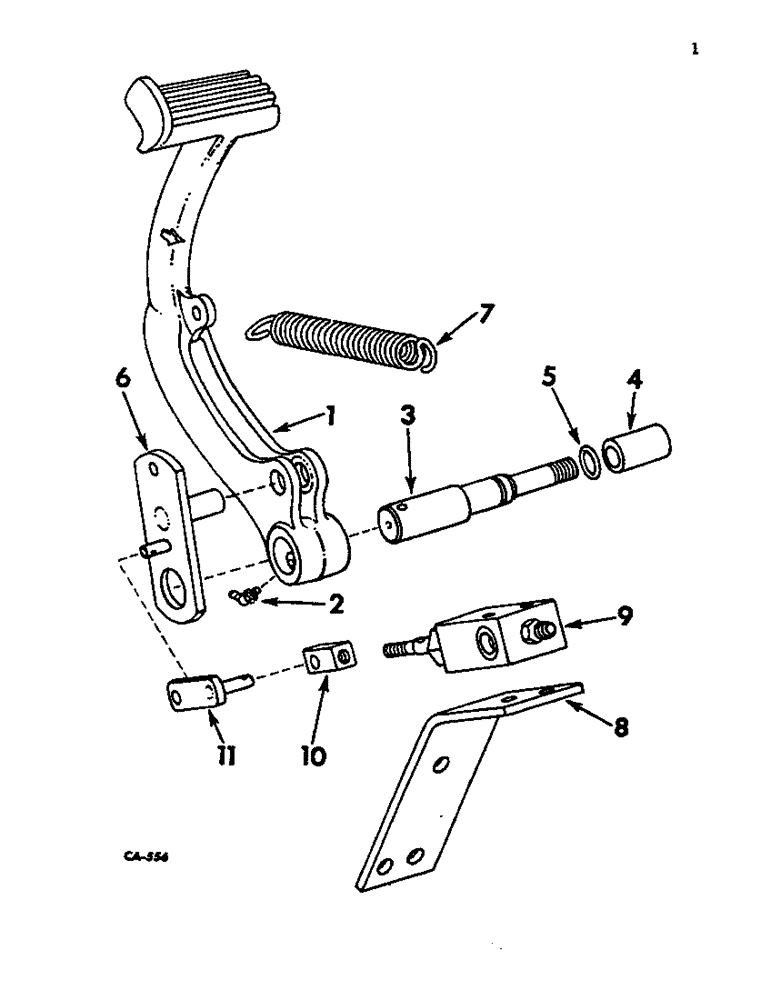

Запчасти Case IH 21026 (07-30) - DRIVE TRAIN, FOOT-N-INCH CONTROLS (04) - Drive Train

1

397468R1

PEDAL

foot-n-inch valve actuating

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

3

405973R1

SHAFT, foot-n-inch valve pedal

1шт.

4

364030R1

SPACER

pedal shaft

1шт.

443329

NUT, 5/8-11 hex. lock

1шт.

5

310943R1

RING

O-RING, 11/16 x 13/16 x 1/16

1шт.

6

405974R2

PLATE ASSY, pivot support

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

7

533355R1

VALVE SPRING

SPRING, foot-n-inch pedal return

1шт.

8

405979R1

BRACKET, foot-n-inch valve support

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

3шт.

9

530331R91

LOCK VALVE

VALVE ASSY, foot-n-inch w/dash pot, for components, see list of parts under details of foot-n-inch valve, Fig. 7-33

1шт.

102635

NUT,3/8"-16, G5

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

398766R1

UNION

BAR, foot-n-inch valve adjusting

1шт.

11

406017R1

LINK ASSY, foot-n-inch valve

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.
