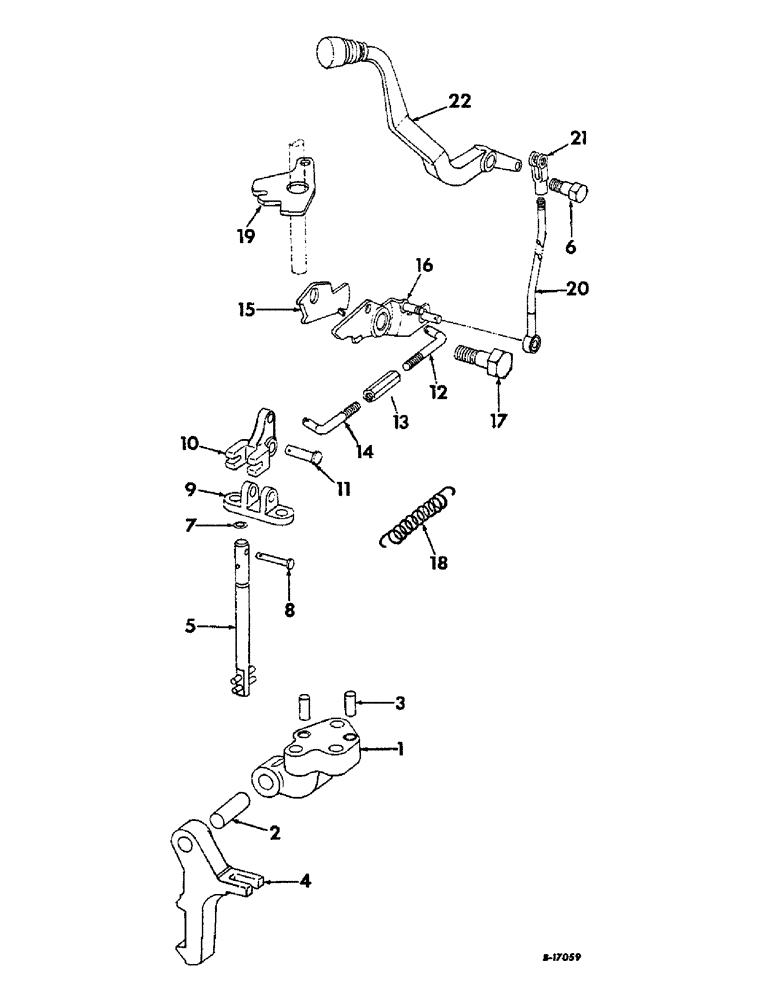

Запчасти Case IH 21026 (07-29) - DRIVE TRAIN, PARKING LOCK, HAND OPERATED, RANGE TRANSMISSION (04) - Drive Train

1

384055R11

BRACKET

ASSY, parking lock lever support

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 hex-hd cap

3шт.

2

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel

1шт.

3

20024R1

PIN

3/8 x 1 dowel

2шт.

4

384094R2

LEVER

parking lock

1шт.

5

384096R11

ROD

SHAFT ASSY, parking lock actuating

1шт.

19967R1

DOWEL,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 dowel

2шт.

6

386133R2

LOCK BOLT,Hex, 3/8" - 16 x 1.40"

BOLT, park lock handle

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, parking lock actuating shaft

1шт.

8

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, operating lever

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

9

384259R1

BRACKET

park lock operating lever

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

384260R1

LEVER

park lock operating

1шт.

11

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

390858R1

ROD

park lock front operating

1шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

13

390856R1

TURNBUCKLE

park lock adjustment

1шт.

14

390857R1

ROD

park lock rear operating

1шт.

19334R1

NUT,7/16"-20, G5, LH

7/16-14 LH thd hex.

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

15

385097R3

PAWL

neutral lock plate

1шт.

16

386127R11

LEVER

BELLCRANK ASSY, park lock over center actuating

1шт.

17

383153R3

BOLT,Shldr, Hex, 5/8" - 11 x 1.80"

BOLT, park lock bellcrank pivot

1шт.

18

208354R1

VALVE SPRING

SPRING, park lock actuating

1шт.

19

PLATE ASSY, neutral lock, refer to gear shift lever listing, this section

1шт.

443039

PIN

1/4 x 1-1/4 groove

1шт.

20

386134R11

ROD

ASSY, park lock actuating

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

21

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adj rod end

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

22

386132R1

HANDLE

park lock

1шт.
