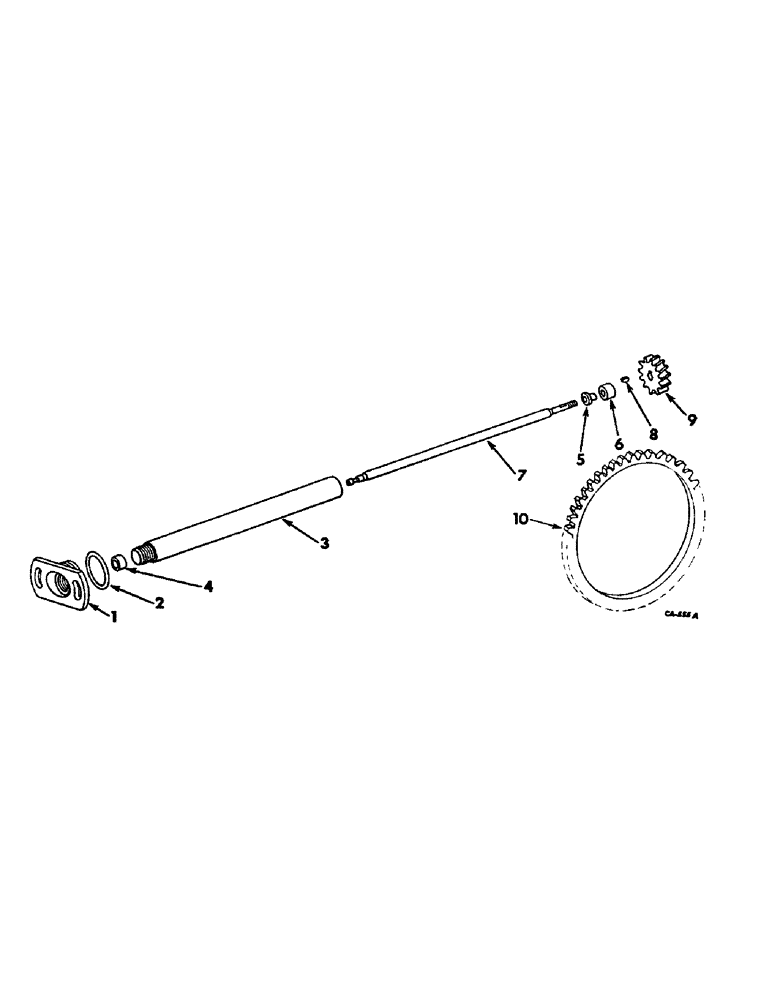

Запчасти Case IH 21026 (07-17) - DRIVE TRAIN, SPEEDOMETER DRIVE (04) - Drive Train

1

406149R1

CAP

speedometer drive support

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

2

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32

1шт.

3

406150R91

TUBE

ASSY, speedometer drive support

1шт.

4

406152R1

BUSHING

speedometer drive upper

1шт.

5

406153R1

SLEEVE

speedometer drive

1шт.

6

406154R1

BUSHING

speedometer drive lower

1шт.

7

406155R1

SHAFT

speedometer drive

1шт.

19592R1

HARDWARE,1/4"-20, GB

NUT, 1/4-20 nylon insert

1шт.

533444R1

WASHER

speedometer shaft

1шт.

8

190016

WOODRUFF KEY,#207, 3/32" x 5/16", HT

KEY, 3/32 x 5/16 Woodruff 207

1шт.

9

406157R1

GEAR

speedometer driven, 11T

1шт.

9

406156R1

GEAR

speedometer driven, 12T, tractors equipped w/23.1-26 R1, 23.1-26 R2, 23.1-26 R4, 18.4-30 R1, 18.4-30 R2, 23.1-30 R1, 23.1-30 R4, 16.9-34 R1, 18.4-34 R1, 13.6-38 R1, 14.9-38 R1, 15.5-38 R1, 15.5-38 R2 and 16.9-38 R1 rear tires

1шт.

9

528667R1

GEAR, speedometer driven, 13T, Farmall hi-clear tractors

1шт.

10

406021R1

GEAR, speedometer drive, 39T, on LH differential case

1шт.

10

528666R1

GEAR, speedometer drive, 26T, on LH differential case, Farmall hi-clear tractors

1шт.
