(07-12[A]) - DRIVE TRAIN, HYDRAULIC PUMP, 4.5 GPM, THOMPSON

Запчасти Case IH 21026 (07-12[A]) - DRIVE TRAIN, HYDRAULIC PUMP, 4.5 GPM, THOMPSON (04) - Drive Train

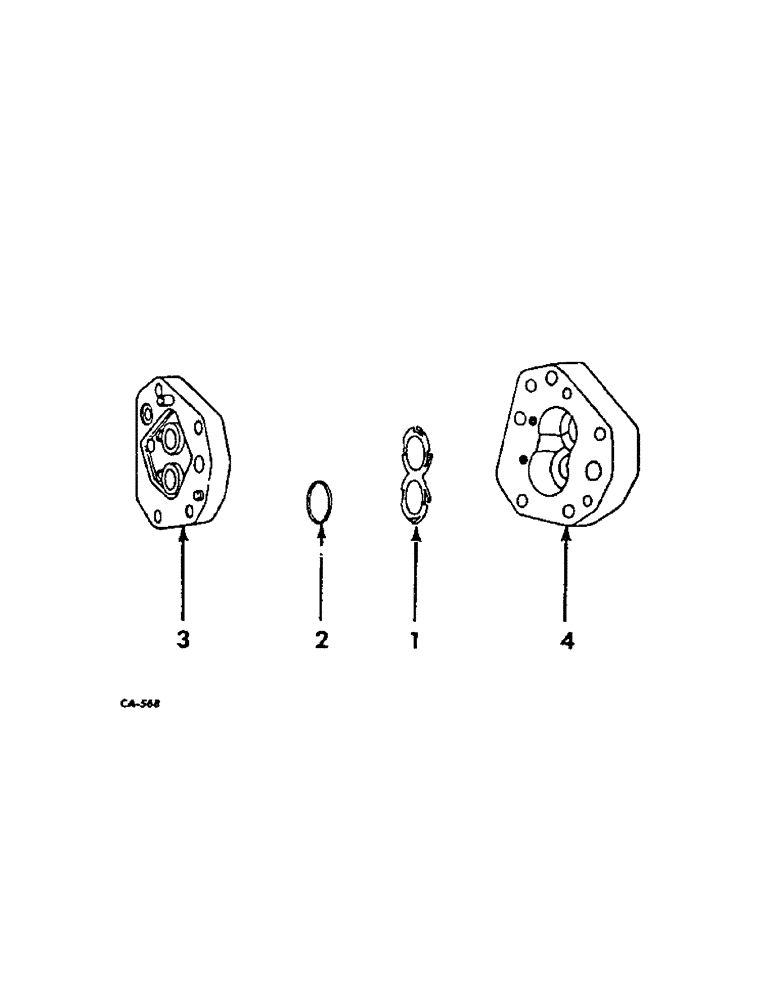

Схема запчастей Case IH 21026 - (07-12[A]) - DRIVE TRAIN, HYDRAULIC PUMP, 4.5 GPM, THOMPSON (04) - Drive Train
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

371531R1

SPRING, pressure plate

1шт.

2

373182R1

RETAINER

pressure bearing o-ring

2шт.

3

COVER ASSY, pump, order pump assy, 378865R92

1шт.

4

BODY ASSY, pump, order pump assy, 378865R92

1шт.

371542R92

PACKAGE, hydraulic pump o-ring, consists of (1) gasket 371543R2, (2) o-ring 253070R1 (NSS), (2) o-ring 364879R1 (NSS), (2) o-ring 371544R1 (NSS), (1) o-ring 371545R1 (NSS), (2) washer 368635R1 (NSS)

1шт.
