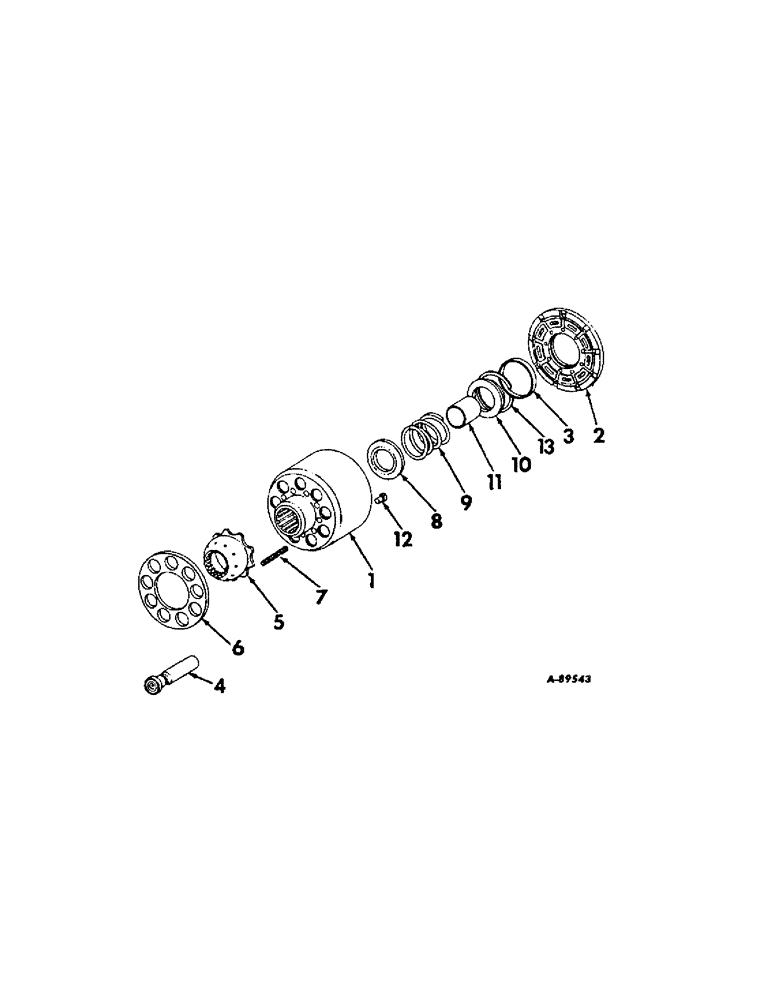

Запчасти Case IH 21026 (07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT, HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

1

527637R1

BODY

BLOCK ASSY, cylinder

1шт.

2

527638R1

PLATE ASSY.

PLATE, bearing

1шт.

3

527639R1

GUIDE

PILOT, bearing plate

1шт.

4

538707R1

PISTON

ASSY

9шт.

5

527641R1

GUIDE

slipper retainer

1шт.

6

527642R1

LARGE PLATE

RETAINER, slipper

1шт.

7

527643R1

VALVE SPRING

SPRING, slipper retainer guide

9шт.

8

527644R1

SEAT

spring

1шт.

9

527645R1

SPRING

cylinder block

1шт.

10

527646R1

RETAINER

spring

1шт.

11

527647R1

GUIDE

spring

1шт.

12

527648R1

PIN

piston cylinder

1шт.

13

22811R1

WASHER

RING, internal retaining

1шт.
