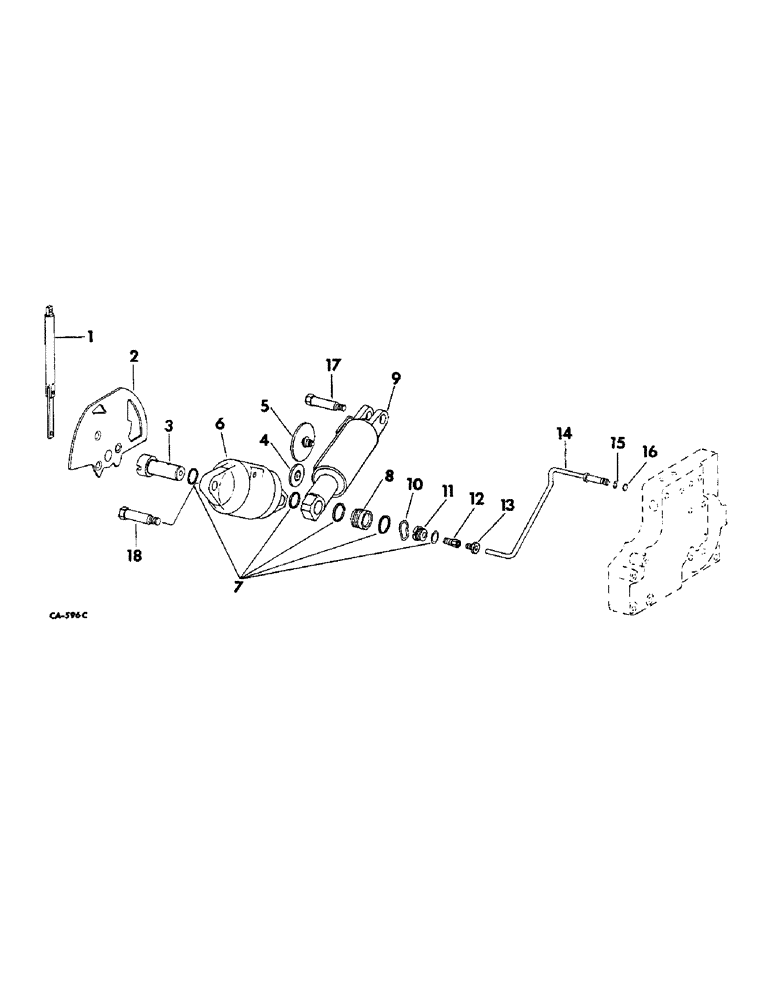

Запчасти Case IH 21026 (07-05) - DRIVE TRAIN, HYDROSTATIC SERVO CYLINDERS AND CONNECTIONS (04) - Drive Train

1

406707R1

ROD

ASSY, cam actuating

1шт.

2

406704R2

CAM

ASSY, control

1шт.

20262R1

PIN, 3/8 x 2-3/4 dowel, control cam stop 3/8" x 2 3/4"

1шт.

21222R1

LOCK NUT,1/4"-20, GB

NUT, 1/4-20 nylon insert

3шт.

148107

SCREW, 1/4-20 x 1/2 cr-rec-f-hd mach

1шт.

147723

SCREW, 1/4-20 x 3/4 cr-rec-f-hd mach

2шт.

3

406656R1

SHAFT

control cyl anchor

1шт.

22773R1

PIN

1/4 x 2-3/16 rod end control cyl anchor shaft ret

1шт.

4

406394R31

PLUG

W/RING, 396109R1, motor orifice

1шт.

5

406393R91

PLUG

W/RING, 396109R1 & washer, 403989R1, pump orifice

1шт.

6

CYLINDER ASSY, motor servo, for components see list of parts under details of motor servo pump listing, this section

1шт.

7

529432R91

SEAL KIT

PACKAGE ANCHOR SHAFT SEAL, consist of, (3) ring 406657R1 (NSS), (1) ring 406659R1 (NSS), (1) o-ring 383024R1 (NSS)

1шт.

8

406658R1

RING

BUSHING, anchor shaft motor support

1шт.

9

CYLINDER ASSY, pump servo, for components see list of parts under details of pump servo cylinder listing, this section

1шт.

10

406660R1

SPRING WASHER

wavy spring

1шт.

11

396124R1

FITTING

servo charge tube

1шт.

12

40755D

HYD CONNECTOR,1/4" NPT x 1/2"-20

CONNECTOR, 1/2-20 hi-duty tube

1шт.

13

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

14

406661R1

TUBE

ASSY, servo charge

1шт.

15

971043R1

SNAP RING,#50, Ext

1шт.

16

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.

17

396118R1

BOLT,Shldr, Hex, 7/16" - 14 x 2.83"

7/16-14 x 2-1/8 hex-hd shoulder

1шт.

18

406655R1

BOLT,Shldr, Hex, 1/2" - 13 x 2"

BOLT, 1/2-13 x 2 hex-hd shoulder

1шт.
