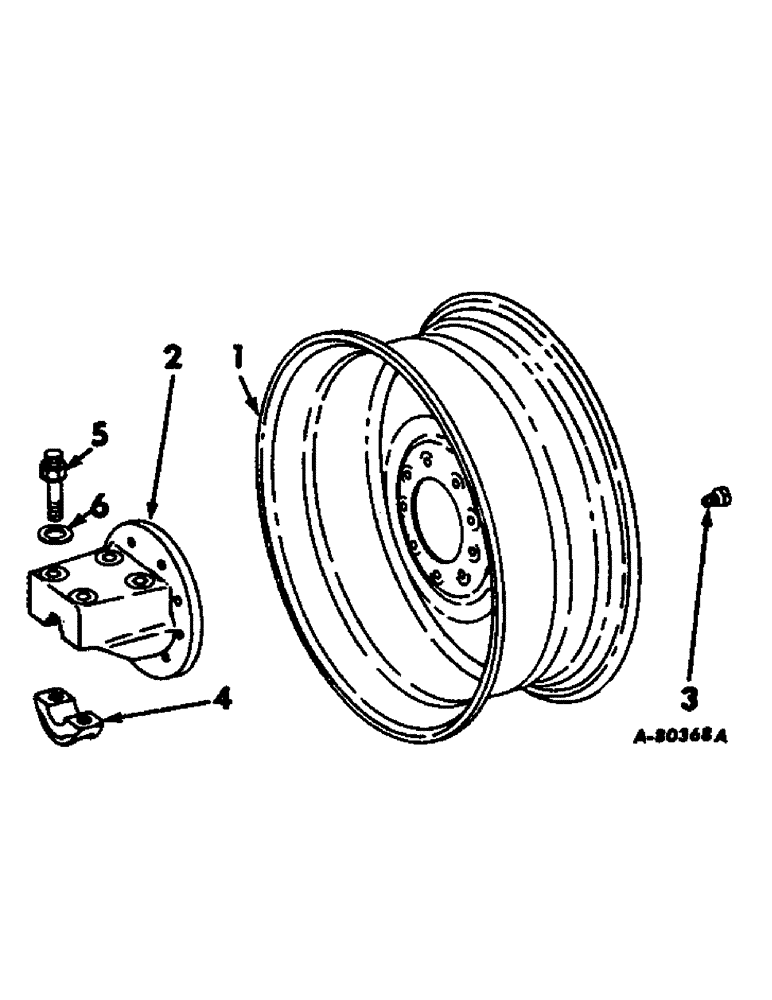

Запчасти Case IH 21026 (15-08) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS, DISC TYPE Wheels & Traction

1

387923R92

RIM

WHEEL ASSY, disc type rear, W14L-38 rim for 15.5-38 tired , Farmall tractors

2шт.

1

387924R92

WHEEL

ASSY, disc type rear, W12-38 rim for 13.6-38 or 14.9-38 tires, Farmall tractors

2шт.

1

391057R93

WHEEL

ASSY, disc type rear, W15L-34 rim for 16.9-34 or 18.4-34 tire, 5.47 in. offset

2шт.

1

528724R1

WHEEL ASSY, disc type rear, W15L-34 rim for 16.9-34 or 18.4-34 tire 8.88 in. offset

2шт.

1

400880R1

WHEEL

ASSY, disc type rear, W16L-38 rim for 16.9-38 or 18.4-38 tires, 5.9 in. offset

2шт.

1

400879R2

WHEEL

ASSY, disc type rear, W16L-38 rim for 16.9-38 or 18.4-38 tires, 10.7 in. offset

2шт.

1

391006R91

WHEEL W/PLUG, 383697R1, disc type rear , W16L-30 rim for 18.4-30 tire, International tractors

2шт.

2

387925R1

HUB

outer dual rear wheel

2шт.

3

375110R1

BOLT,5/8" - 18 x 1 3/8"

rear wheel mounting, used only with wheels, 387923R92, 387924R92 & 391057R93

18шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting, used only with wheels, 390006R91, 400879R2, 400880R1 and 528724R1

18шт.

4

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

5

385784R11

STUD

STUD ASSY, rear wheel hub clamp

8шт.

6

384697R1

WASHER

rear wheel hub clamp stud

8шт.

389900R91

PARTS ACCESSORY, W12-38 outer dual rear wheel, Farmall tractors, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 387924R92

2шт.

For tractors with cab, also order two axles, 391977R2 for proper tire to cab clearance.

1шт.

389901R91

PARTS ACCESSORY, W14L-38 outer dual rear wheel, Farmall tractors, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 387923R92

2шт.

For tractors with cab, also order two axles, 391977R2 for proper tire to cab clearance.

1шт.

391058R91

PARTS ACCESSORY, outer dual rear wheel, W15L-34 rim w/5.47 in. offset, consists of (9) bolt 375110R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 391057R93

2шт.

For tractors with cab, also order two axles, 391977R2 for proper tire to cab clearance.

1шт.

393182R91

PARTS ACCESSORY, outer dual rear wheel, W15L-34 rim w/8.88 in. offset, consists of (9) bolt 391004R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 528724R1

2шт.

For tractors with cab, also order two axles, 391977R2 for proper tire to cab clearance.

1шт.

392707R92

PARTS ACCESSORY, outer dual rear wheel, W16L-38 rim w/5.9 in. offset, consist of (9) bolt 391004R1, (2) clamp 380863R2, (1) hub 387925R1, 4 stud assy 385784R11, (4) washer 384697R1, (1) wheel 400880R1

2шт.

For tractors with cab, also order two axles, 391977R2 for proper tire to cab clearance.

1шт.

393183R92

PARTS ACCESSORY, outer dual rear wheel, W16L-38 rim w/10.7 in. offset, consists of (9) bolt 39104R1, (2) clamp 380863R2, (1) hub 387925R1, (4) stud assy 385784R11, (4) washer 384697R1, (1) wheel 400879R2

2шт.

For tractors with cab, also order two axles, 391977R2 for proper tire to cab clearance.

1шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

386868R1

WRENCH, extension socket

1шт.
