Запчасти Case IH 21026 (14-07) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE EXTENSION, FARMALL TRACTORS Suspension

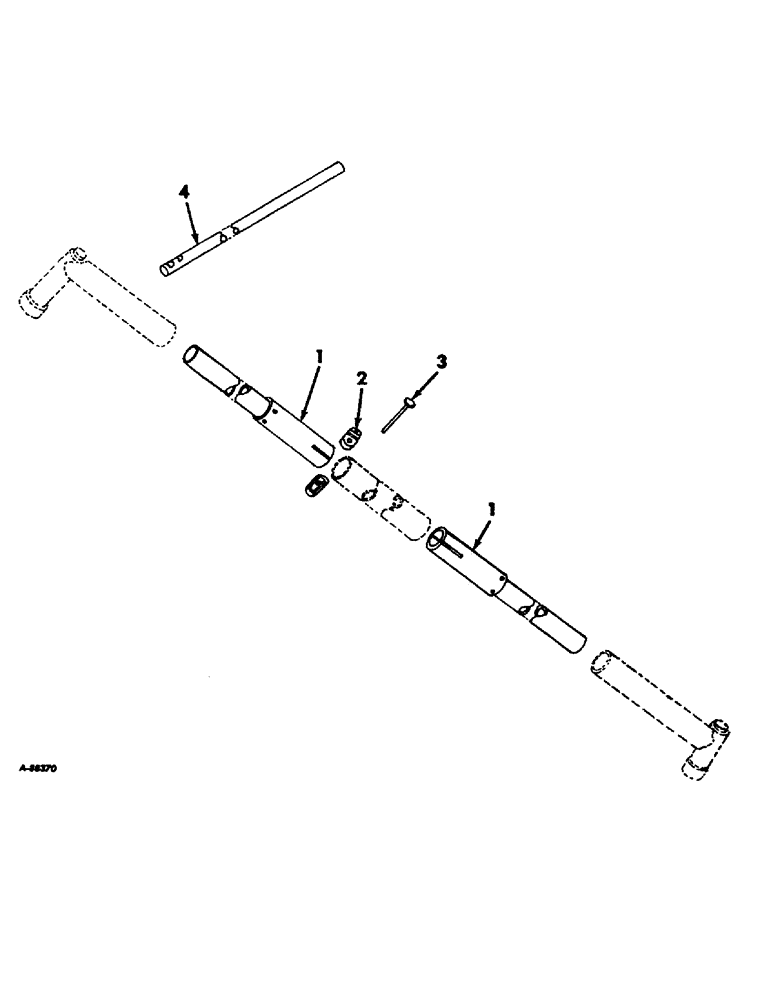

Схема запчастей Case IH 21026 - (14-07) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE EXTENSION, FARMALL TRACTORS Suspension
2
1
4
1
3

Артикул

Название

Примечание

Количество

395284R91

PARTS ACCESSORY, adjustable wide front axle, 114 to 120 in., for tractors equipped w/58 to 82 in. adjustable wide front axle

1шт.

1

395281R1

EXTENSION ASSY, front axle inner

2шт.

2

350556R1

CLAMP

front axle

4шт.

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

3/4-16 x 4-1/4 hex-hd

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

4шт.

3

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

4

395285R1

TUBE,0.948" ID, 1.19" OD

tie rod extension

2шт.

Выбрано товаров: 8
