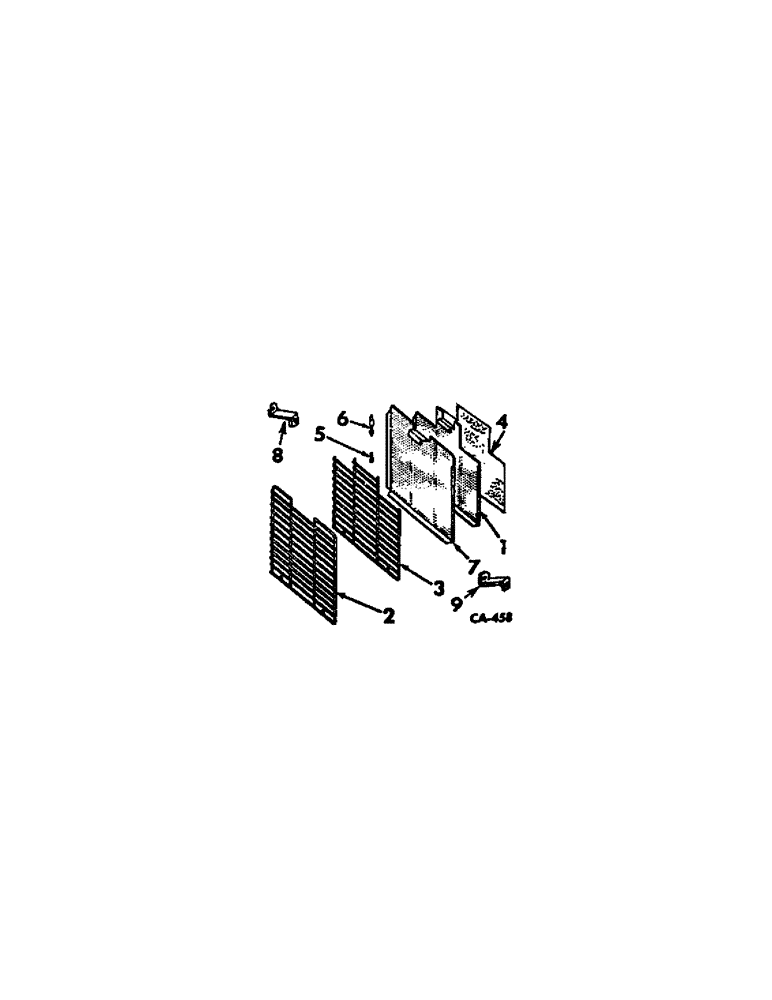

Запчасти Case IH 21026 (06-04[A]) - COOLING, RADIATOR GRILLE AND SCREEN Cooling

1

398647R1

SCREEN, grille, International tractors

1шт.

385631R1

SEAL

grille screen air

1шт.

2

398641R1

GRILLE ASSY, radiator, Farmall tractors & International tractors w/cab

1шт.

399598R1

SPACER, grille support

1шт.

3

398645R1

GRILLE ASSY, radiator, International tractors

1шт.

399598R1

SPACER, grille support

1шт.

4

387745R21

GRILLE ASSY, radiator guard, International 21026 tractors

1шт.

386451R1

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

washer-hd cap

4шт.

5

398639R1

SPRING

grille latch pin

2шт.

19443R1

PIN,5/32" x 5/8", Coiled

2шт.

6

398638R1

PIN

grille latch

2шт.

159992

SCREW, 10-32 x 3/16 C-Z cr-rec pan-hd

2шт.

7

398644R1

GRILLE

SCREEN, grille, Farmall tractors & International tractors w/cab

1шт.

385631R1

SEAL

grille screen air

1шт.

8

533038R1

BRACKET ASSY, radiator guard grille RH, International 21026 tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

9

533037R1

BRACKET ASSY, radiator guard grille LH, International 21026 tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.
